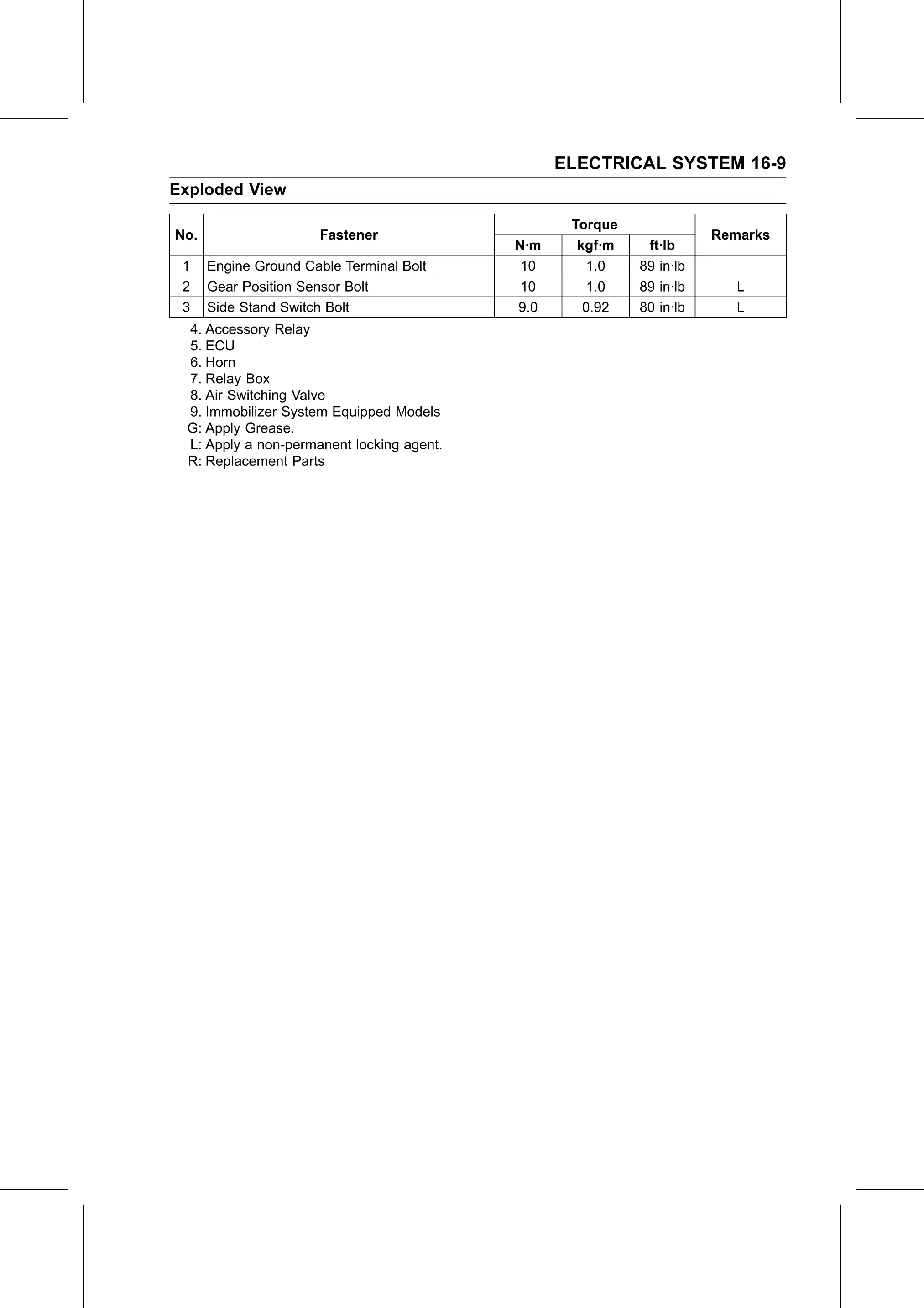

ELECTRICAL SYSTEM 16-9
Exploded View

                                                  Torque
No.                   Fastener                                        Remarks
                                           N·m     kgf·m    ft·lb
 1    Engine Ground Cable Terminal Bolt     10       1.0   89 in·lb
 2    Gear Position Sensor Bolt             10       1.0   89 in·lb      L
 3    Side Stand Switch Bolt               9.0      0.92   80 in·lb      L
 4. Accessory Relay
 5. ECU
 6. Horn
 7. Relay Box
 8. Air Switching Valve
 9. Immobilizer System Equipped Models
 G: Apply Grease.
 L: Apply a non-permanent locking agent.
 R: Replacement Parts
