Electrical System › Wiring Diagram (CA Model)

Service Manual (KLZ1000C) page 502 — Electrical System › Wiring Diagram (CA Model) — Tap the page to zoom. Open the full-size image

Text on this page

16-20 ELECTRICAL SYSTEM

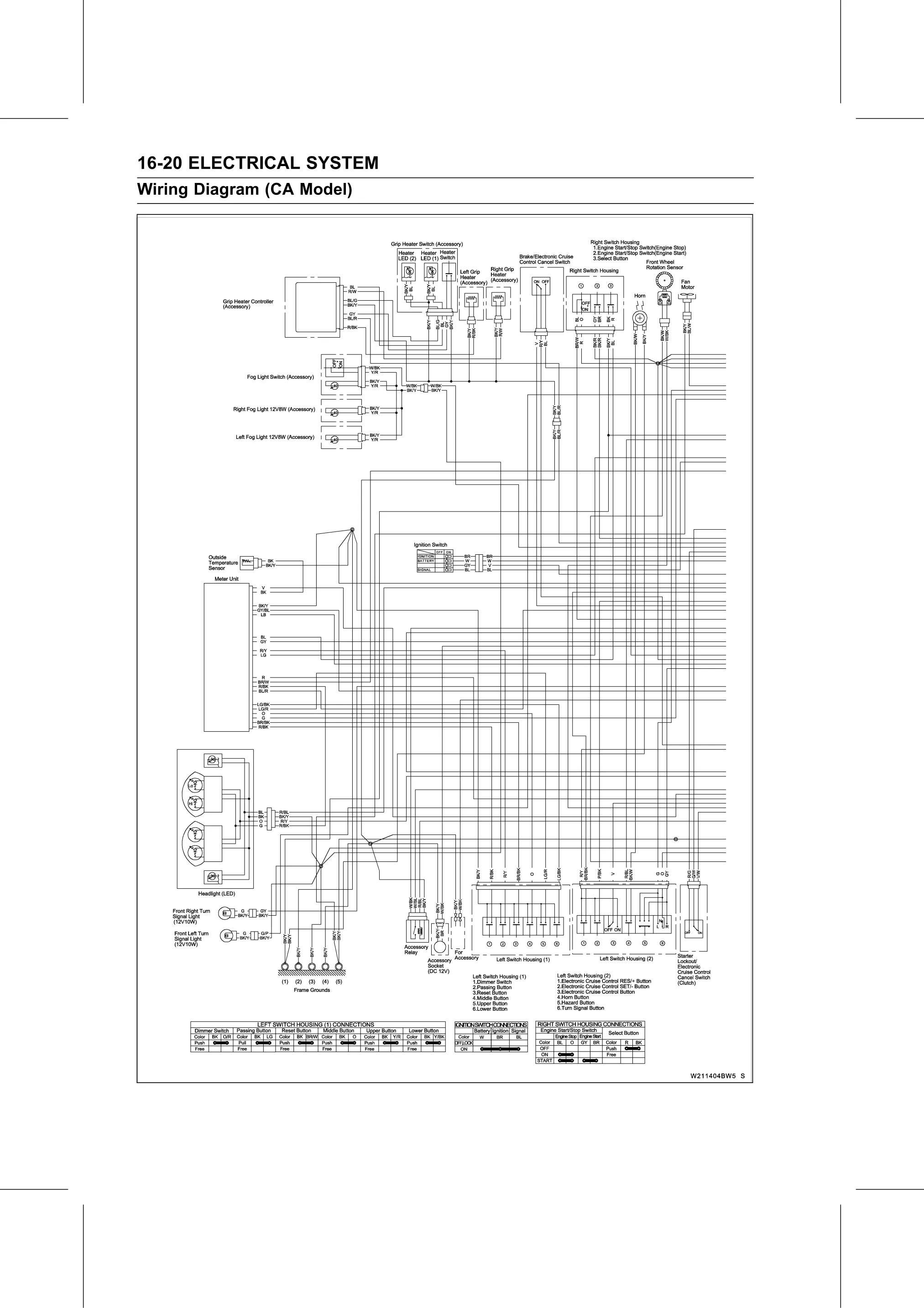

Wiring Diagram (CA Model)
