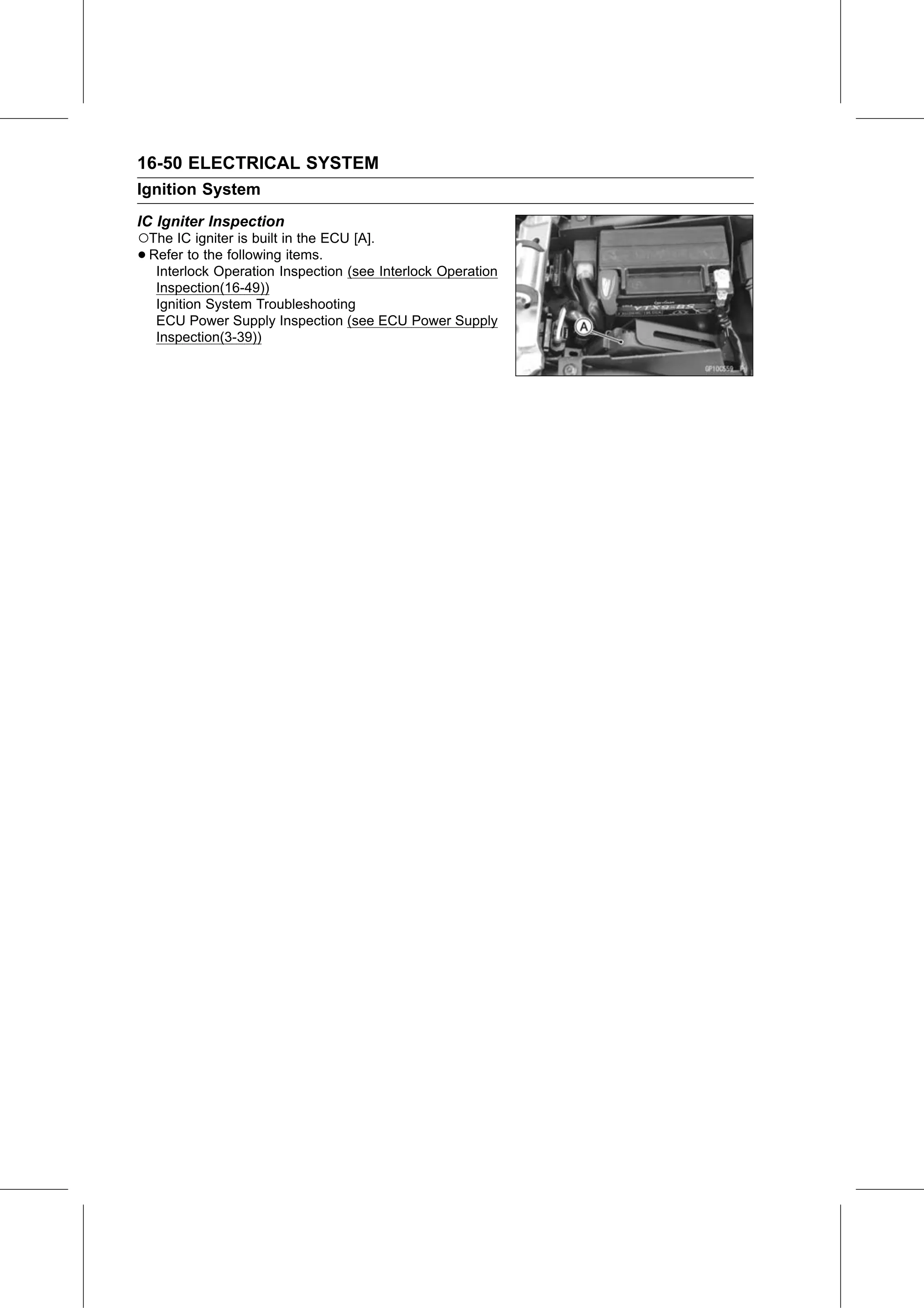

16-50 ELECTRICAL SYSTEM
Ignition System
IC Igniter Inspection
○The IC igniter is built in the ECU [A].
• Refer  to the following items.
   Interlock Operation Inspection (see Interlock Operation
   Inspection(16-49))
   Ignition System Troubleshooting
   ECU Power Supply Inspection (see ECU Power Supply
   Inspection(3-39))
