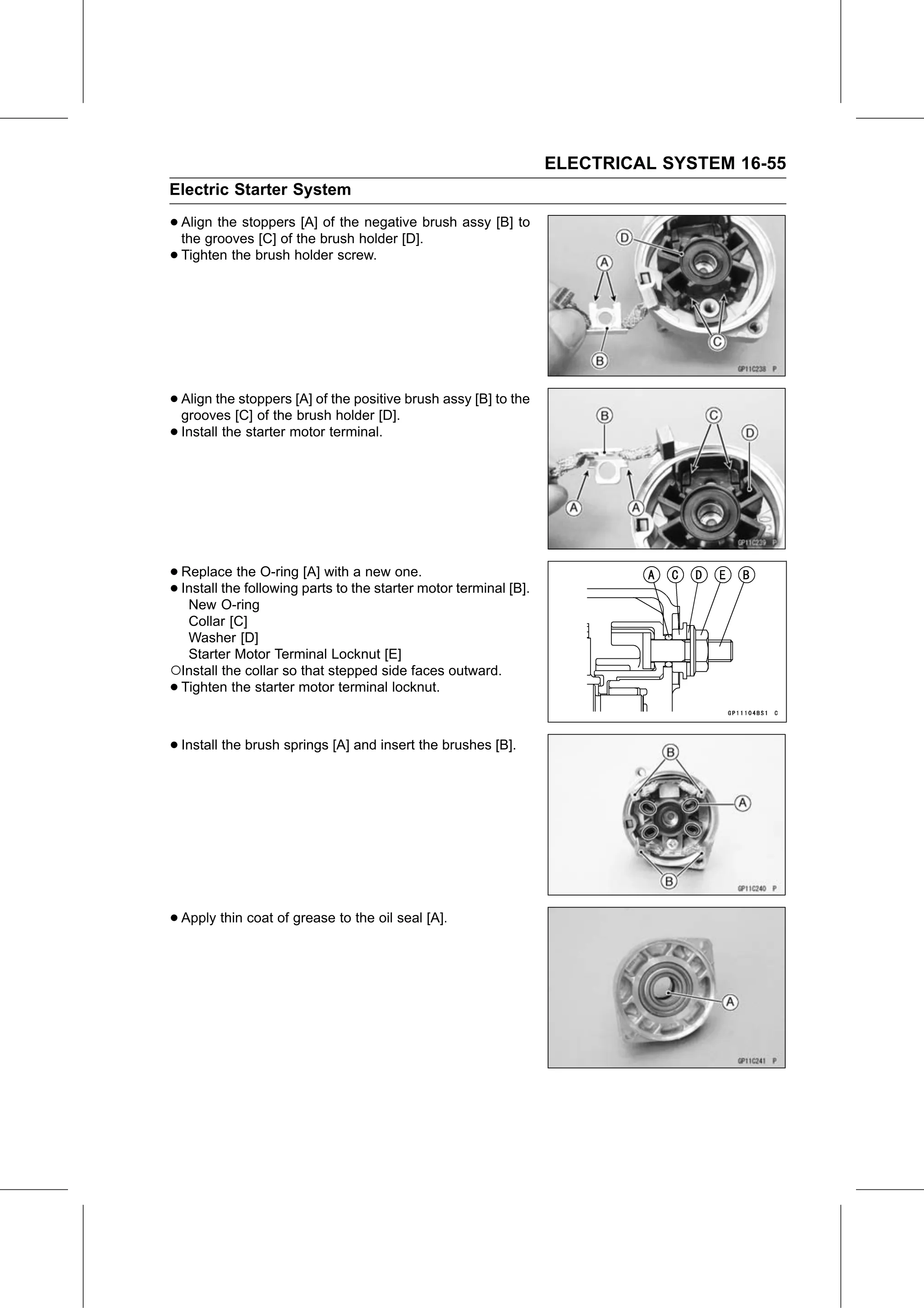

ELECTRICAL SYSTEM 16-55
Electric Starter System

• Align the stoppers [A] of the negative brush assy [B] to
  the grooves [C] of the brush holder [D].
• Tighten the brush holder screw.

• Align the stoppers [A] of the positive brush assy [B] to the
  grooves [C] of the brush holder [D].
• Install the starter motor terminal.

• Replace   the O-ring [A] with a new one.
• New O-ring
  Install the following parts to the starter motor terminal [B].

  Collar [C]
  Washer [D]
  Starter Motor Terminal Locknut [E]
○Install the collar so that stepped side faces outward.
•Tighten the starter motor terminal locknut.

• Install the brush springs [A] and insert the brushes [B].

• Apply thin coat of grease to the oil seal [A].
