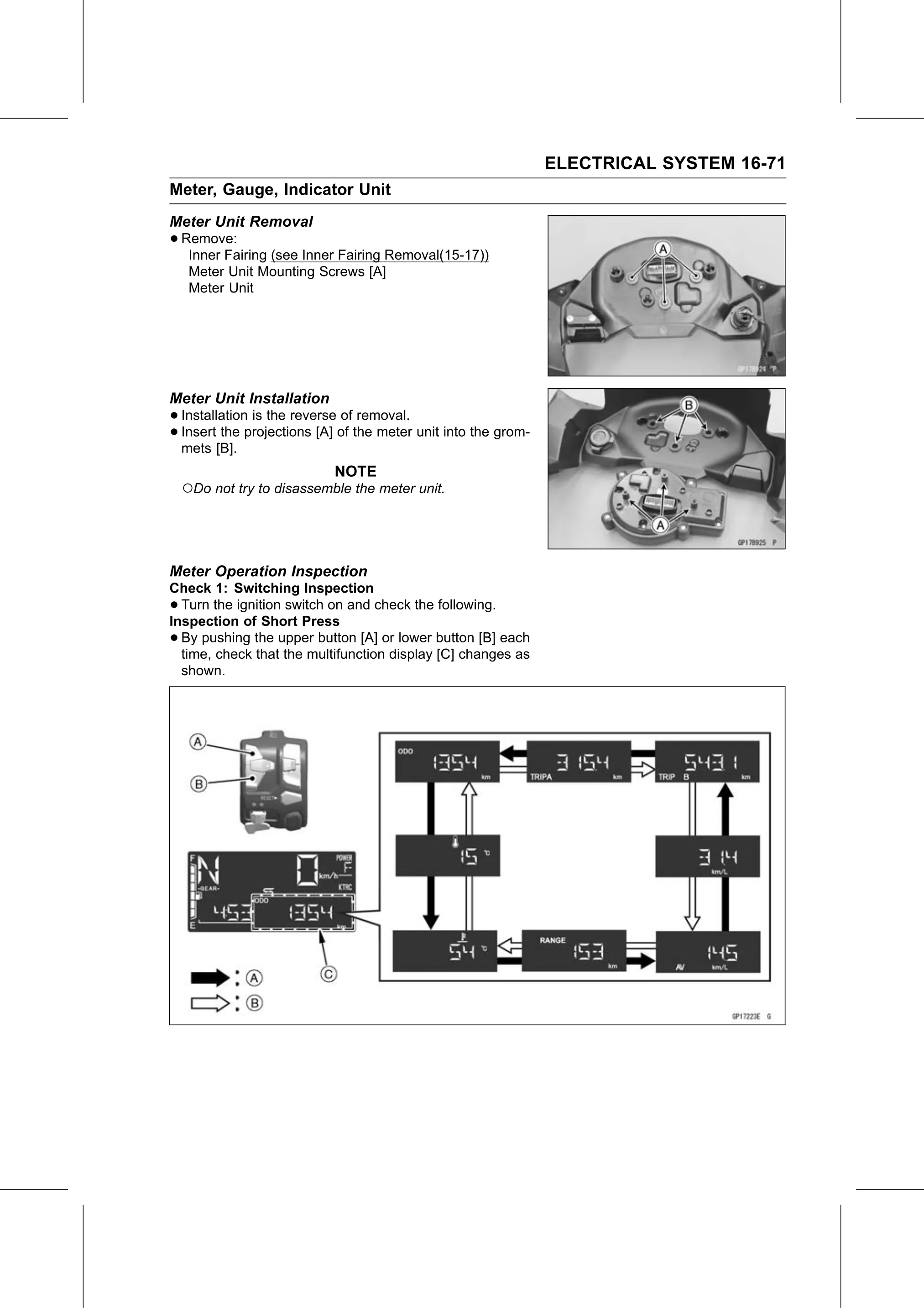

ELECTRICAL SYSTEM 16-71
Meter, Gauge, Indicator Unit
Meter Unit Removal
• Remove:
   Inner Fairing (see Inner Fairing Removal(15-17))
     Meter Unit Mounting Screws [A]
     Meter Unit

Meter Unit Installation
• Installation is the reverse of removal.
• Insert the projections [A] of the meter unit into the grom-
  mets [B].
                            NOTE
    ○Do not try to disassemble the meter unit.

Meter Operation Inspection
Check 1: Switching Inspection
• Turn the ignition switch on and check the following.
Inspection of Short Press
• By pushing the upper button [A] or lower button [B] each
  time, check that the multifunction display [C] changes as
  shown.
