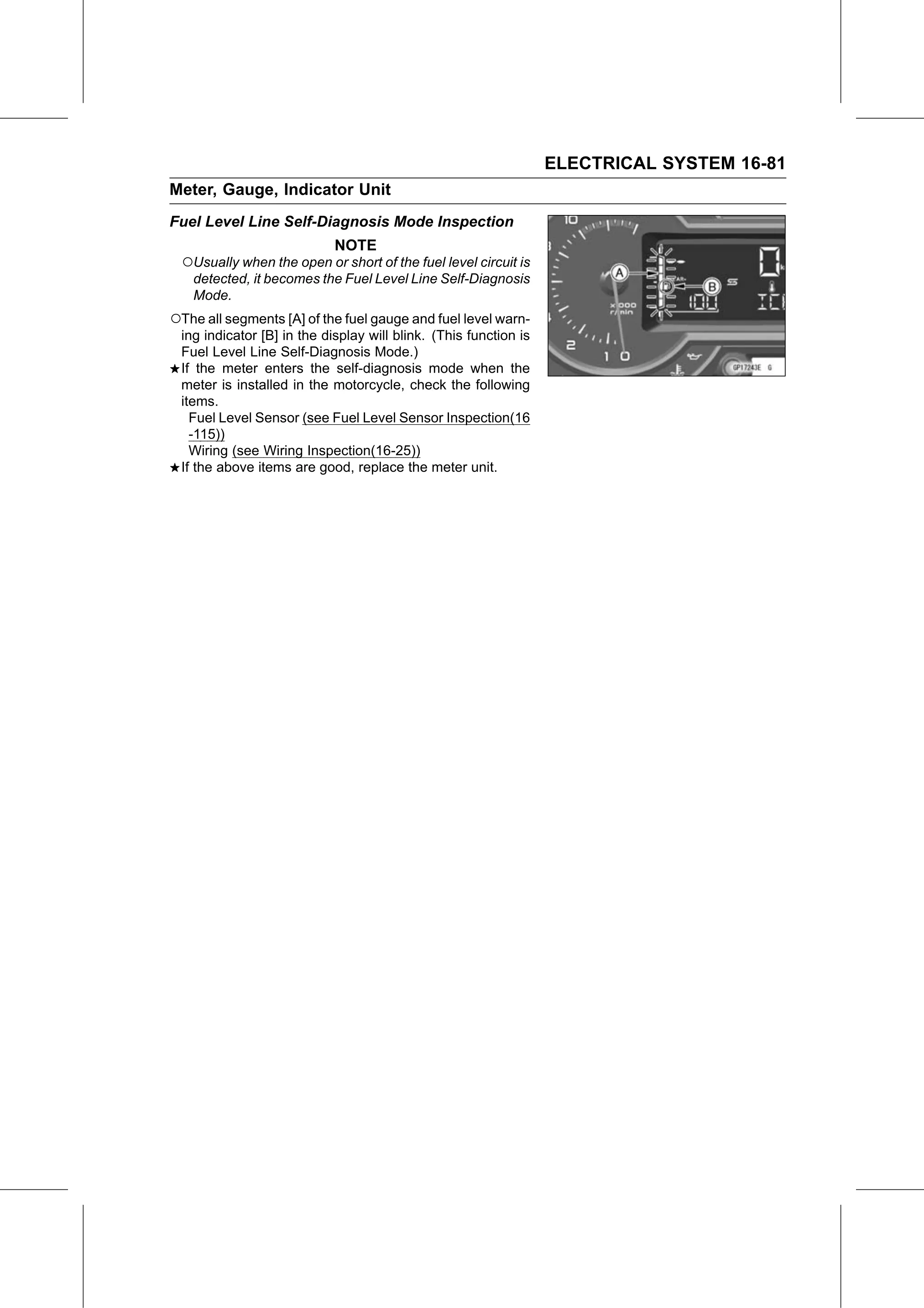

ELECTRICAL SYSTEM 16-81
Meter, Gauge, Indicator Unit
Fuel Level Line Self-Diagnosis Mode Inspection
                            NOTE
 ○Usually when the open or short of the fuel level circuit is
   detected, it becomes the Fuel Level Line Self-Diagnosis
   Mode.
○The all segments [A] of the fuel gauge and fuel level warn-
 ing indicator [B] in the display will blink. (This function is
 Fuel Level Line Self-Diagnosis Mode.)
 If the meter enters the self-diagnosis mode when the
 meter is installed in the motorcycle, check the following
 items.
   Fuel Level Sensor (see Fuel Level Sensor Inspection(16
   -115))
   Wiring (see Wiring Inspection(16-25))
 If the above items are good, replace the meter unit.
