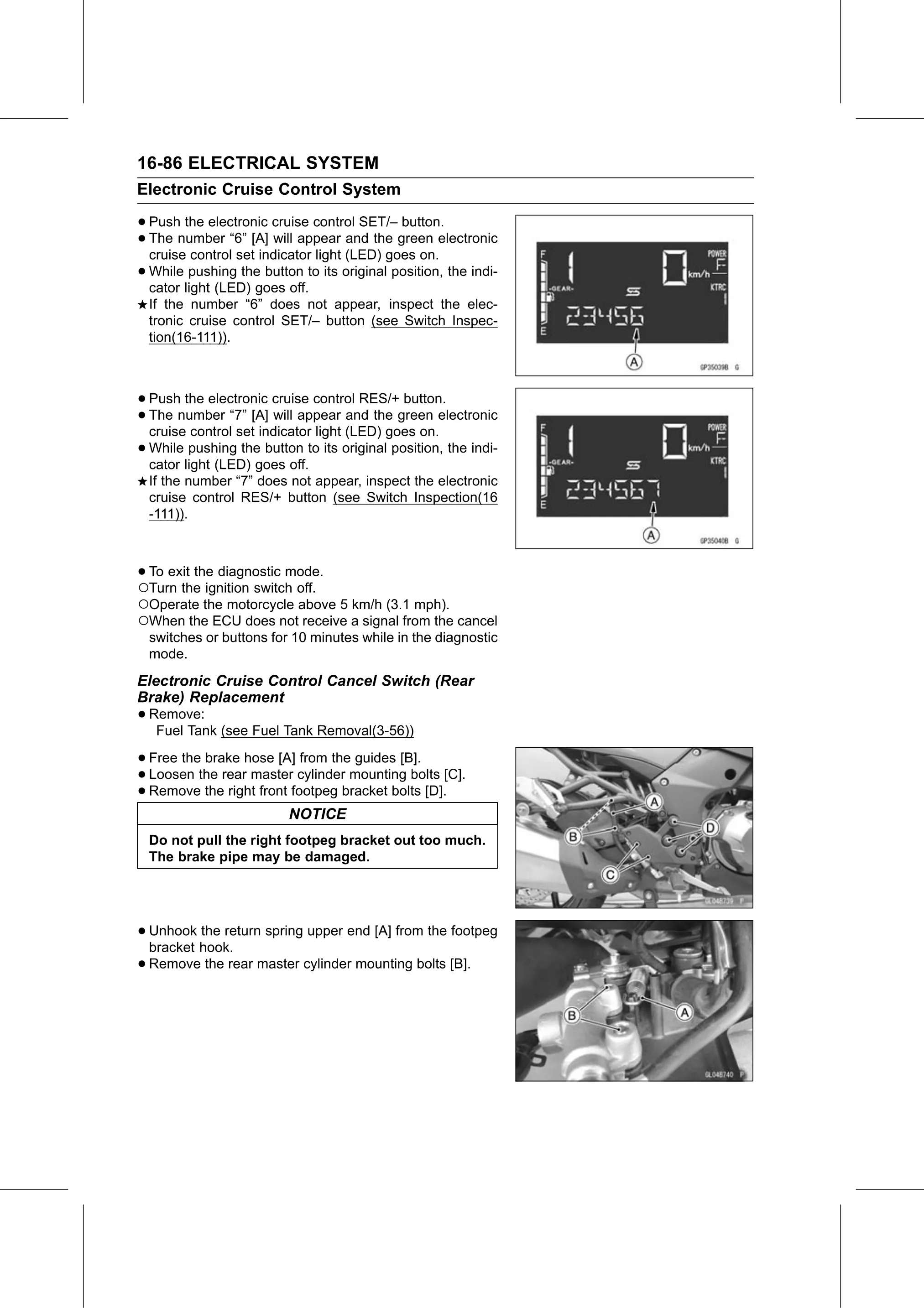

16-86 ELECTRICAL SYSTEM
Electronic Cruise Control System

• Push  the electronic cruise control SET/– button.
• cruise control“6”set[A]indicator
  The  number              will appear and the green electronic
                                   light (LED) goes on.
• cator light (LED) goes off. its original position, the indi-
  While  pushing    the   button to

  If the number “6” does not appear, inspect the elec-
  tronic cruise control SET/– button (see Switch Inspec-
  tion(16-111)).

• Push  the electronic cruise control RES/+ button.
• cruise control“7”set[A]indicator
  The  number              will appear and the green electronic
                                   light (LED) goes on.
• cator light (LED) goes off. its original position, the indi-
  While  pushing    the   button to

  If the number “7” does not appear, inspect the electronic
  cruise control RES/+ button (see Switch Inspection(16
  -111)).

•○To exit the diagnostic mode.
  Turn the ignition switch off.
○Operate the motorcycle above 5 km/h (3.1 mph).
○When the ECU does not receive a signal from the cancel
  switches or buttons for 10 minutes while in the diagnostic
  mode.
Electronic Cruise Control Cancel Switch (Rear
Brake) Replacement
• Remove:
   Fuel Tank (see Fuel Tank Removal(3-56))

• Free the brake hose [A] from the guides [B].
• Removethetherear
  Loosen           master cylinder mounting bolts [C].
•              right front footpeg bracket bolts [D].
                          NOTICE
  Do not pull the right footpeg bracket out too much.
  The brake pipe may be damaged.

• Unhook  the return spring upper end [A] from the footpeg
  bracket hook.
• Remove the rear master cylinder mounting bolts [B].
