16-88 ELECTRICAL SYSTEM
Electronic Cruise Control System

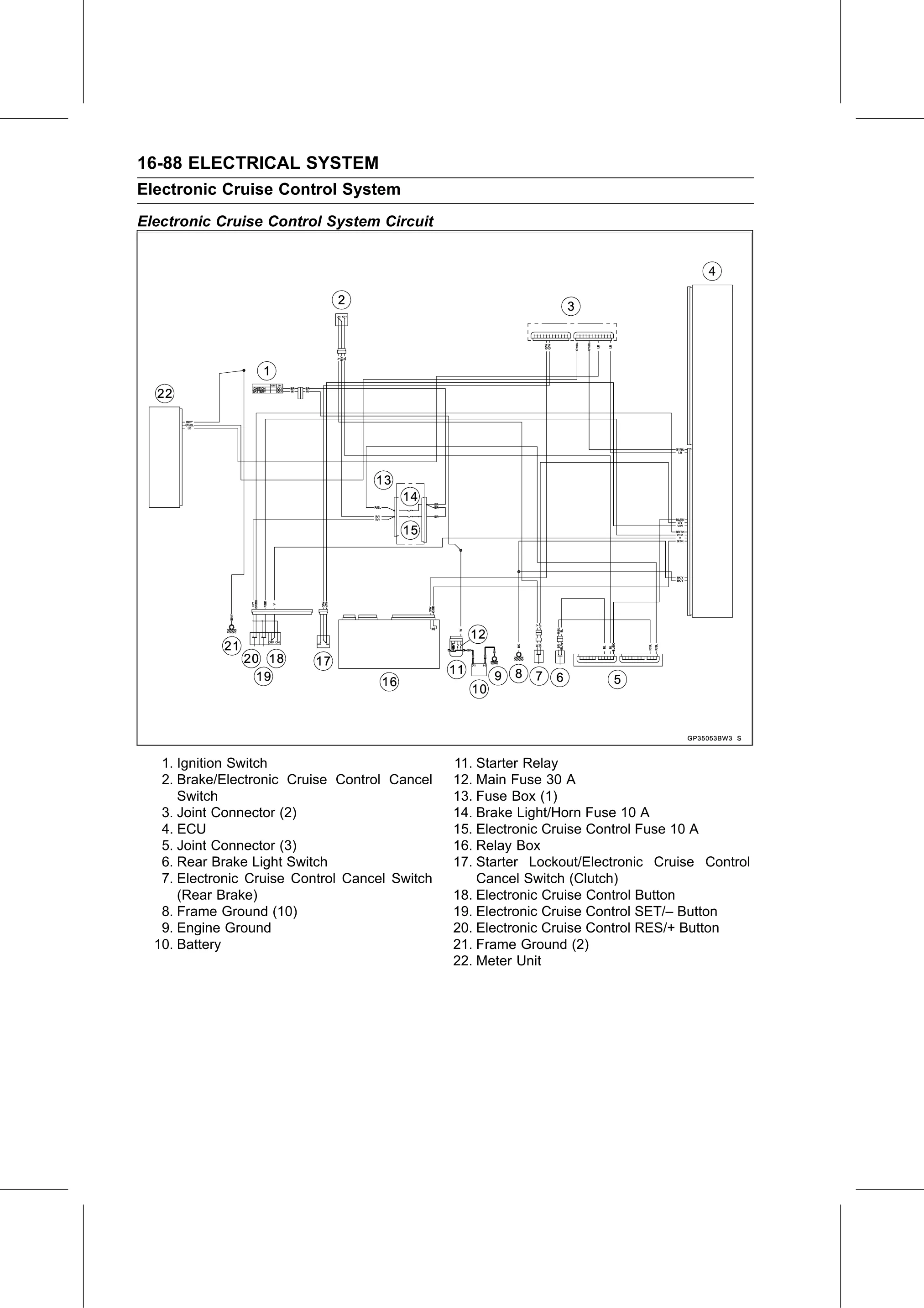

Electronic Cruise Control System Circuit

   1. Ignition Switch                           11. Starter Relay
   2. Brake/Electronic Cruise Control Cancel    12. Main Fuse 30 A
      Switch                                    13. Fuse Box (1)
   3. Joint Connector (2)                       14. Brake Light/Horn Fuse 10 A
   4. ECU                                       15. Electronic Cruise Control Fuse 10 A
   5. Joint Connector (3)                       16. Relay Box
   6. Rear Brake Light Switch                   17. Starter Lockout/Electronic Cruise Control
   7. Electronic Cruise Control Cancel Switch       Cancel Switch (Clutch)
      (Rear Brake)                              18. Electronic Cruise Control Button
   8. Frame Ground (10)                         19. Electronic Cruise Control SET/– Button
   9. Engine Ground                             20. Electronic Cruise Control RES/+ Button
  10. Battery                                   21. Frame Ground (2)
                                                22. Meter Unit
