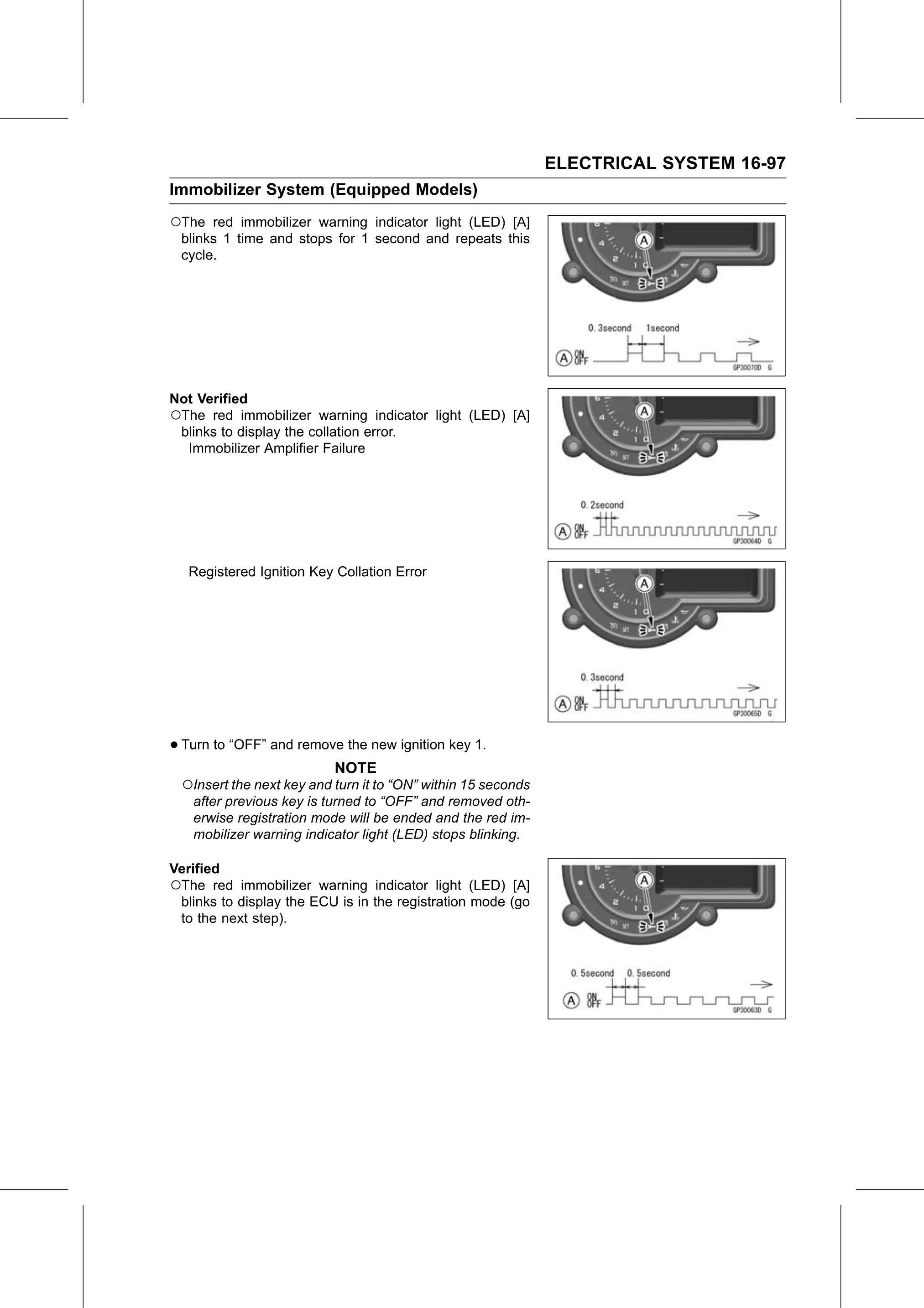

ELECTRICAL SYSTEM 16-97
Immobilizer System (Equipped Models)
○The red immobilizer warning indicator light (LED) [A]
 blinks 1 time and stops for 1 second and repeats this
 cycle.

Not Verified
○The red immobilizer warning indicator light (LED) [A]
 blinks to display the collation error.
  Immobilizer Amplifier Failure

   Registered Ignition Key Collation Error

• Turn to “OFF” and remove the new ignition key 1.
                          NOTE
 ○Insert the next key and turn it to “ON” within 15 seconds
   after previous key is turned to “OFF” and removed oth-
   erwise registration mode will be ended and the red im-
   mobilizer warning indicator light (LED) stops blinking.

Verified
○The red immobilizer warning indicator light (LED) [A]
 blinks to display the ECU is in the registration mode (go
 to the next step).
