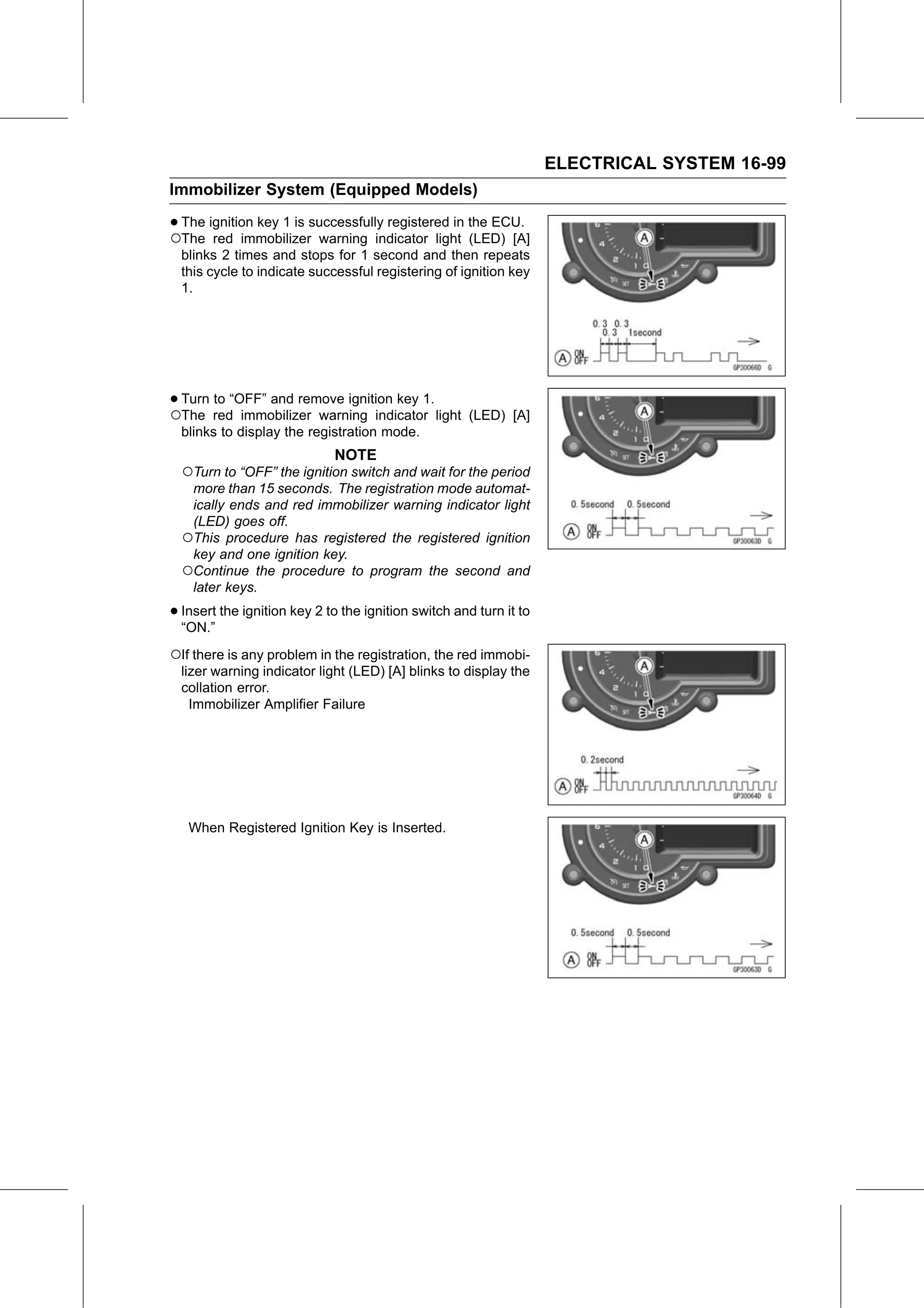

ELECTRICAL SYSTEM 16-99
Immobilizer System (Equipped Models)

•○The ignition key 1 is successfully registered in the ECU.
  The red immobilizer warning indicator light (LED) [A]
  blinks 2 times and stops for 1 second and then repeats
  this cycle to indicate successful registering of ignition key
  1.

•○Turn to “OFF” and remove ignition key 1.
  The red immobilizer warning indicator light (LED) [A]
  blinks to display the registration mode.
                             NOTE
  ○Turn to “OFF” the ignition switch and wait for the period
   more than 15 seconds. The registration mode automat-
   ically ends and red immobilizer warning indicator light
   (LED) goes off.
  ○This procedure has registered the registered ignition
   key and one ignition key.
  ○Continue the procedure to program the second and
   later keys.

• Insert
  “ON.”
         the ignition key 2 to the ignition switch and turn it to

○If there is any problem in the registration, the red immobi-
  lizer warning indicator light (LED) [A] blinks to display the
  collation error.
    Immobilizer Amplifier Failure

   When Registered Ignition Key is Inserted.
