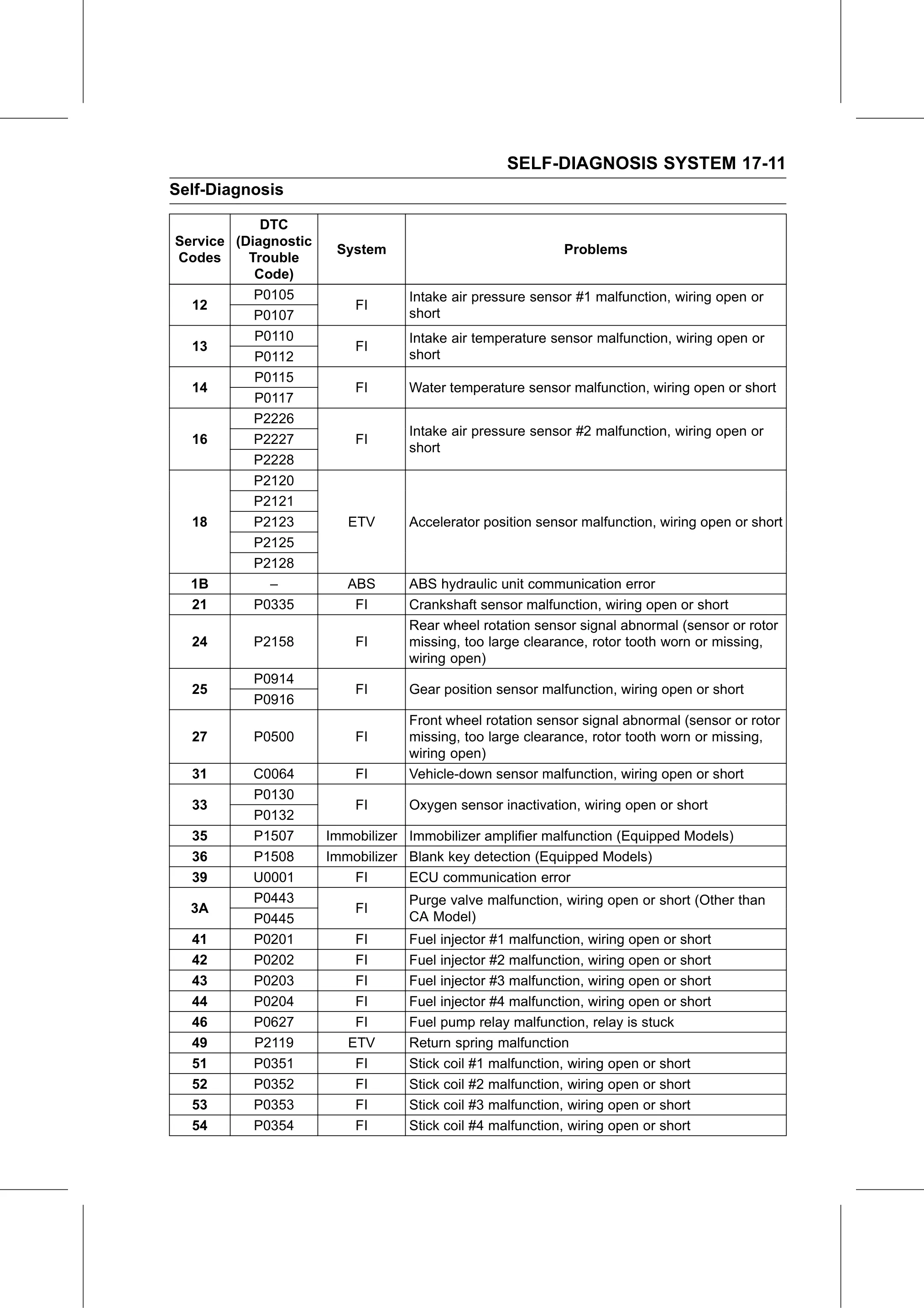

Service Manual (KLZ1000C) — page 613 of 762
Self-Diagnosis System › Service Code Table
Text on this page
SELF-DIAGNOSIS SYSTEM 17-11
Self-Diagnosis
DTC
Service (Diagnostic
System Problems
Codes Trouble
Code)
P0105 Intake air pressure sensor #1 malfunction, wiring open or
12 FI
P0107 short
P0110 Intake air temperature sensor malfunction, wiring open or
13 FI
P0112 short
P0115
14 FI Water temperature sensor malfunction, wiring open or short
P0117
P2226
Intake air pressure sensor #2 malfunction, wiring open or
16 P2227 FI
short
P2228
P2120
P2121
18 P2123 ETV Accelerator position sensor malfunction, wiring open or short
P2125
P2128
1B – ABS ABS hydraulic unit communication error
21 P0335 FI Crankshaft sensor malfunction, wiring open or short
Rear wheel rotation sensor signal abnormal (sensor or rotor
24 P2158 FI missing, too large clearance, rotor tooth worn or missing,
wiring open)
P0914
25 FI Gear position sensor malfunction, wiring open or short
P0916
Front wheel rotation sensor signal abnormal (sensor or rotor
27 P0500 FI missing, too large clearance, rotor tooth worn or missing,
wiring open)
31 C0064 FI Vehicle-down sensor malfunction, wiring open or short
P0130
33 FI Oxygen sensor inactivation, wiring open or short
P0132
35 P1507 Immobilizer Immobilizer amplifier malfunction (Equipped Models)
36 P1508 Immobilizer Blank key detection (Equipped Models)
39 U0001 FI ECU communication error
P0443 Purge valve malfunction, wiring open or short (Other than
3A FI
P0445 CA Model)
41 P0201 FI Fuel injector #1 malfunction, wiring open or short
42 P0202 FI Fuel injector #2 malfunction, wiring open or short
43 P0203 FI Fuel injector #3 malfunction, wiring open or short
44 P0204 FI Fuel injector #4 malfunction, wiring open or short
46 P0627 FI Fuel pump relay malfunction, relay is stuck
49 P2119 ETV Return spring malfunction
51 P0351 FI Stick coil #1 malfunction, wiring open or short
52 P0352 FI Stick coil #2 malfunction, wiring open or short
53 P0353 FI Stick coil #3 malfunction, wiring open or short
54 P0354 FI Stick coil #4 malfunction, wiring open or short
