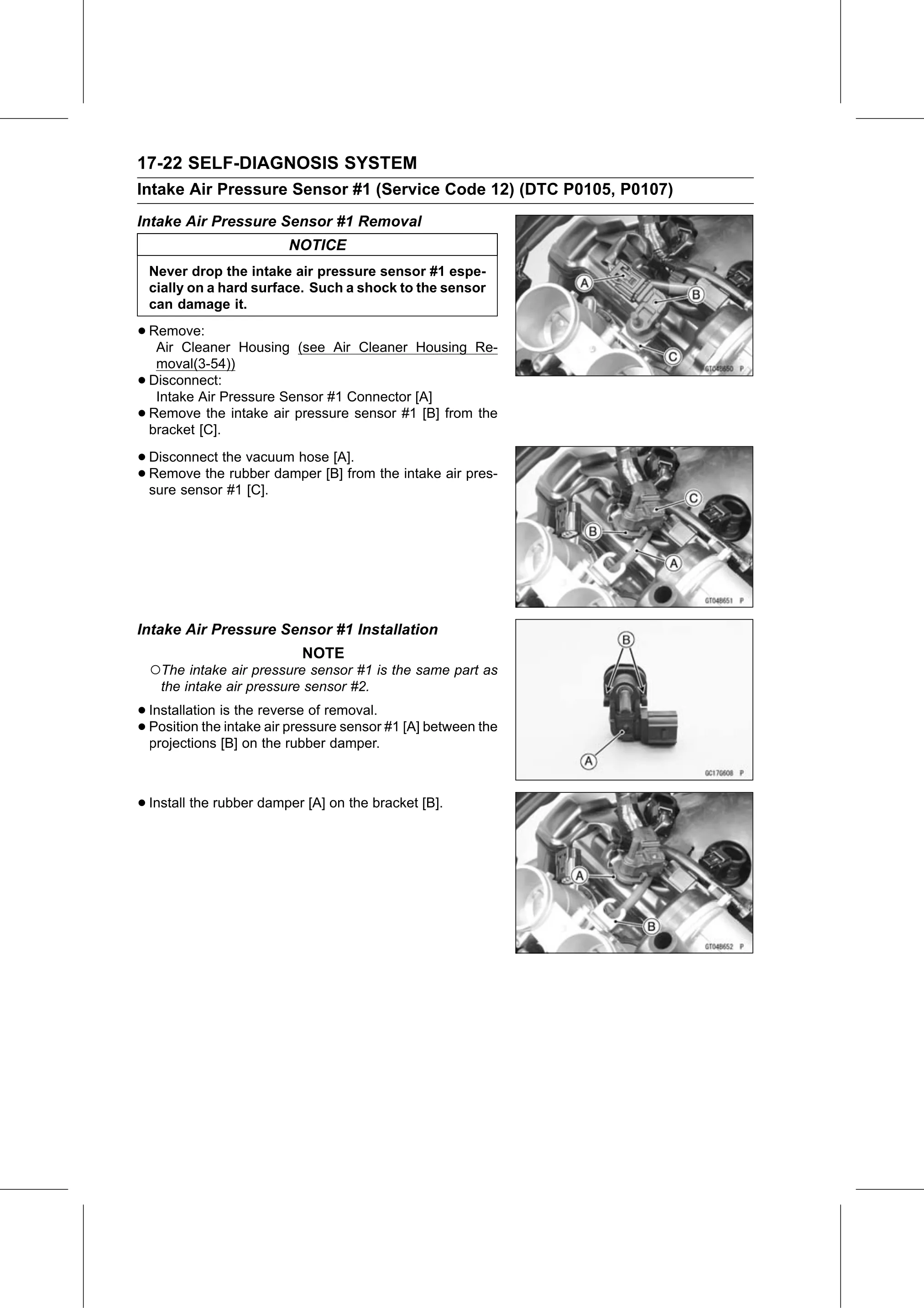

17-22 SELF-DIAGNOSIS SYSTEM
Intake Air Pressure Sensor #1 (Service Code 12) (DTC P0105, P0107)
Intake Air Pressure Sensor #1 Removal
                         NOTICE
    Never drop the intake air pressure sensor #1 espe-
    cially on a hard surface. Such a shock to the sensor
    can damage it.

• Remove:
   Air Cleaner Housing (see Air Cleaner Housing Re-
     moval(3-54))
•   Disconnect:
     Intake Air Pressure Sensor #1 Connector [A]
•   Remove the intake air pressure sensor #1 [B] from the
    bracket [C].

• Disconnect the vacuum hose [A].
• sure sensor #1rubber
  Remove  the
                   [C].
                        damper [B] from the intake air pres-

Intake Air Pressure Sensor #1 Installation
                            NOTE
    ○The intake air pressure sensor #1 is the same part as
     the intake air pressure sensor #2.

• Installation is the reverse of removal.
• projections [B]
  Position  the intake air pressure sensor #1 [A] between the
                    on the rubber damper.

• Install the rubber damper [A] on the bracket [B].
