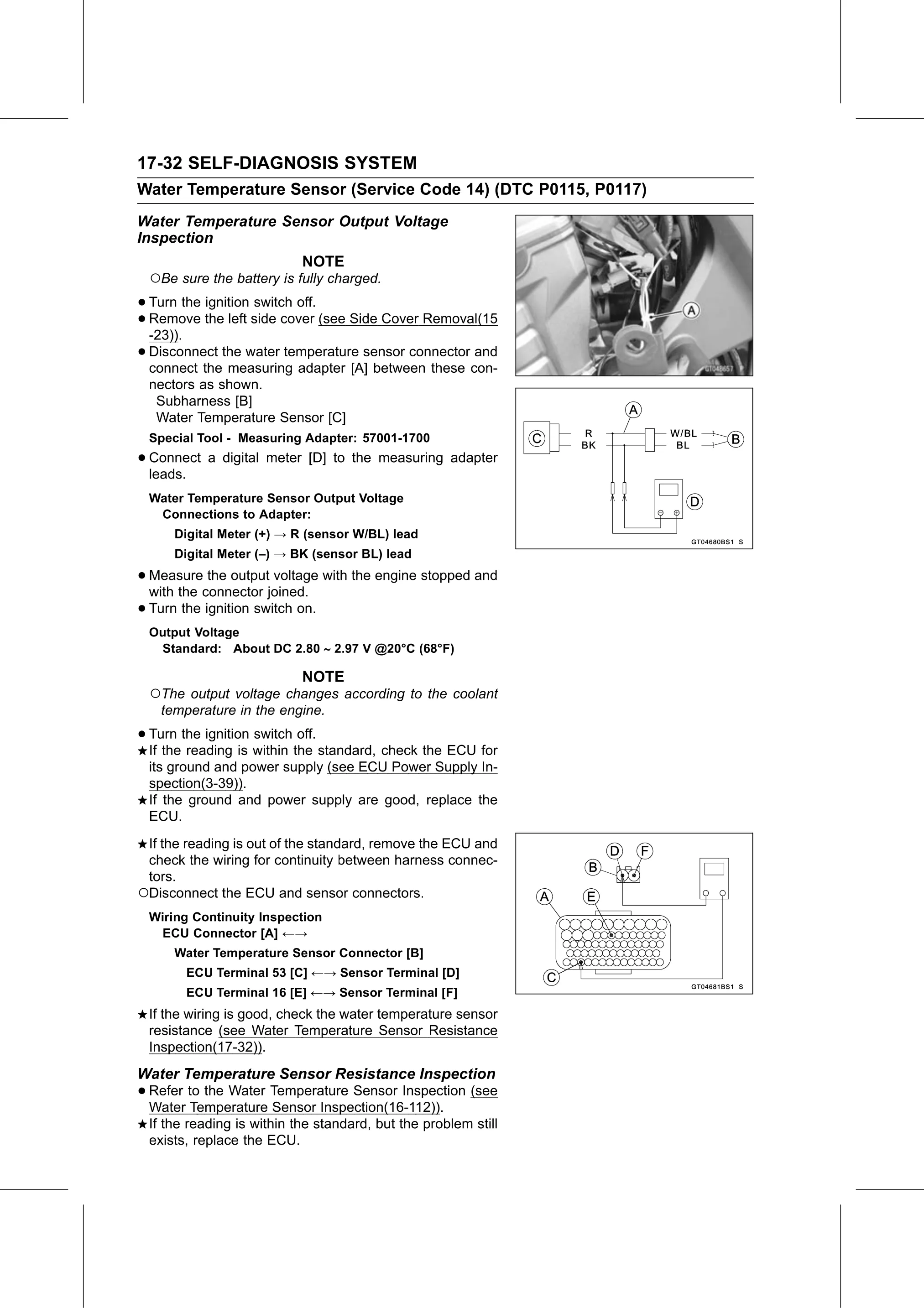

17-32 SELF-DIAGNOSIS SYSTEM
Water Temperature Sensor (Service Code 14) (DTC P0115, P0117)
Water Temperature Sensor Output Voltage
Inspection
NOTE
○Be sure the battery is fully charged.
• Turn the ignition switch off.
• -23)). the left side cover (see Side Cover Removal(15
Remove
• Disconnect the water temperature sensor connector and
connect the measuring adapter [A] between these con-
nectors as shown.
Subharness [B]
Water Temperature Sensor [C]
Special Tool - Measuring Adapter: 57001-1700
• Connect
leads.
a digital meter [D] to the measuring adapter
Water Temperature Sensor Output Voltage
Connections to Adapter:
Digital Meter (+) → R (sensor W/BL) lead
Digital Meter (–) → BK (sensor BL) lead
• Measure the output voltage with the engine stopped and
with the connector joined.
• Turn the ignition switch on.
Output Voltage
Standard: About DC 2.80 2.97 V @20°C (68°F)
NOTE
○The output voltage changes according to the coolant
temperature in the engine.
• Turn the ignition switch off.
If the reading is within the standard, check the ECU for
its ground and power supply (see ECU Power Supply In-
spection(3-39)).
If the ground and power supply are good, replace the
ECU.
If the reading is out of the standard, remove the ECU and
check the wiring for continuity between harness connec-
tors.
○Disconnect the ECU and sensor connectors.
Wiring Continuity Inspection
ECU Connector [A] ←→
Water Temperature Sensor Connector [B]
ECU Terminal 53 [C] ←→ Sensor Terminal [D]
ECU Terminal 16 [E] ←→ Sensor Terminal [F]
If the wiring is good, check the water temperature sensor
resistance (see Water Temperature Sensor Resistance
Inspection(17-32)).
Water Temperature Sensor Resistance Inspection
• Refer to the Water Temperature Sensor Inspection (see
Water Temperature Sensor Inspection(16-112)).
If the reading is within the standard, but the problem still
exists, replace the ECU.
