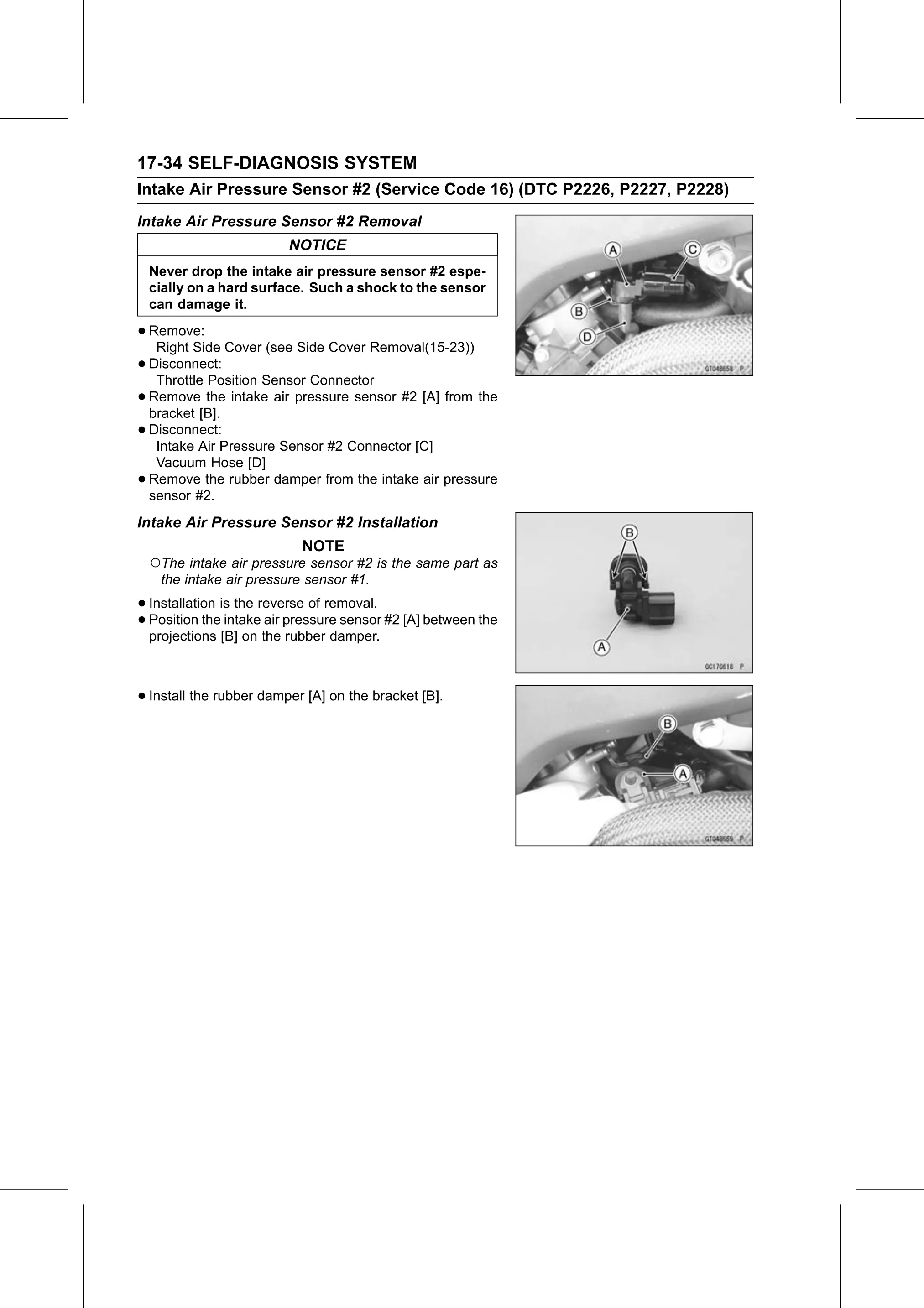

17-34 SELF-DIAGNOSIS SYSTEM
Intake Air Pressure Sensor #2 (Service Code 16) (DTC P2226, P2227, P2228)
Intake Air Pressure Sensor #2 Removal
                         NOTICE
    Never drop the intake air pressure sensor #2 espe-
    cially on a hard surface. Such a shock to the sensor
    can damage it.

• Remove:
   Right Side Cover (see Side Cover Removal(15-23))
• Throttle Position Sensor Connector
  Disconnect:

• Remove   the intake air pressure sensor #2 [A] from the
  bracket [B].
• Disconnect:
   Intake Air Pressure Sensor #2 Connector [C]
     Vacuum Hose [D]
•   Remove the rubber damper from the intake air pressure
    sensor #2.
Intake Air Pressure Sensor #2 Installation
                           NOTE
    ○The intake air pressure sensor #2 is the same part as
     the intake air pressure sensor #1.

• Installation is the reverse of removal.
• Position  the intake air pressure sensor #2 [A] between the
  projections [B] on the rubber damper.

• Install the rubber damper [A] on the bracket [B].
