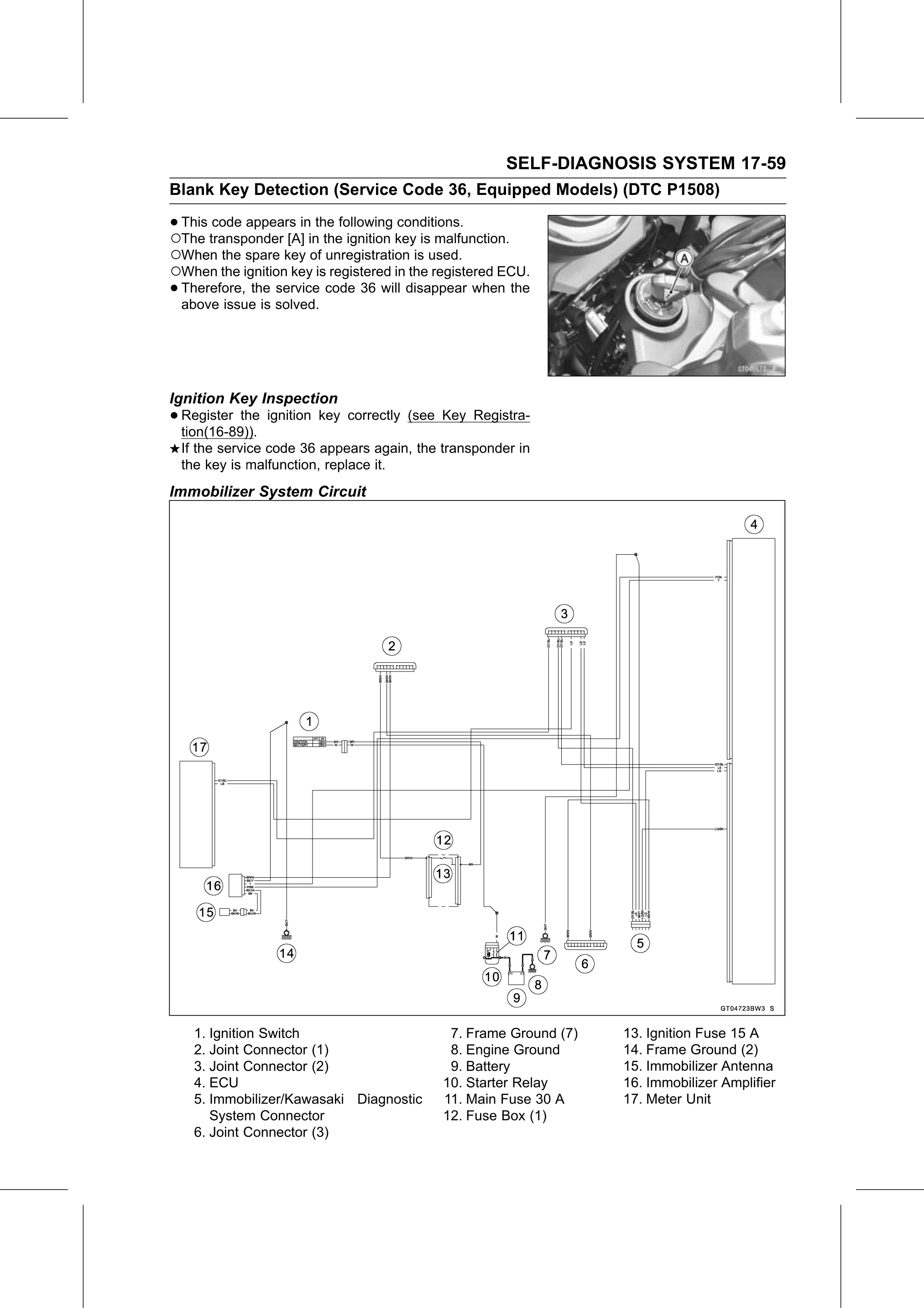

SELF-DIAGNOSIS SYSTEM 17-59
Blank Key Detection (Service Code 36, Equipped Models) (DTC P1508)

•○This code appears in the following conditions.
  The transponder [A] in the ignition key is malfunction.
○When the spare key of unregistration is used.
○When the ignition key is registered in the registered ECU.
• Therefore, the service code 36 will disappear when the
  above issue is solved.

Ignition Key Inspection
• Register  the ignition key correctly (see Key Registra-
  tion(16-89)).
 If the service code 36 appears again, the transponder in
 the key is malfunction, replace it.
Immobilizer System Circuit

    1. Ignition Switch                        7. Frame Ground (7)   13. Ignition Fuse 15 A
    2. Joint Connector (1)                    8. Engine Ground      14. Frame Ground (2)
    3. Joint Connector (2)                    9. Battery            15. Immobilizer Antenna
    4. ECU                                   10. Starter Relay      16. Immobilizer Amplifier
    5. Immobilizer/Kawasaki Diagnostic       11. Main Fuse 30 A     17. Meter Unit
       System Connector                      12. Fuse Box (1)
    6. Joint Connector (3)
