17-68 SELF-DIAGNOSIS SYSTEM
Fuel Injectors #1, #2, #3, #4 (Service Code 41, 42, 43, 44) (DTC P0201, P0202,
P0203, P0204)

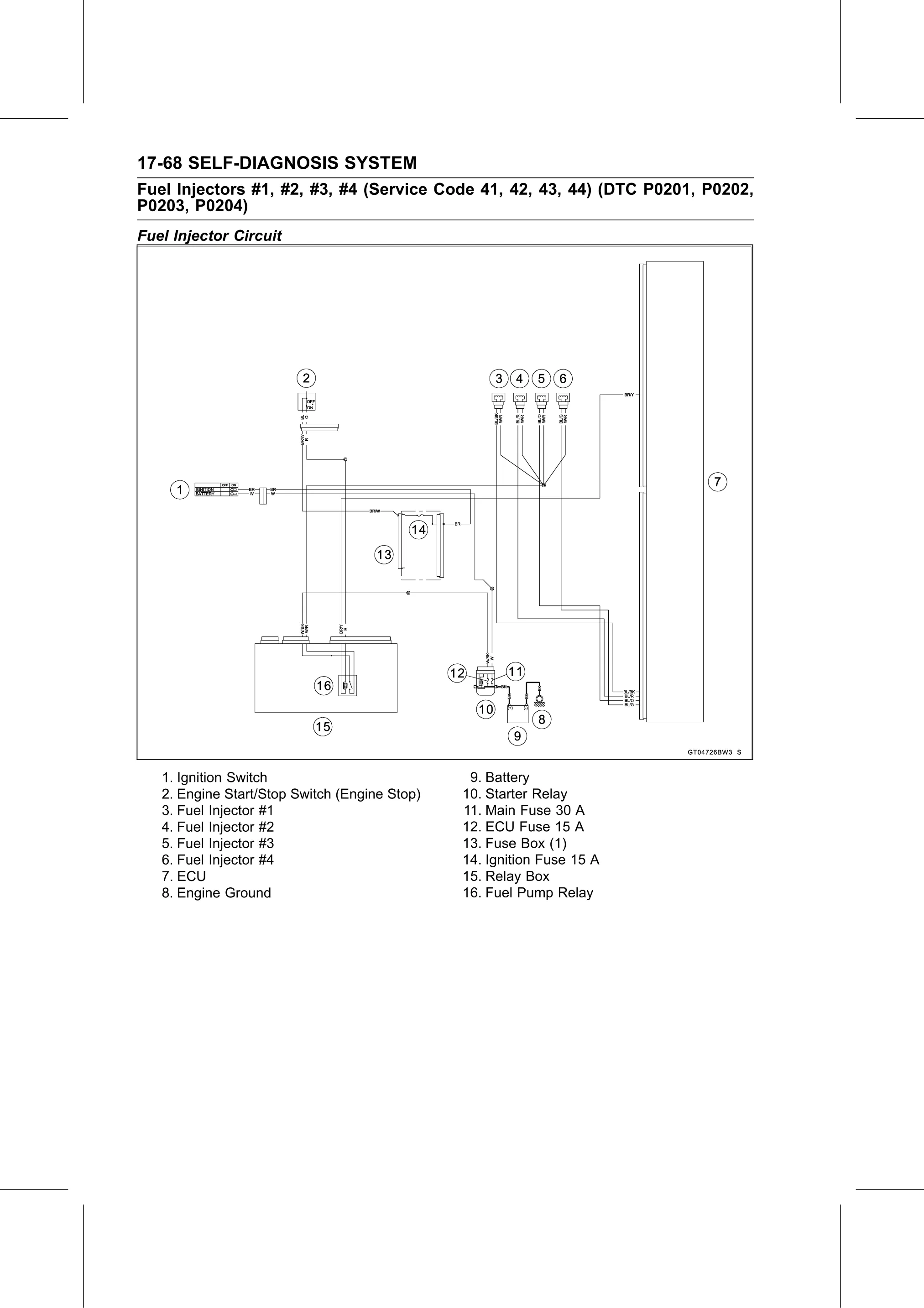

Fuel Injector Circuit

   1. Ignition Switch                           9. Battery
   2. Engine Start/Stop Switch (Engine Stop)   10. Starter Relay
   3. Fuel Injector #1                         11. Main Fuse 30 A
   4. Fuel Injector #2                         12. ECU Fuse 15 A
   5. Fuel Injector #3                         13. Fuse Box (1)
   6. Fuel Injector #4                         14. Ignition Fuse 15 A
   7. ECU                                      15. Relay Box
   8. Engine Ground                            16. Fuel Pump Relay
