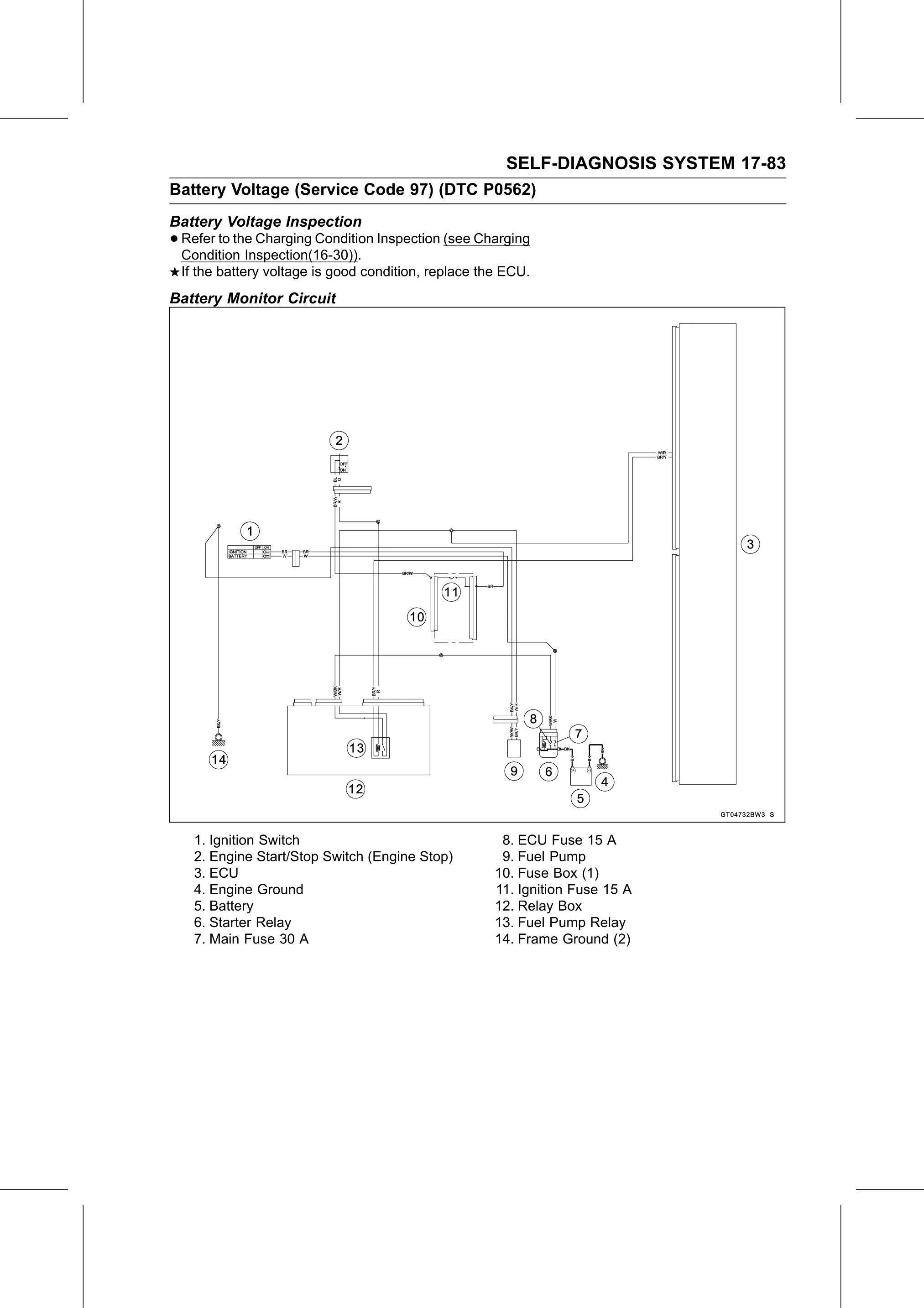

SELF-DIAGNOSIS SYSTEM 17-83
Battery Voltage (Service Code 97) (DTC P0562)
Battery Voltage Inspection
• Refer to the Charging Condition Inspection (see Charging
  Condition Inspection(16-30)).
 If the battery voltage is good condition, replace the ECU.
Battery Monitor Circuit

   1. Ignition Switch                                 8. ECU Fuse 15 A
   2. Engine Start/Stop Switch (Engine Stop)          9. Fuel Pump
   3. ECU                                            10. Fuse Box (1)
   4. Engine Ground                                  11. Ignition Fuse 15 A
   5. Battery                                        12. Relay Box
   6. Starter Relay                                  13. Fuel Pump Relay
   7. Main Fuse 30 A                                 14. Frame Ground (2)
