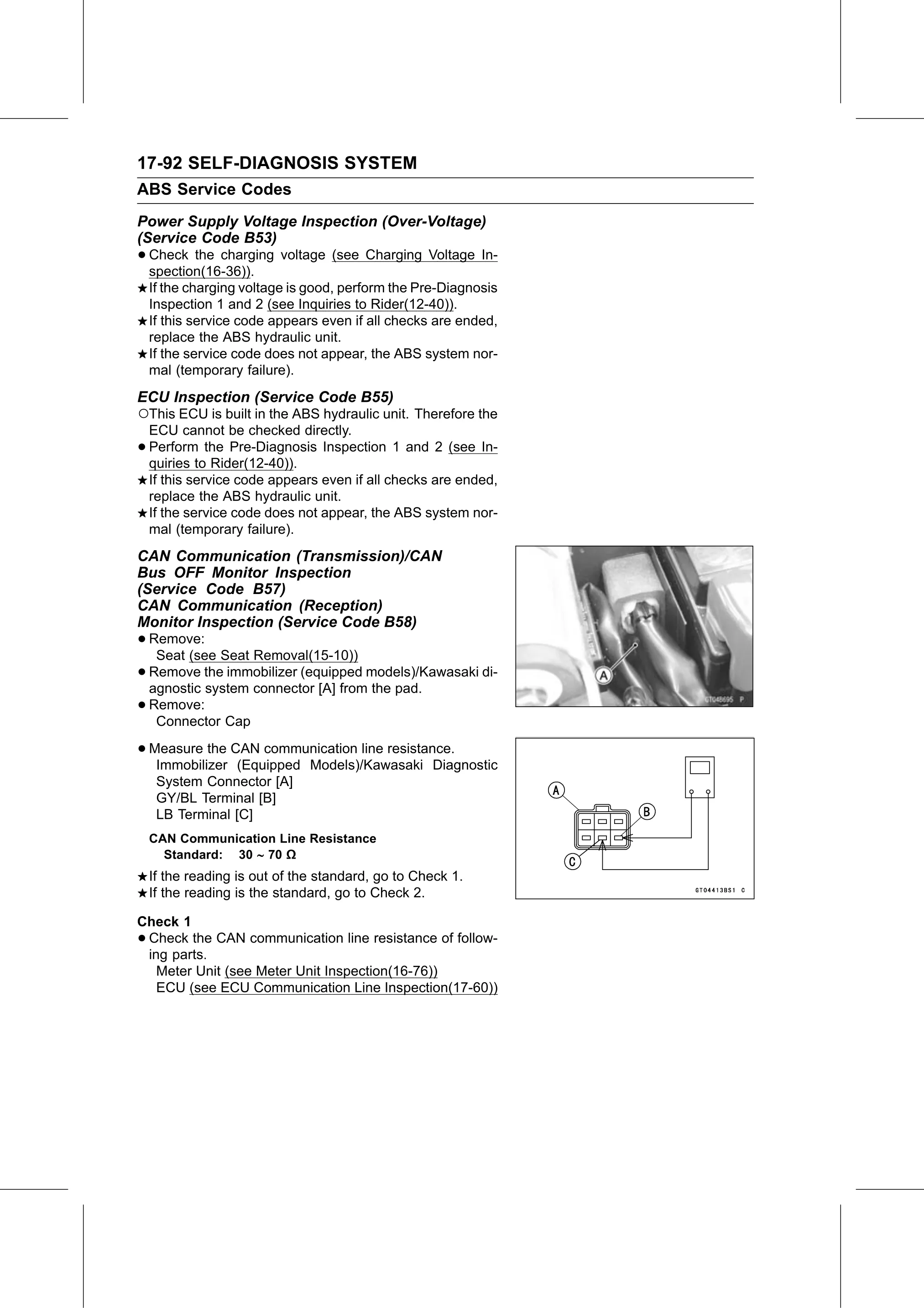

17-92 SELF-DIAGNOSIS SYSTEM
ABS Service Codes
Power Supply Voltage Inspection (Over-Voltage)
(Service Code B53)
• Check  the charging voltage (see Charging Voltage In-
  spection(16-36)).
    If the charging voltage is good, perform the Pre-Diagnosis
    Inspection 1 and 2 (see Inquiries to Rider(12-40)).
    If this service code appears even if all checks are ended,
    replace the ABS hydraulic unit.
    If the service code does not appear, the ABS system nor-
    mal (temporary failure).
ECU Inspection (Service Code B55)
○This ECU is built in the ABS hydraulic unit. Therefore the
    ECU cannot be checked directly.
•   Perform the Pre-Diagnosis Inspection 1 and 2 (see In-
    quiries to Rider(12-40)).
    If this service code appears even if all checks are ended,
    replace the ABS hydraulic unit.
    If the service code does not appear, the ABS system nor-
    mal (temporary failure).
CAN Communication (Transmission)/CAN
Bus OFF Monitor Inspection
(Service Code B57)
CAN Communication (Reception)
Monitor Inspection (Service Code B58)
• Remove:
   Seat (see Seat Removal(15-10))
• agnostic the
  Remove       immobilizer (equipped models)/Kawasaki di-
           system connector [A] from the pad.
• Remove:
   Connector Cap

• Measure  the CAN communication line resistance.
   Immobilizer (Equipped Models)/Kawasaki Diagnostic
     System Connector [A]
     GY/BL Terminal [B]
     LB Terminal [C]
    CAN Communication Line Resistance
      Standard: 30  70 Ω
    If the reading is out of the standard, go to Check 1.
    If the reading is the standard, go to Check 2.

Check 1
•Check the CAN communication line resistance of follow-
 ing parts.
   Meter Unit (see Meter Unit Inspection(16-76))
   ECU (see ECU Communication Line Inspection(17-60))
