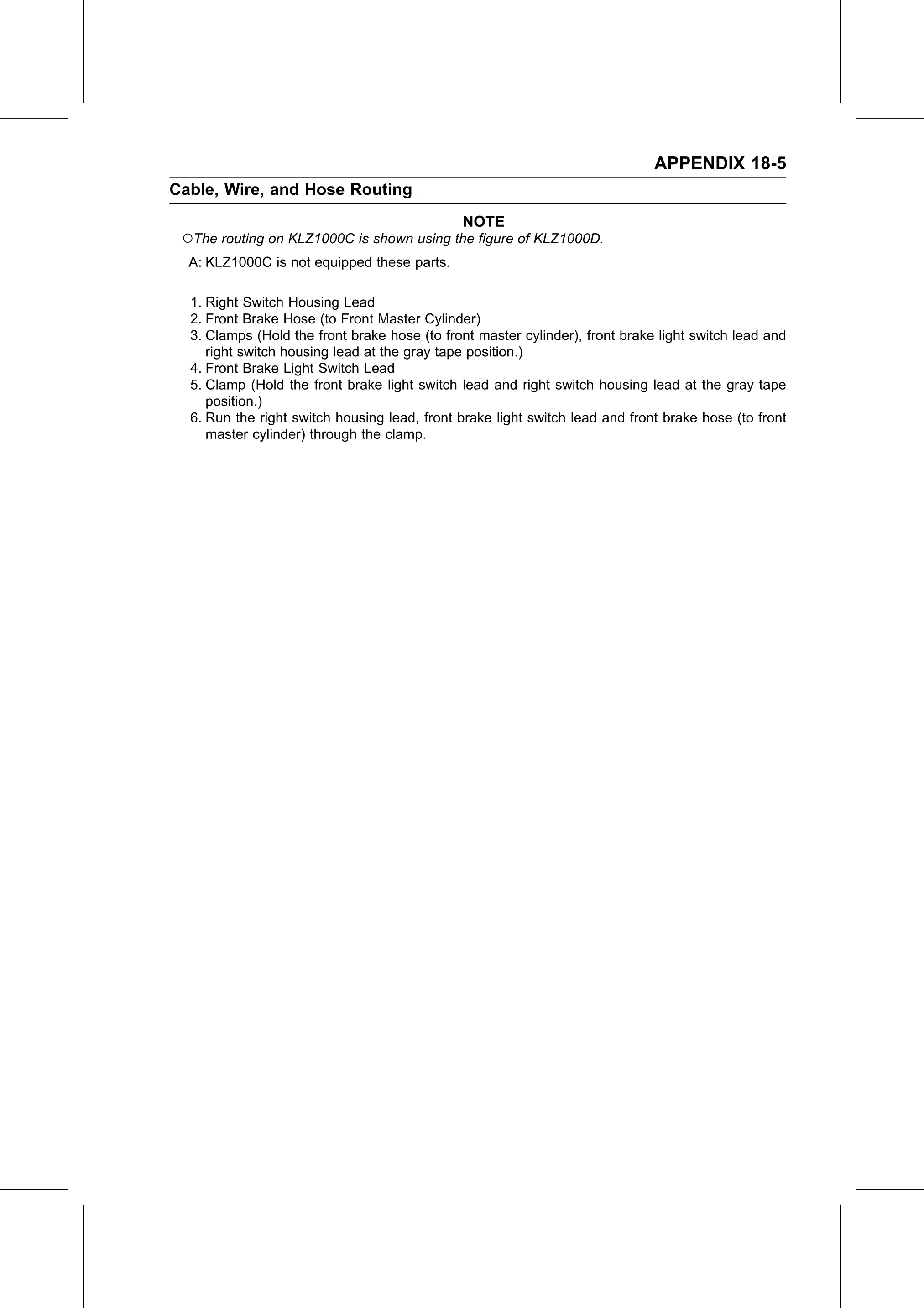

APPENDIX 18-5
Cable, Wire, and Hose Routing
                                              NOTE
 ○The routing on KLZ1000C is shown using the figure of KLZ1000D.
  A: KLZ1000C is not equipped these parts.

  1. Right Switch Housing Lead
  2. Front Brake Hose (to Front Master Cylinder)
  3. Clamps (Hold the front brake hose (to front master cylinder), front brake light switch lead and
     right switch housing lead at the gray tape position.)
  4. Front Brake Light Switch Lead
  5. Clamp (Hold the front brake light switch lead and right switch housing lead at the gray tape
     position.)
  6. Run the right switch housing lead, front brake light switch lead and front brake hose (to front
     master cylinder) through the clamp.
