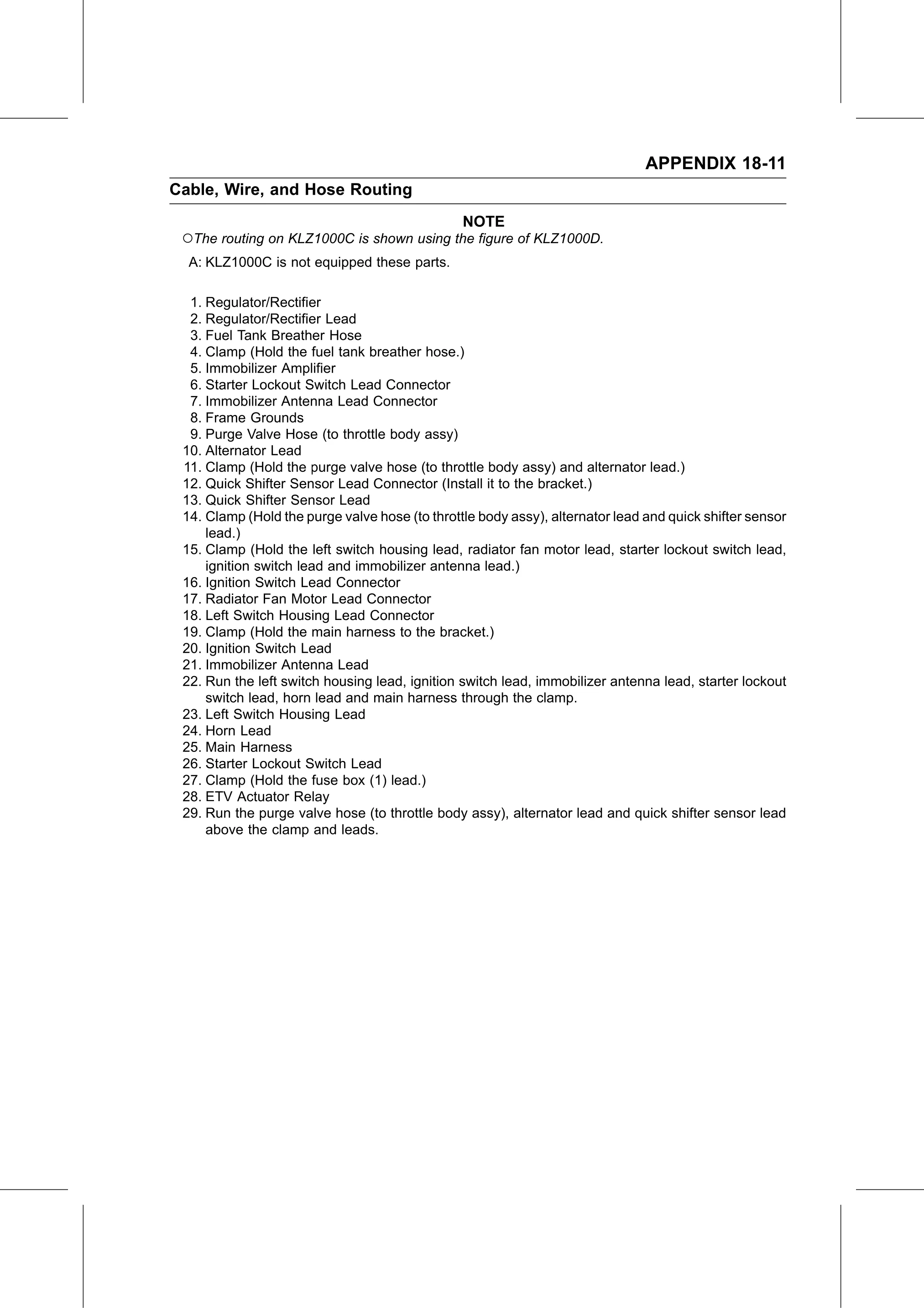

APPENDIX 18-11
Cable, Wire, and Hose Routing
                                                NOTE
 ○The routing on KLZ1000C is shown using the figure of KLZ1000D.
  A: KLZ1000C is not equipped these parts.

  1. Regulator/Rectifier
  2. Regulator/Rectifier Lead
  3. Fuel Tank Breather Hose
  4. Clamp (Hold the fuel tank breather hose.)
  5. Immobilizer Amplifier
  6. Starter Lockout Switch Lead Connector
  7. Immobilizer Antenna Lead Connector
  8. Frame Grounds
  9. Purge Valve Hose (to throttle body assy)
 10. Alternator Lead
 11. Clamp (Hold the purge valve hose (to throttle body assy) and alternator lead.)
 12. Quick Shifter Sensor Lead Connector (Install it to the bracket.)
 13. Quick Shifter Sensor Lead
 14. Clamp (Hold the purge valve hose (to throttle body assy), alternator lead and quick shifter sensor
     lead.)
 15. Clamp (Hold the left switch housing lead, radiator fan motor lead, starter lockout switch lead,
     ignition switch lead and immobilizer antenna lead.)
 16. Ignition Switch Lead Connector
 17. Radiator Fan Motor Lead Connector
 18. Left Switch Housing Lead Connector
 19. Clamp (Hold the main harness to the bracket.)
 20. Ignition Switch Lead
 21. Immobilizer Antenna Lead
 22. Run the left switch housing lead, ignition switch lead, immobilizer antenna lead, starter lockout
     switch lead, horn lead and main harness through the clamp.
 23. Left Switch Housing Lead
 24. Horn Lead
 25. Main Harness
 26. Starter Lockout Switch Lead
 27. Clamp (Hold the fuse box (1) lead.)
 28. ETV Actuator Relay
 29. Run the purge valve hose (to throttle body assy), alternator lead and quick shifter sensor lead
     above the clamp and leads.
