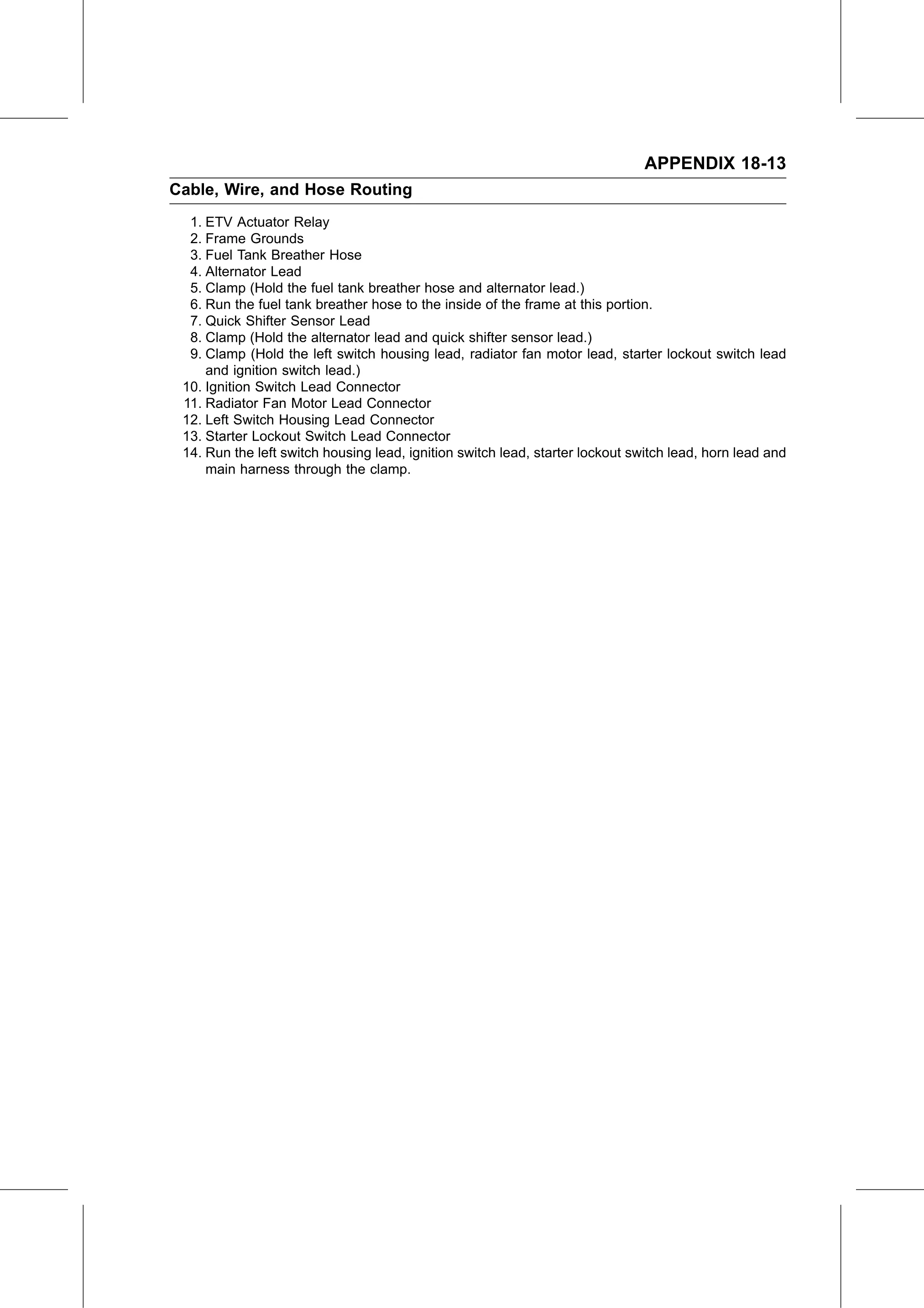

APPENDIX 18-13
Cable, Wire, and Hose Routing
  1. ETV Actuator Relay
  2. Frame Grounds
  3. Fuel Tank Breather Hose
  4. Alternator Lead
  5. Clamp (Hold the fuel tank breather hose and alternator lead.)
  6. Run the fuel tank breather hose to the inside of the frame at this portion.
  7. Quick Shifter Sensor Lead
  8. Clamp (Hold the alternator lead and quick shifter sensor lead.)
  9. Clamp (Hold the left switch housing lead, radiator fan motor lead, starter lockout switch lead
     and ignition switch lead.)
 10. Ignition Switch Lead Connector
 11. Radiator Fan Motor Lead Connector
 12. Left Switch Housing Lead Connector
 13. Starter Lockout Switch Lead Connector
 14. Run the left switch housing lead, ignition switch lead, starter lockout switch lead, horn lead and
     main harness through the clamp.
