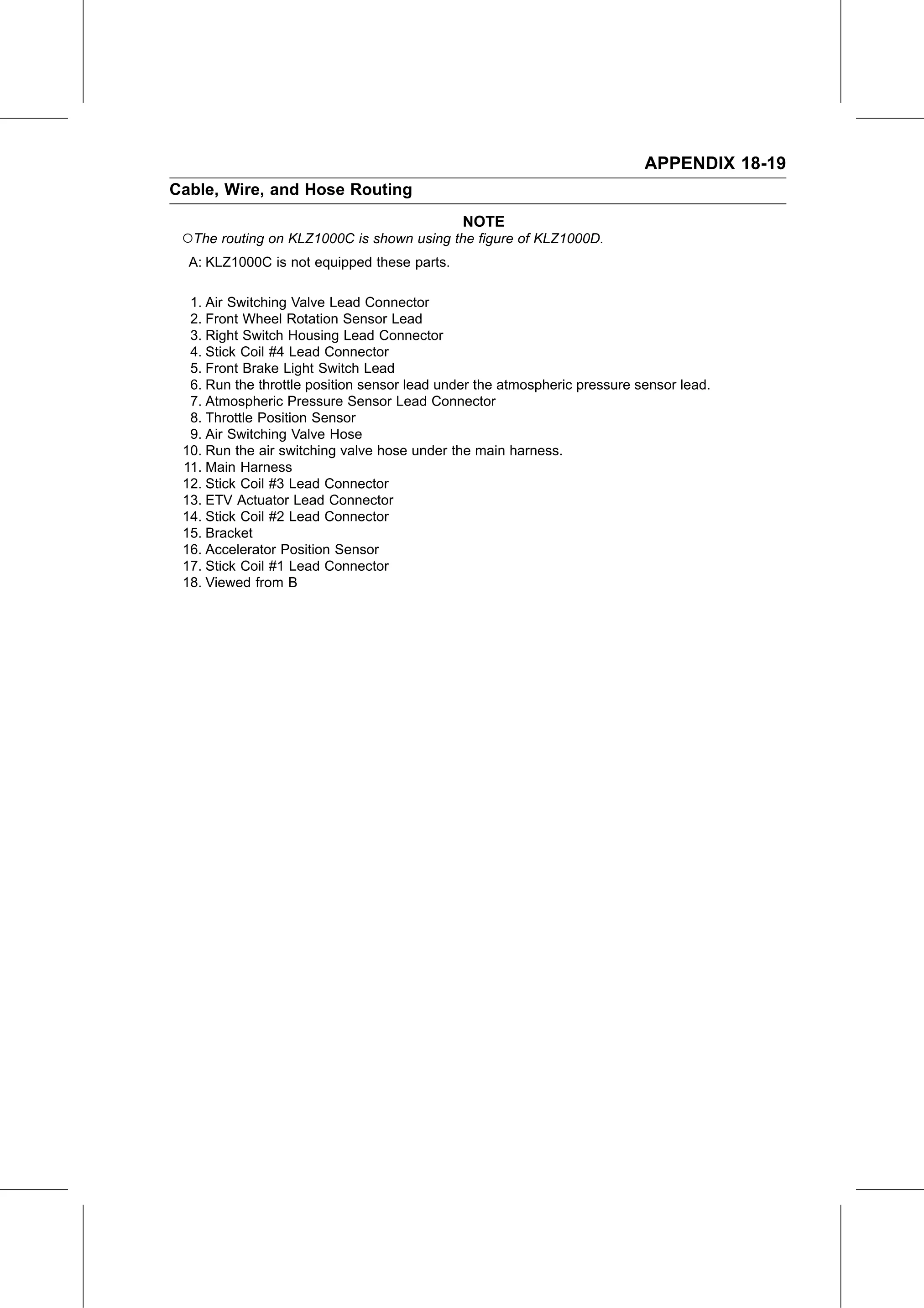

APPENDIX 18-19
Cable, Wire, and Hose Routing
                                              NOTE
 ○The routing on KLZ1000C is shown using the figure of KLZ1000D.
  A: KLZ1000C is not equipped these parts.

  1. Air Switching Valve Lead Connector
  2. Front Wheel Rotation Sensor Lead
  3. Right Switch Housing Lead Connector
  4. Stick Coil #4 Lead Connector
  5. Front Brake Light Switch Lead
  6. Run the throttle position sensor lead under the atmospheric pressure sensor lead.
  7. Atmospheric Pressure Sensor Lead Connector
  8. Throttle Position Sensor
  9. Air Switching Valve Hose
 10. Run the air switching valve hose under the main harness.
 11. Main Harness
 12. Stick Coil #3 Lead Connector
 13. ETV Actuator Lead Connector
 14. Stick Coil #2 Lead Connector
 15. Bracket
 16. Accelerator Position Sensor
 17. Stick Coil #1 Lead Connector
 18. Viewed from B
