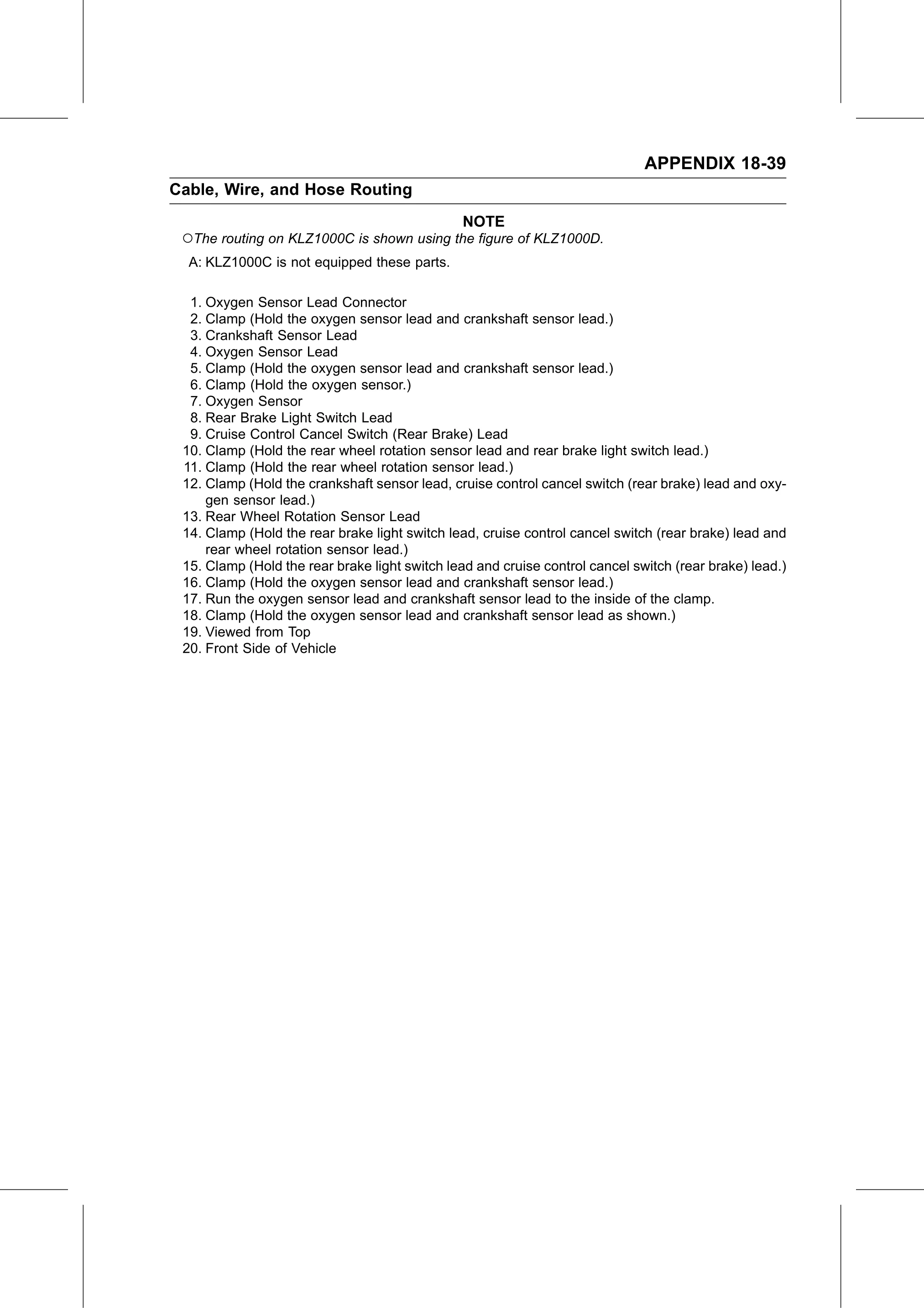

APPENDIX 18-39
Cable, Wire, and Hose Routing
                                               NOTE
 ○The routing on KLZ1000C is shown using the figure of KLZ1000D.
  A: KLZ1000C is not equipped these parts.

  1. Oxygen Sensor Lead Connector
  2. Clamp (Hold the oxygen sensor lead and crankshaft sensor lead.)
  3. Crankshaft Sensor Lead
  4. Oxygen Sensor Lead
  5. Clamp (Hold the oxygen sensor lead and crankshaft sensor lead.)
  6. Clamp (Hold the oxygen sensor.)
  7. Oxygen Sensor
  8. Rear Brake Light Switch Lead
  9. Cruise Control Cancel Switch (Rear Brake) Lead
 10. Clamp (Hold the rear wheel rotation sensor lead and rear brake light switch lead.)
 11. Clamp (Hold the rear wheel rotation sensor lead.)
 12. Clamp (Hold the crankshaft sensor lead, cruise control cancel switch (rear brake) lead and oxy-
     gen sensor lead.)
 13. Rear Wheel Rotation Sensor Lead
 14. Clamp (Hold the rear brake light switch lead, cruise control cancel switch (rear brake) lead and
     rear wheel rotation sensor lead.)
 15. Clamp (Hold the rear brake light switch lead and cruise control cancel switch (rear brake) lead.)
 16. Clamp (Hold the oxygen sensor lead and crankshaft sensor lead.)
 17. Run the oxygen sensor lead and crankshaft sensor lead to the inside of the clamp.
 18. Clamp (Hold the oxygen sensor lead and crankshaft sensor lead as shown.)
 19. Viewed from Top
 20. Front Side of Vehicle
