18-42 APPENDIX

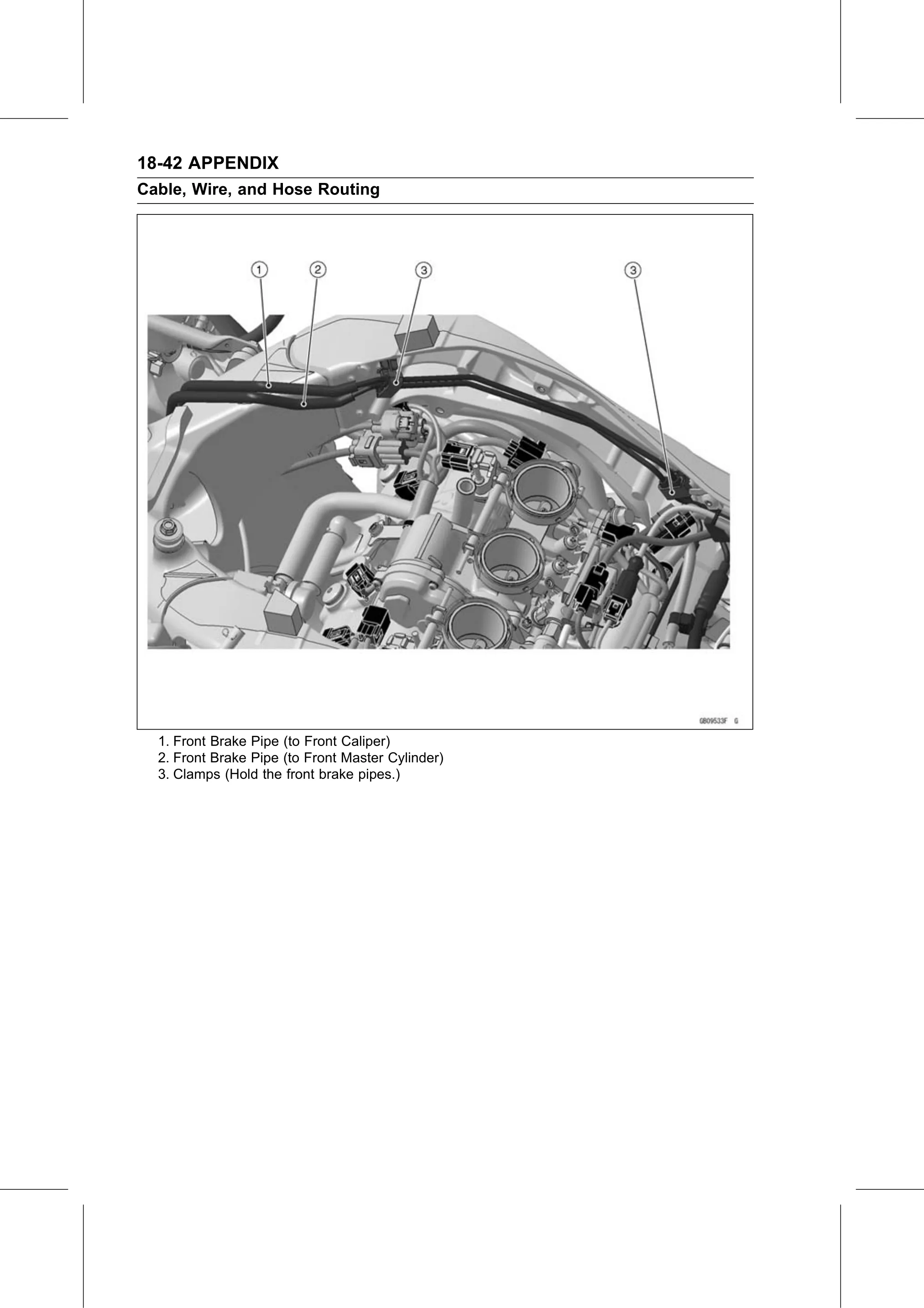

Cable, Wire, and Hose Routing

  1. Front Brake Pipe (to Front Caliper)
  2. Front Brake Pipe (to Front Master Cylinder)
  3. Clamps (Hold the front brake pipes.)
