18-44 APPENDIX

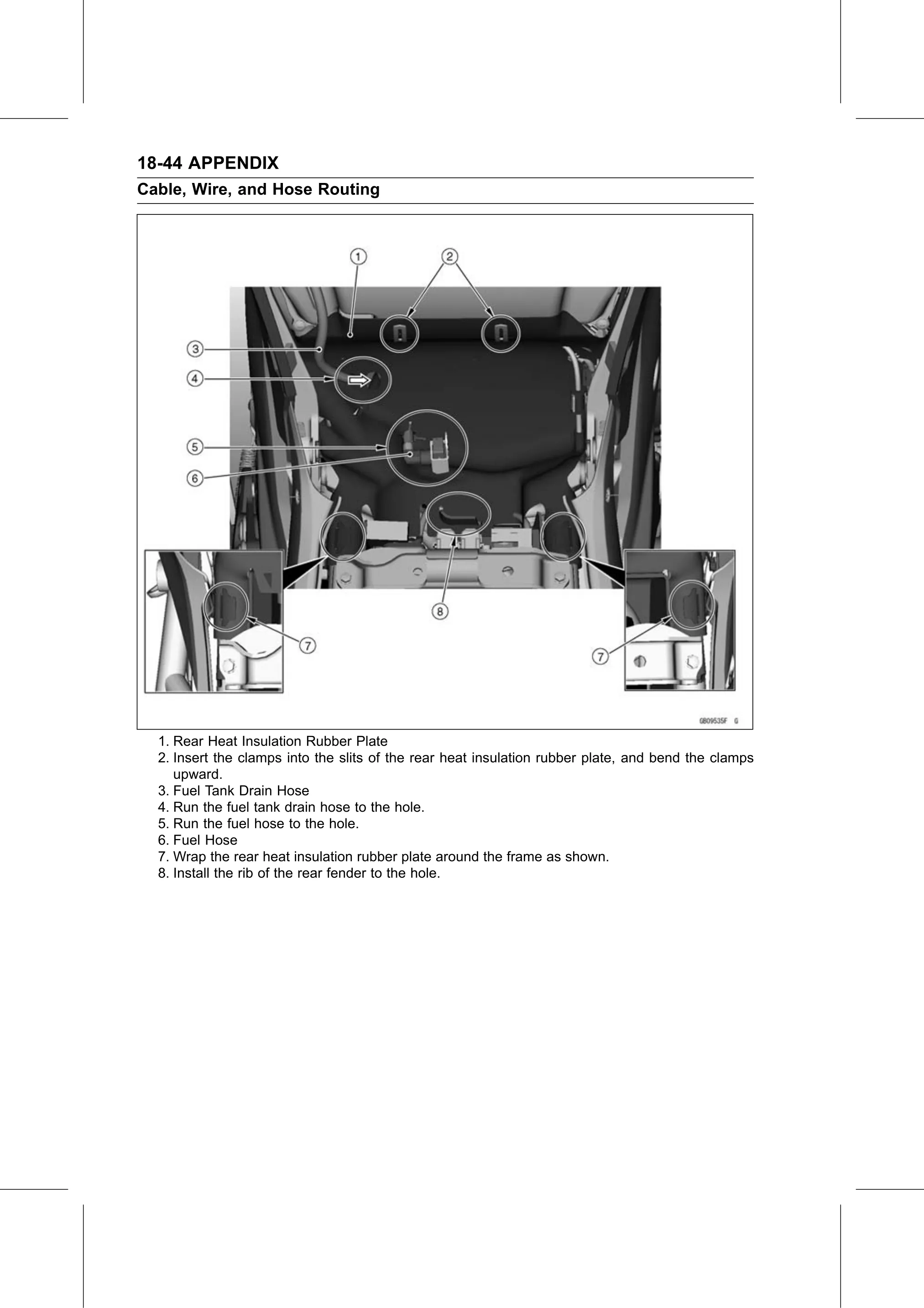

Cable, Wire, and Hose Routing

  1. Rear Heat Insulation Rubber Plate
  2. Insert the clamps into the slits of the rear heat insulation rubber plate, and bend the clamps
     upward.
  3. Fuel Tank Drain Hose
  4. Run the fuel tank drain hose to the hole.
  5. Run the fuel hose to the hole.
  6. Fuel Hose
  7. Wrap the rear heat insulation rubber plate around the frame as shown.
  8. Install the rib of the rear fender to the hole.
