PERIODIC MAINTENANCE 2-3

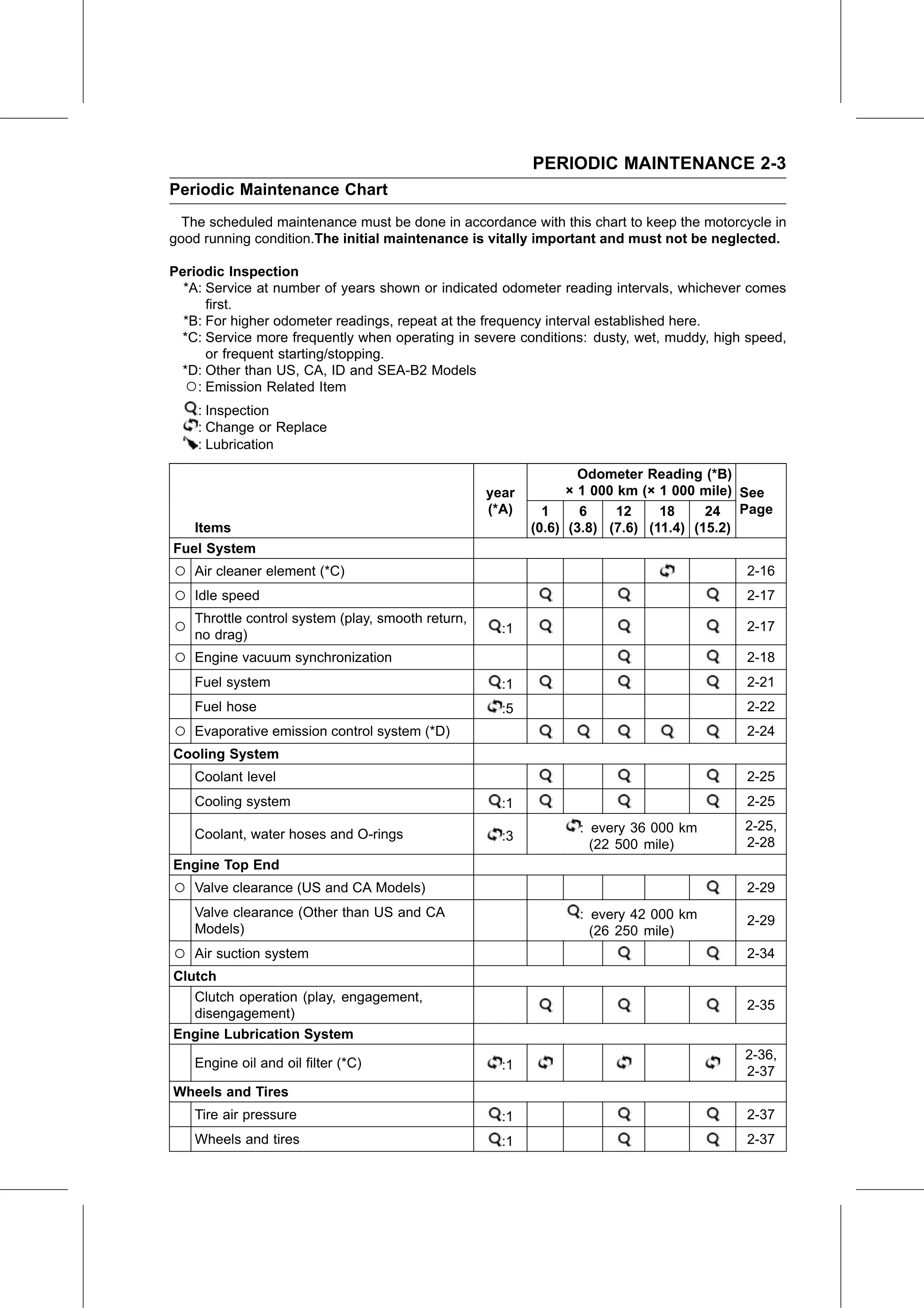

Periodic Maintenance Chart
  The scheduled maintenance must be done in accordance with this chart to keep the motorcycle in
good running condition.The initial maintenance is vitally important and must not be neglected.

Periodic Inspection
  *A: Service at number of years shown or indicated odometer reading intervals, whichever comes
      first.
  *B: For higher odometer readings, repeat at the frequency interval established here.
 *C: Service more frequently when operating in severe conditions: dusty, wet, muddy, high speed,
      or frequent starting/stopping.
 *D: Other than US, CA, ID and SEA-B2 Models
  ○: Emission Related Item
    : Inspection
    : Change or Replace
    : Lubrication

                                                                 Odometer Reading (*B)
                                                  year         × 1 000 km (× 1 000 mile) See
                                                  (*A)     1     6     12    18     24 Page
   Items                                                 (0.6) (3.8) (7.6) (11.4) (15.2)
Fuel System
○ Air cleaner element (*C)                                                               2-16
○ Idle speed                                                                             2-17

○ Throttle
  no drag)
           control system (play, smooth return,
                                                    :1                                   2-17

○ Engine vacuum synchronization                                                          2-18
   Fuel system                                      :1                                   2-21
   Fuel hose                                        :5                                   2-22
○ Evaporative emission control system (*D)                                               2-24
Cooling System
   Coolant level                                                                         2-25
   Cooling system                                   :1                                   2-25
                                                                : every 36 000 km        2-25,
   Coolant, water hoses and O-rings                 :3
                                                                  (22 500 mile)          2-28
Engine Top End
○ Valve clearance (US and CA Models)                                                     2-29
   Valve clearance (Other than US and CA                        : every 42 000 km        2-29
   Models)                                                        (26 250 mile)
○ Air suction system                                                                     2-34
Clutch
   Clutch operation (play, engagement,
                                                                                         2-35
   disengagement)
Engine Lubrication System
                                                                                         2-36,
   Engine oil and oil filter (*C)                   :1                                   2-37
Wheels and Tires
   Tire air pressure                                :1                                   2-37
   Wheels and tires                                 :1                                   2-37
