PERIODIC MAINTENANCE 2-5

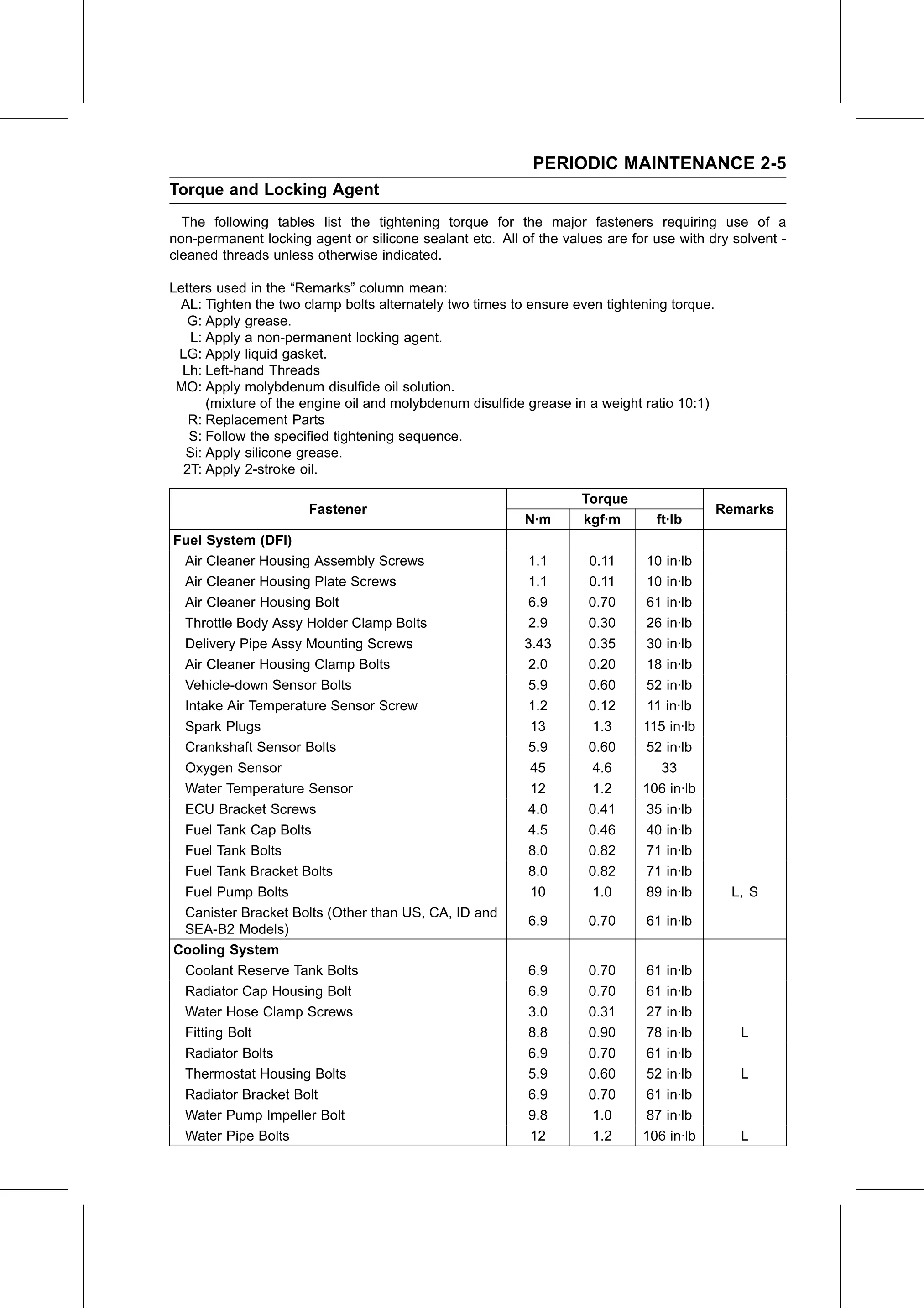

Torque and Locking Agent
  The following tables list the tightening torque for the major fasteners requiring use of a
non-permanent locking agent or silicone sealant etc. All of the values are for use with dry solvent -
cleaned threads unless otherwise indicated.

Letters used in the “Remarks” column mean:
 AL: Tighten the two clamp bolts alternately two times to ensure even tightening torque.
   G: Apply grease.
   L: Apply a non-permanent locking agent.
 LG: Apply liquid gasket.
  Lh: Left-hand Threads
 MO: Apply molybdenum disulfide oil solution.
      (mixture of the engine oil and molybdenum disulfide grease in a weight ratio 10:1)
   R: Replacement Parts
   S: Follow the specified tightening sequence.
  Si: Apply silicone grease.
  2T: Apply 2-stroke oil.

                                                                   Torque
                      Fastener                                                             Remarks
                                                          N·m      kgf·m       ft·lb
Fuel System (DFI)
 Air Cleaner Housing Assembly Screws                       1.1      0.11     10 in·lb
 Air Cleaner Housing Plate Screws                          1.1      0.11     10 in·lb
 Air Cleaner Housing Bolt                                  6.9      0.70     61 in·lb
 Throttle Body Assy Holder Clamp Bolts                     2.9      0.30     26 in·lb
 Delivery Pipe Assy Mounting Screws                       3.43      0.35     30 in·lb
 Air Cleaner Housing Clamp Bolts                           2.0      0.20     18 in·lb
 Vehicle-down Sensor Bolts                                 5.9      0.60     52 in·lb
 Intake Air Temperature Sensor Screw                       1.2      0.12      11 in·lb
 Spark Plugs                                               13        1.3     115 in·lb
 Crankshaft Sensor Bolts                                   5.9      0.60     52 in·lb
 Oxygen Sensor                                             45        4.6        33
 Water Temperature Sensor                                  12        1.2     106 in·lb
 ECU Bracket Screws                                        4.0      0.41     35 in·lb
 Fuel Tank Cap Bolts                                       4.5      0.46     40 in·lb
 Fuel Tank Bolts                                           8.0      0.82     71 in·lb
 Fuel Tank Bracket Bolts                                   8.0      0.82     71 in·lb
 Fuel Pump Bolts                                           10        1.0     89 in·lb       L, S
 Canister Bracket Bolts (Other than US, CA, ID and
                                                          6.9       0.70      61 in·lb
 SEA-B2 Models)
Cooling System
 Coolant Reserve Tank Bolts                               6.9       0.70     61 in·lb
 Radiator Cap Housing Bolt                                6.9       0.70     61 in·lb
 Water Hose Clamp Screws                                  3.0       0.31     27 in·lb
 Fitting Bolt                                             8.8       0.90     78 in·lb         L
 Radiator Bolts                                           6.9       0.70     61 in·lb
 Thermostat Housing Bolts                                 5.9       0.60     52 in·lb         L
 Radiator Bracket Bolt                                    6.9       0.70     61 in·lb
 Water Pump Impeller Bolt                                 9.8        1.0     87 in·lb
 Water Pipe Bolts                                         12         1.2     106 in·lb        L
