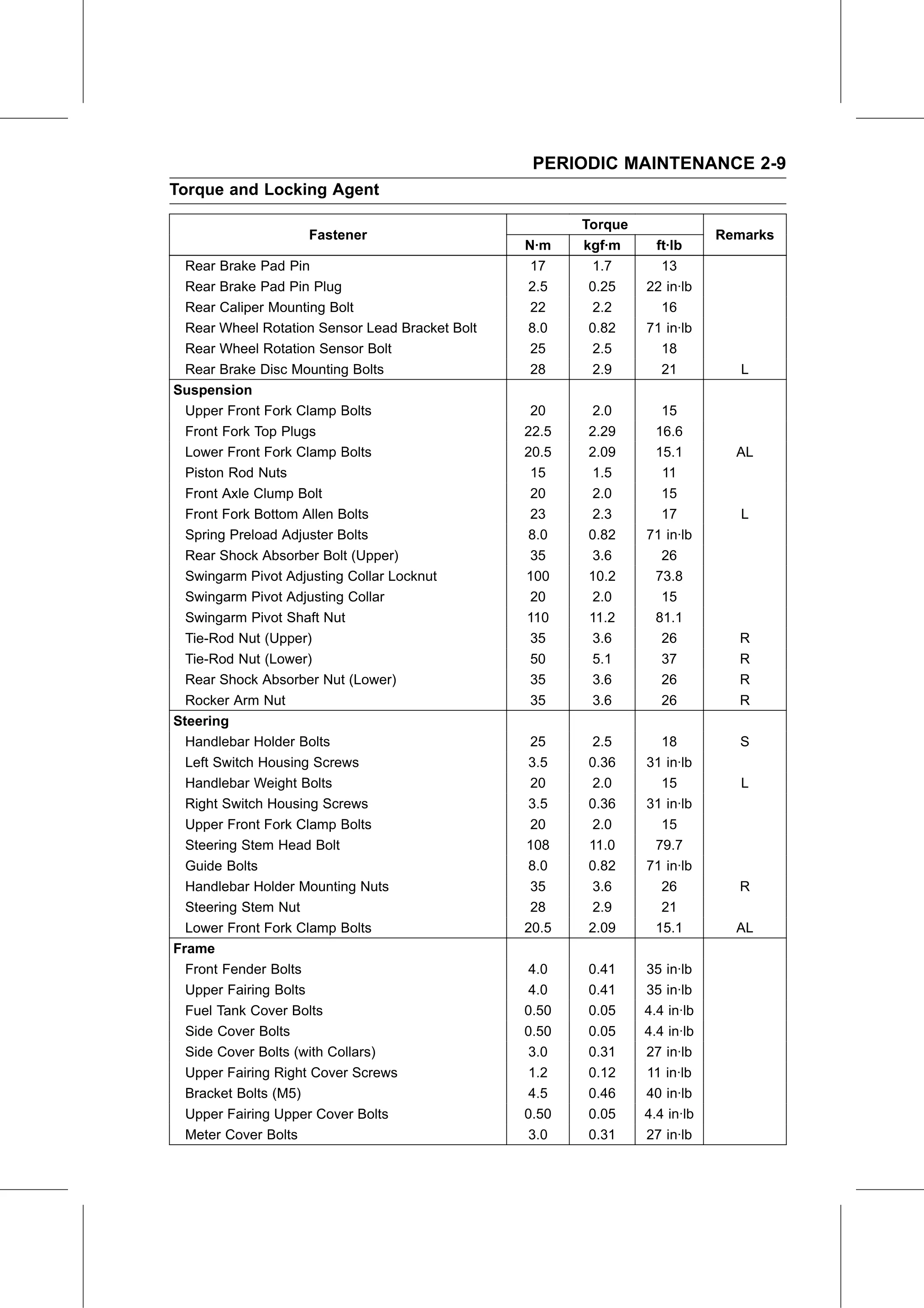

PERIODIC MAINTENANCE 2-9
Torque and Locking Agent
Torque
Fastener Remarks
N·m kgf·m ft·lb
Rear Brake Pad Pin 17 1.7 13
Rear Brake Pad Pin Plug 2.5 0.25 22 in·lb
Rear Caliper Mounting Bolt 22 2.2 16
Rear Wheel Rotation Sensor Lead Bracket Bolt 8.0 0.82 71 in·lb
Rear Wheel Rotation Sensor Bolt 25 2.5 18
Rear Brake Disc Mounting Bolts 28 2.9 21 L
Suspension
Upper Front Fork Clamp Bolts 20 2.0 15
Front Fork Top Plugs 22.5 2.29 16.6
Lower Front Fork Clamp Bolts 20.5 2.09 15.1 AL
Piston Rod Nuts 15 1.5 11
Front Axle Clump Bolt 20 2.0 15
Front Fork Bottom Allen Bolts 23 2.3 17 L
Spring Preload Adjuster Bolts 8.0 0.82 71 in·lb
Rear Shock Absorber Bolt (Upper) 35 3.6 26
Swingarm Pivot Adjusting Collar Locknut 100 10.2 73.8
Swingarm Pivot Adjusting Collar 20 2.0 15
Swingarm Pivot Shaft Nut 110 11.2 81.1
Tie-Rod Nut (Upper) 35 3.6 26 R
Tie-Rod Nut (Lower) 50 5.1 37 R
Rear Shock Absorber Nut (Lower) 35 3.6 26 R
Rocker Arm Nut 35 3.6 26 R
Steering
Handlebar Holder Bolts 25 2.5 18 S
Left Switch Housing Screws 3.5 0.36 31 in·lb
Handlebar Weight Bolts 20 2.0 15 L
Right Switch Housing Screws 3.5 0.36 31 in·lb
Upper Front Fork Clamp Bolts 20 2.0 15
Steering Stem Head Bolt 108 11.0 79.7
Guide Bolts 8.0 0.82 71 in·lb
Handlebar Holder Mounting Nuts 35 3.6 26 R
Steering Stem Nut 28 2.9 21
Lower Front Fork Clamp Bolts 20.5 2.09 15.1 AL
Frame
Front Fender Bolts 4.0 0.41 35 in·lb
Upper Fairing Bolts 4.0 0.41 35 in·lb
Fuel Tank Cover Bolts 0.50 0.05 4.4 in·lb
Side Cover Bolts 0.50 0.05 4.4 in·lb
Side Cover Bolts (with Collars) 3.0 0.31 27 in·lb
Upper Fairing Right Cover Screws 1.2 0.12 11 in·lb
Bracket Bolts (M5) 4.5 0.46 40 in·lb
Upper Fairing Upper Cover Bolts 0.50 0.05 4.4 in·lb
Meter Cover Bolts 3.0 0.31 27 in·lb
