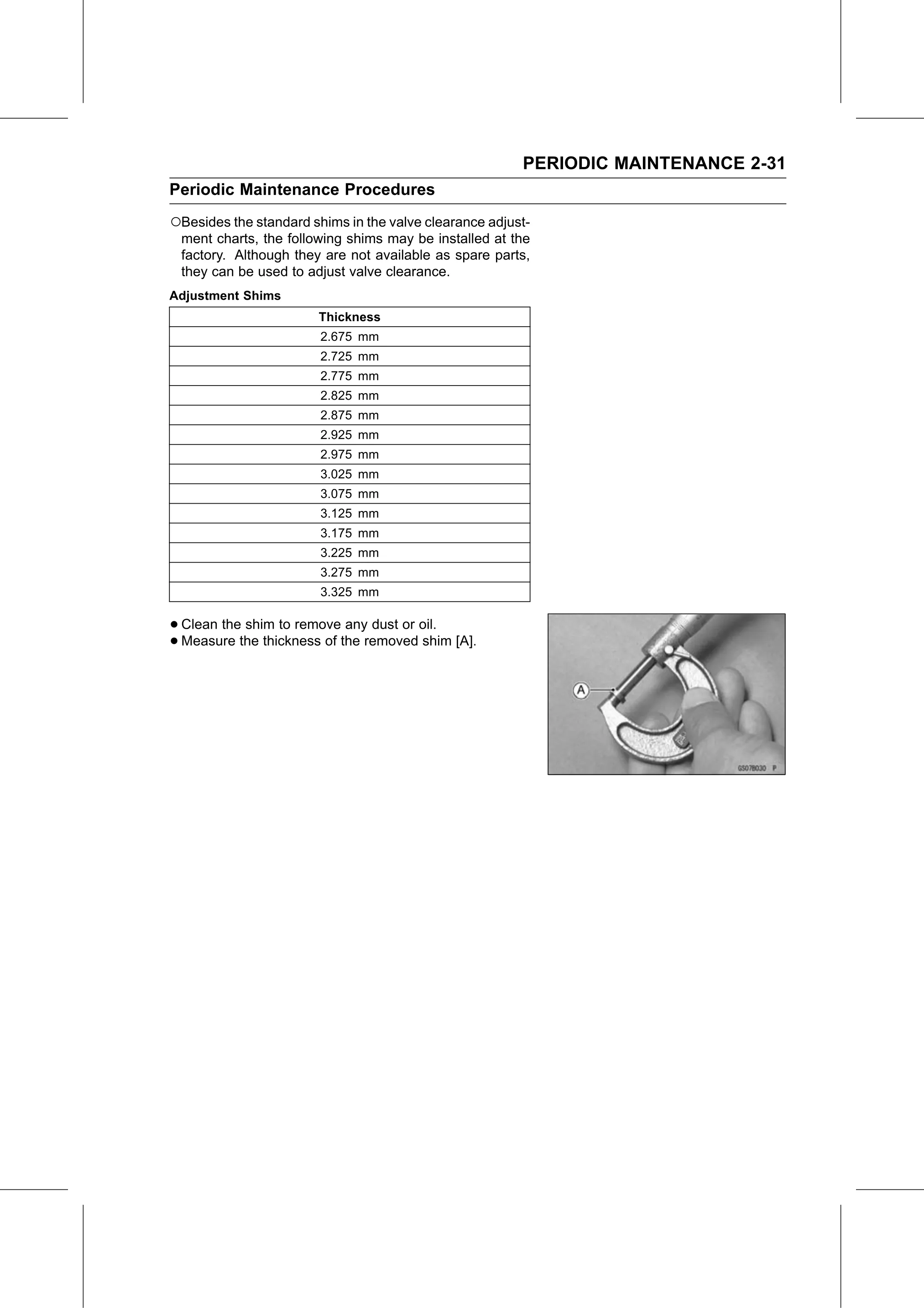

PERIODIC MAINTENANCE 2-31
Periodic Maintenance Procedures
○Besides the standard shims in the valve clearance adjust-
 ment charts, the following shims may be installed at the
 factory. Although they are not available as spare parts,
 they can be used to adjust valve clearance.
Adjustment Shims
                        Thickness
                        2.675 mm
                        2.725 mm
                        2.775 mm
                        2.825 mm
                        2.875 mm
                        2.925 mm
                        2.975 mm
                        3.025 mm
                        3.075 mm
                        3.125 mm
                        3.175 mm
                        3.225 mm
                        3.275 mm
                        3.325 mm

• Clean the shim to remove any dust or oil.
• Measure  the thickness of the removed shim [A].
