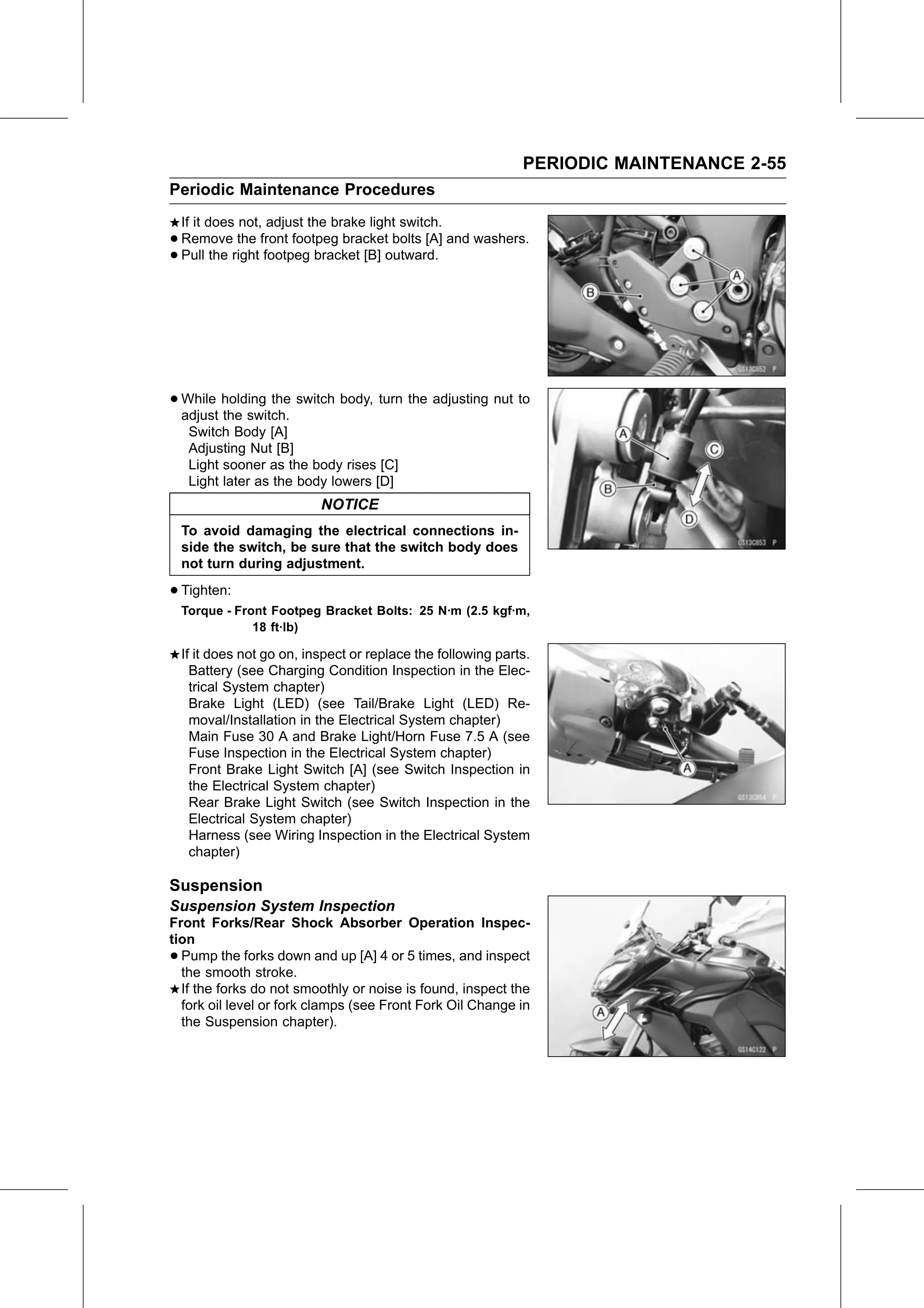

PERIODIC MAINTENANCE 2-55
Periodic Maintenance Procedures
    If it does not, adjust the brake light switch.
•   Remove the front footpeg bracket bolts [A] and washers.
•   Pull the right footpeg bracket [B] outward.

• While  holding the switch body, turn the adjusting nut to
  adjust the switch.
     Switch Body [A]
     Adjusting Nut [B]
     Light sooner as the body rises [C]
     Light later as the body lowers [D]
                            NOTICE
    To avoid damaging the electrical connections in-
    side the switch, be sure that the switch body does
    not turn during adjustment.

• Tighten:
    Torque - Front Footpeg Bracket Bolts: 25 N·m (2.5 kgf·m,
                18 ft·lb)

    If it does not go on, inspect or replace the following parts.
      Battery (see Charging Condition Inspection in the Elec-
      trical System chapter)
      Brake Light (LED) (see Tail/Brake Light (LED) Re-
      moval/Installation in the Electrical System chapter)
      Main Fuse 30 A and Brake Light/Horn Fuse 7.5 A (see
      Fuse Inspection in the Electrical System chapter)
      Front Brake Light Switch [A] (see Switch Inspection in
      the Electrical System chapter)
      Rear Brake Light Switch (see Switch Inspection in the
      Electrical System chapter)
      Harness (see Wiring Inspection in the Electrical System
      chapter)

Suspension
Suspension System Inspection
Front Forks/Rear Shock Absorber Operation Inspec-
tion
• Pump the forks down and up [A] 4 or 5 times, and inspect
  the smooth stroke.
  If the forks do not smoothly or noise is found, inspect the
  fork oil level or fork clamps (see Front Fork Oil Change in
  the Suspension chapter).
