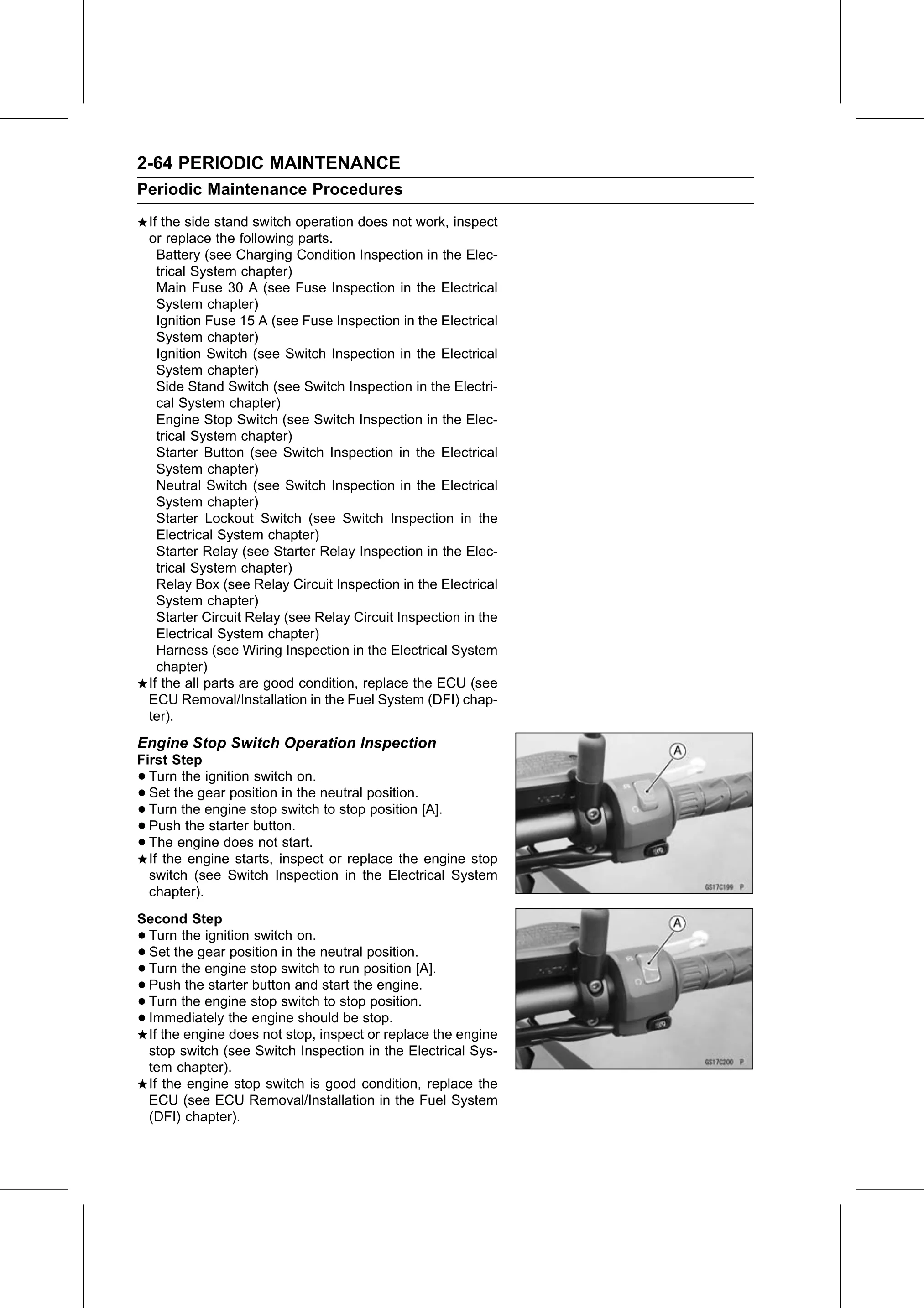

2-64 PERIODIC MAINTENANCE
Periodic Maintenance Procedures
    If the side stand switch operation does not work, inspect
    or replace the following parts.
      Battery (see Charging Condition Inspection in the Elec-
      trical System chapter)
      Main Fuse 30 A (see Fuse Inspection in the Electrical
      System chapter)
      Ignition Fuse 15 A (see Fuse Inspection in the Electrical
      System chapter)
      Ignition Switch (see Switch Inspection in the Electrical
      System chapter)
      Side Stand Switch (see Switch Inspection in the Electri-
      cal System chapter)
      Engine Stop Switch (see Switch Inspection in the Elec-
      trical System chapter)
      Starter Button (see Switch Inspection in the Electrical
      System chapter)
      Neutral Switch (see Switch Inspection in the Electrical
      System chapter)
      Starter Lockout Switch (see Switch Inspection in the
      Electrical System chapter)
      Starter Relay (see Starter Relay Inspection in the Elec-
      trical System chapter)
      Relay Box (see Relay Circuit Inspection in the Electrical
      System chapter)
      Starter Circuit Relay (see Relay Circuit Inspection in the
      Electrical System chapter)
      Harness (see Wiring Inspection in the Electrical System
      chapter)
    If the all parts are good condition, replace the ECU (see
    ECU Removal/Installation in the Fuel System (DFI) chap-
    ter).
Engine Stop Switch Operation Inspection
First Step
• Turn the ignition switch on.
• Set the gear position in the neutral position.
• Turn the engine stop switch to stop position [A].
• Push the starter button.
• The engine does not start.
  If the engine starts, inspect or replace the engine stop
  switch (see Switch Inspection in the Electrical System
  chapter).
Second Step
•Turn the ignition switch on.
•Set the gear position in the neutral position.
•Turn the engine stop switch to run position [A].
•Push the starter button and start the engine.
•Turn the engine stop switch to stop position.
•Immediately the engine should be stop.
 If the engine does not stop, inspect or replace the engine
 stop switch (see Switch Inspection in the Electrical Sys-
 tem chapter).
 If the engine stop switch is good condition, replace the
 ECU (see ECU Removal/Installation in the Fuel System
 (DFI) chapter).
