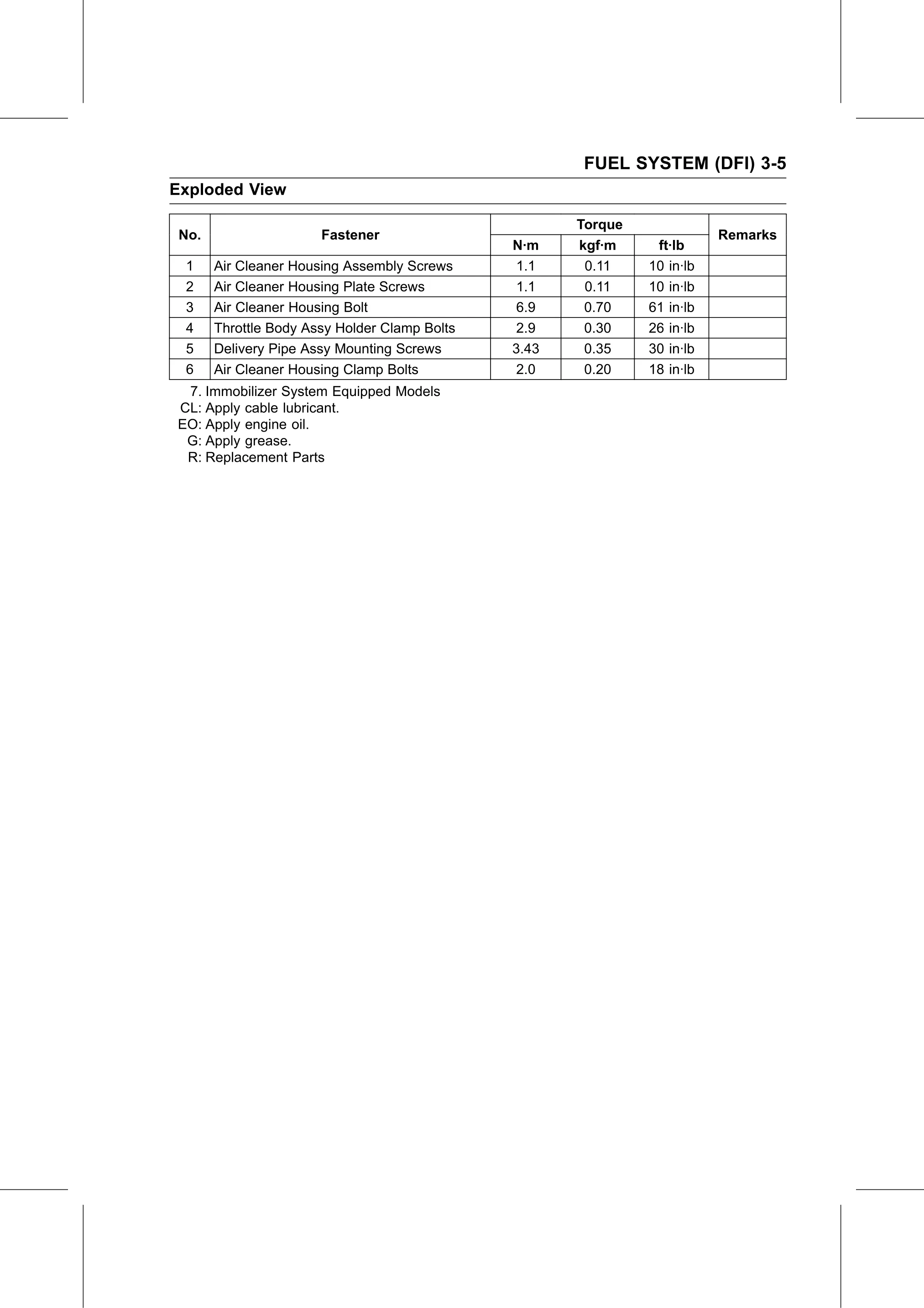

FUEL SYSTEM (DFI) 3-5
Exploded View

                                                      Torque
 No.                   Fastener                                           Remarks
                                               N·m    kgf·m     ft·lb
 1     Air Cleaner Housing Assembly Screws      1.1    0.11    10 in·lb
 2     Air Cleaner Housing Plate Screws         1.1    0.11    10 in·lb
 3     Air Cleaner Housing Bolt                 6.9    0.70    61 in·lb
 4     Throttle Body Assy Holder Clamp Bolts    2.9    0.30    26 in·lb
 5     Delivery Pipe Assy Mounting Screws      3.43    0.35    30 in·lb
 6     Air Cleaner Housing Clamp Bolts          2.0    0.20    18 in·lb
 7. Immobilizer System Equipped Models
CL: Apply cable lubricant.
EO: Apply engine oil.
 G: Apply grease.
 R: Replacement Parts
