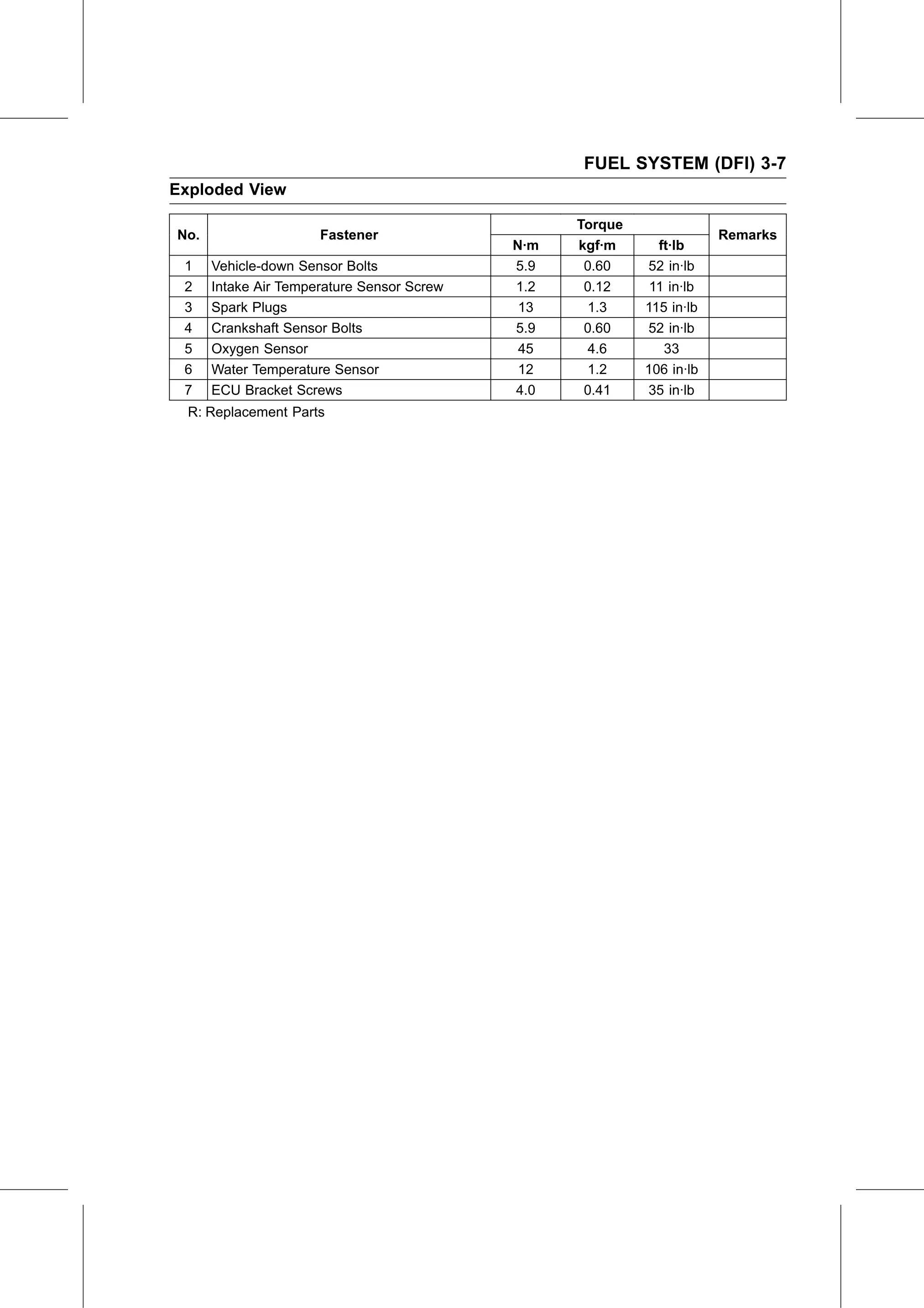

FUEL SYSTEM (DFI) 3-7
Exploded View

                                                  Torque
No.                   Fastener                                         Remarks
                                            N·m   kgf·m      ft·lb
 1    Vehicle-down Sensor Bolts             5.9    0.60    52 in·lb
 2    Intake Air Temperature Sensor Screw   1.2    0.12     11 in·lb
 3    Spark Plugs                            13    1.3     115 in·lb
 4    Crankshaft Sensor Bolts               5.9    0.60    52 in·lb
 5    Oxygen Sensor                          45    4.6        33
 6    Water Temperature Sensor               12    1.2     106 in·lb
 7    ECU Bracket Screws                    4.0    0.41    35 in·lb
  R: Replacement Parts
