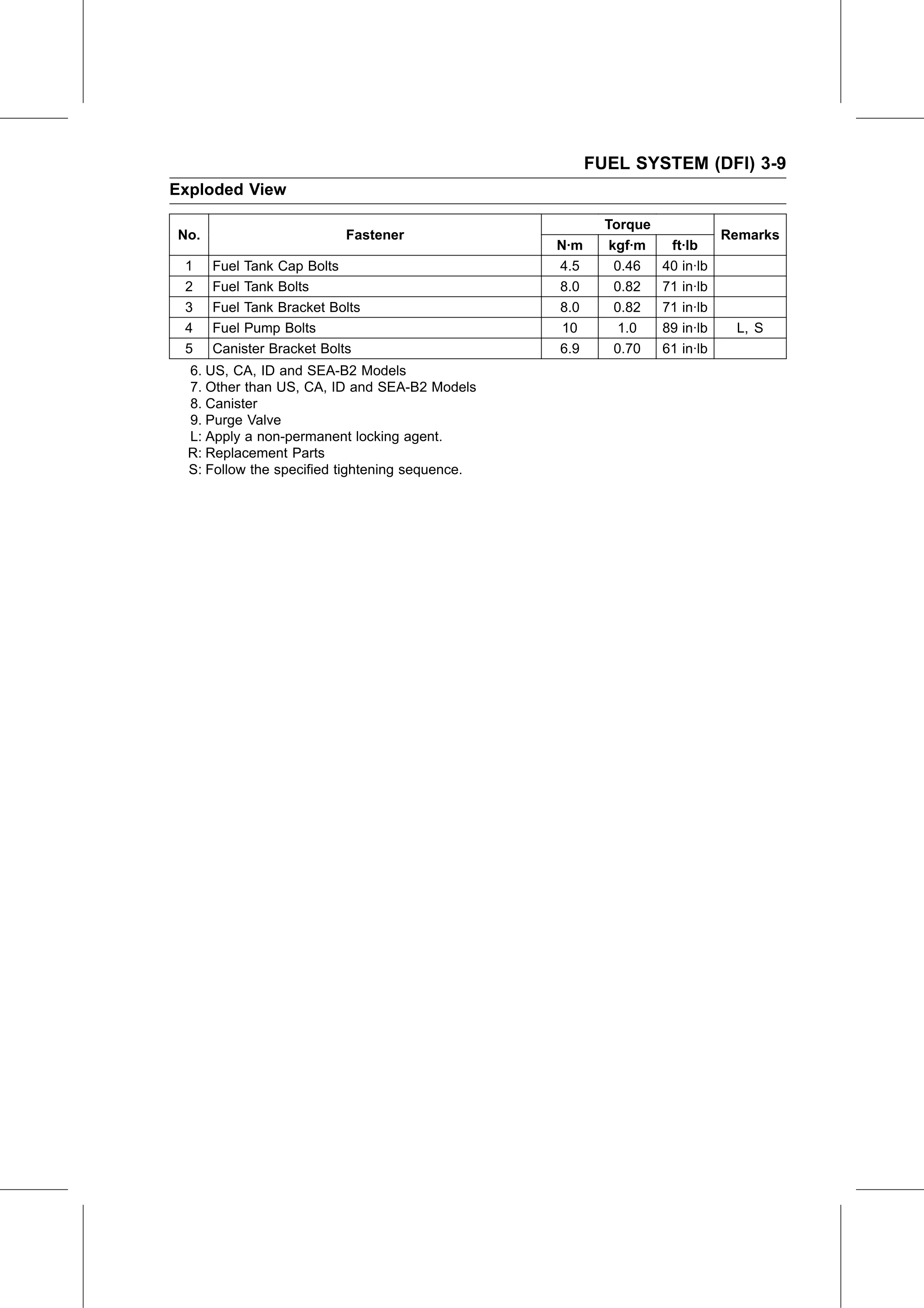

FUEL SYSTEM (DFI) 3-9
Exploded View

                                                         Torque
No.                       Fastener                                           Remarks
                                                 N·m      kgf·m    ft·lb
 1    Fuel Tank Cap Bolts                        4.5       0.46   40 in·lb
 2    Fuel Tank Bolts                            8.0       0.82   71 in·lb
 3    Fuel Tank Bracket Bolts                    8.0       0.82   71 in·lb
 4    Fuel Pump Bolts                             10        1.0   89 in·lb    L, S
 5    Canister Bracket Bolts                     6.9       0.70   61 in·lb
  6. US, CA, ID and SEA-B2 Models
  7. Other than US, CA, ID and SEA-B2 Models
  8. Canister
  9. Purge Valve
  L: Apply a non-permanent locking agent.
  R: Replacement Parts
  S: Follow the specified tightening sequence.
