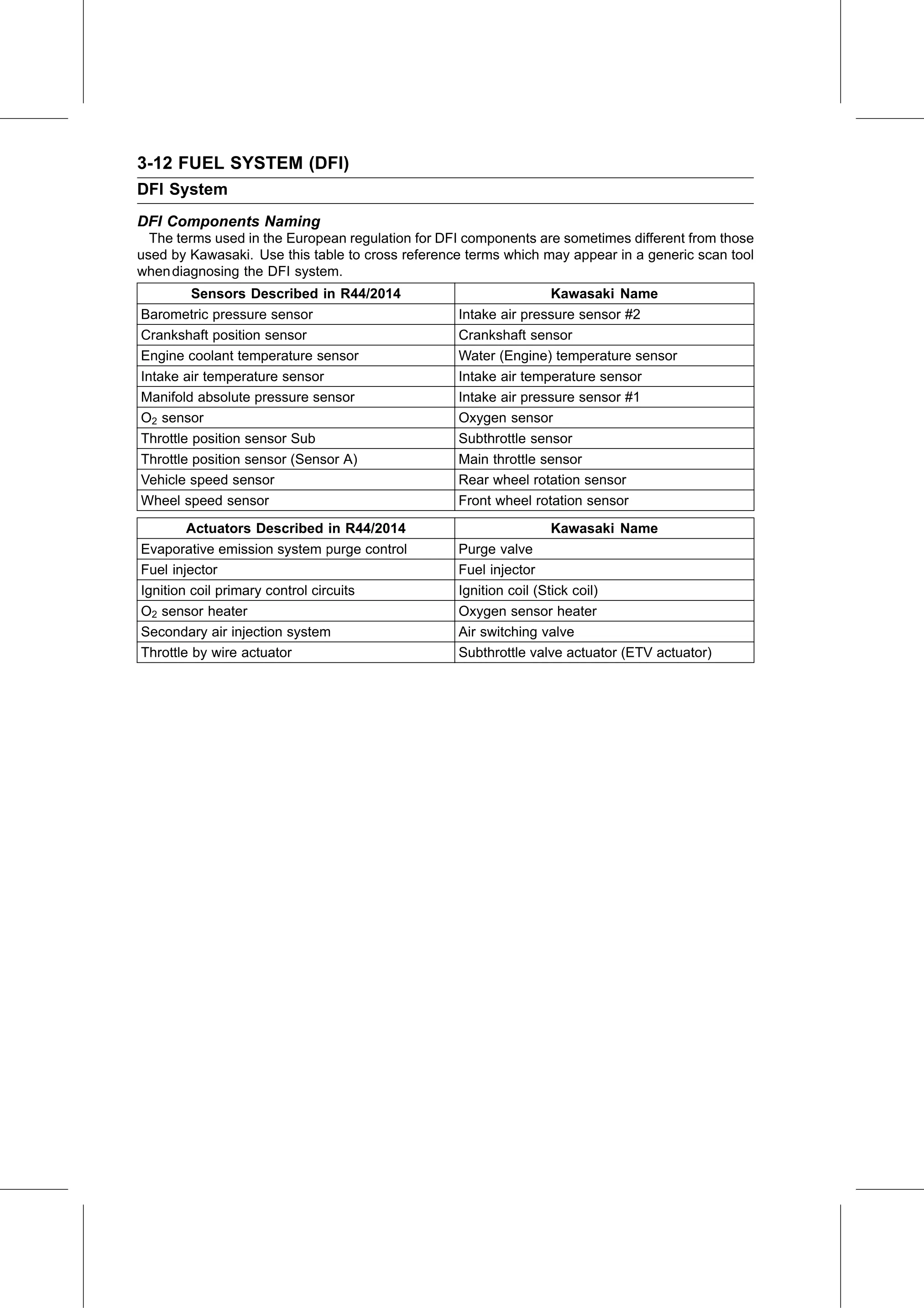

3-12 FUEL SYSTEM (DFI)
DFI System
DFI Components Naming
  The terms used in the European regulation for DFI components are sometimes different from those
used by Kawasaki. Use this table to cross reference terms which may appear in a generic scan tool
when diagnosing the DFI system.
         Sensors Described in R44/2014                           Kawasaki Name
Barometric pressure sensor                        Intake air pressure sensor #2
Crankshaft position sensor                        Crankshaft sensor
Engine coolant temperature sensor                 Water (Engine) temperature sensor
Intake air temperature sensor                     Intake air temperature sensor
Manifold absolute pressure sensor                 Intake air pressure sensor #1
O2 sensor                                         Oxygen sensor
Throttle position sensor Sub                      Subthrottle sensor
Throttle position sensor (Sensor A)               Main throttle sensor
Vehicle speed sensor                              Rear wheel rotation sensor
Wheel speed sensor                                Front wheel rotation sensor

        Actuators Described in R44/2014                          Kawasaki Name
Evaporative emission system purge control         Purge valve
Fuel injector                                     Fuel injector
Ignition coil primary control circuits            Ignition coil (Stick coil)
O2 sensor heater                                  Oxygen sensor heater
Secondary air injection system                    Air switching valve
Throttle by wire actuator                         Subthrottle valve actuator (ETV actuator)
