FUEL SYSTEM (DFI) 3-19

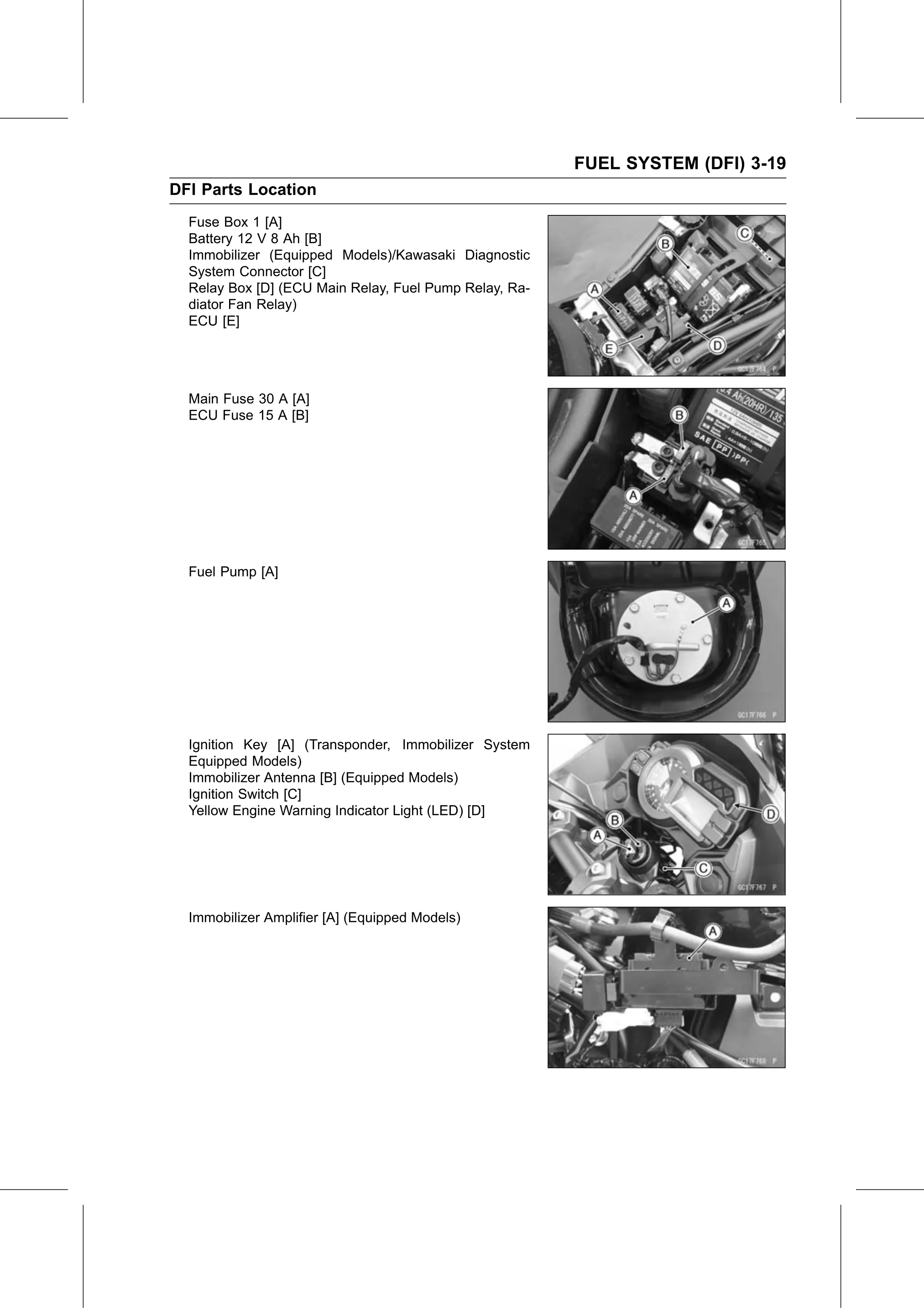

DFI Parts Location
  Fuse Box 1 [A]
  Battery 12 V 8 Ah [B]
  Immobilizer (Equipped Models)/Kawasaki Diagnostic
  System Connector [C]
  Relay Box [D] (ECU Main Relay, Fuel Pump Relay, Ra-
  diator Fan Relay)
  ECU [E]

  Main Fuse 30 A [A]
  ECU Fuse 15 A [B]

  Fuel Pump [A]

  Ignition Key [A] (Transponder, Immobilizer System
  Equipped Models)
  Immobilizer Antenna [B] (Equipped Models)
  Ignition Switch [C]
  Yellow Engine Warning Indicator Light (LED) [D]

  Immobilizer Amplifier [A] (Equipped Models)
