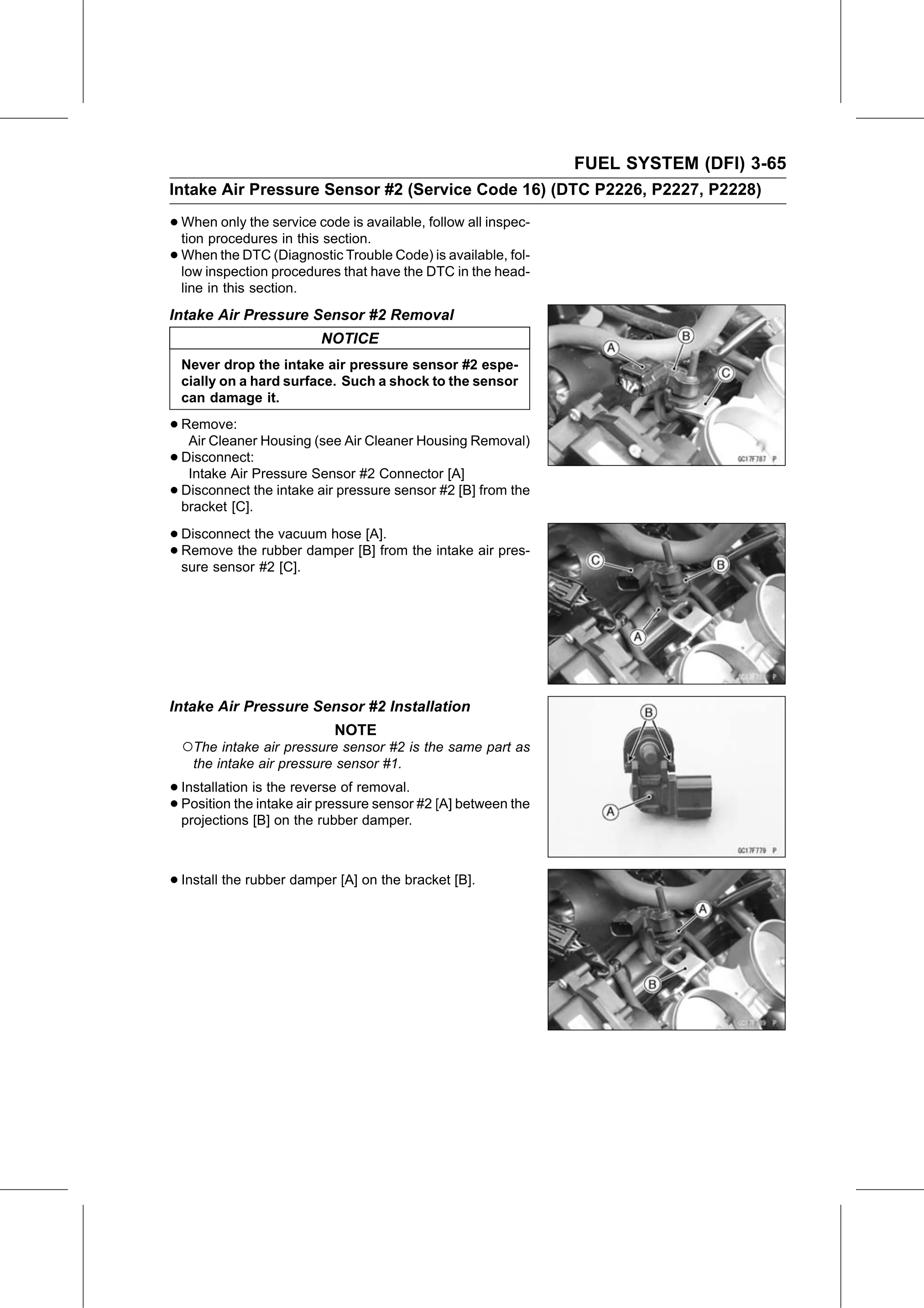

FUEL SYSTEM (DFI) 3-65
Intake Air Pressure Sensor #2 (Service Code 16) (DTC P2226, P2227, P2228)

• When   only the service code is available, follow all inspec-
  tion procedures in this section.
• When   the DTC (Diagnostic Trouble Code) is available, fol-
  low inspection procedures that have the DTC in the head-
  line in this section.
Intake Air Pressure Sensor #2 Removal
                          NOTICE
  Never drop the intake air pressure sensor #2 espe-
  cially on a hard surface. Such a shock to the sensor
  can damage it.

• Remove:
   Air Cleaner Housing (see Air Cleaner Housing Removal)
• Disconnect:
   Intake Air Pressure Sensor #2 Connector [A]
• bracket [C].the intake air pressure sensor #2 [B] from the
  Disconnect

• Disconnect the vacuum hose [A].
• sure sensor #2rubber
  Remove  the
                   [C].
                        damper [B] from the intake air pres-

Intake Air Pressure Sensor #2 Installation
                            NOTE
  ○The intake air pressure sensor #2 is the same part as
    the intake air pressure sensor #1.

• Installation is the reverse of removal.
• projections [B]
  Position  the intake air pressure sensor #2 [A] between the
                   on the rubber damper.

• Install the rubber damper [A] on the bracket [B].
