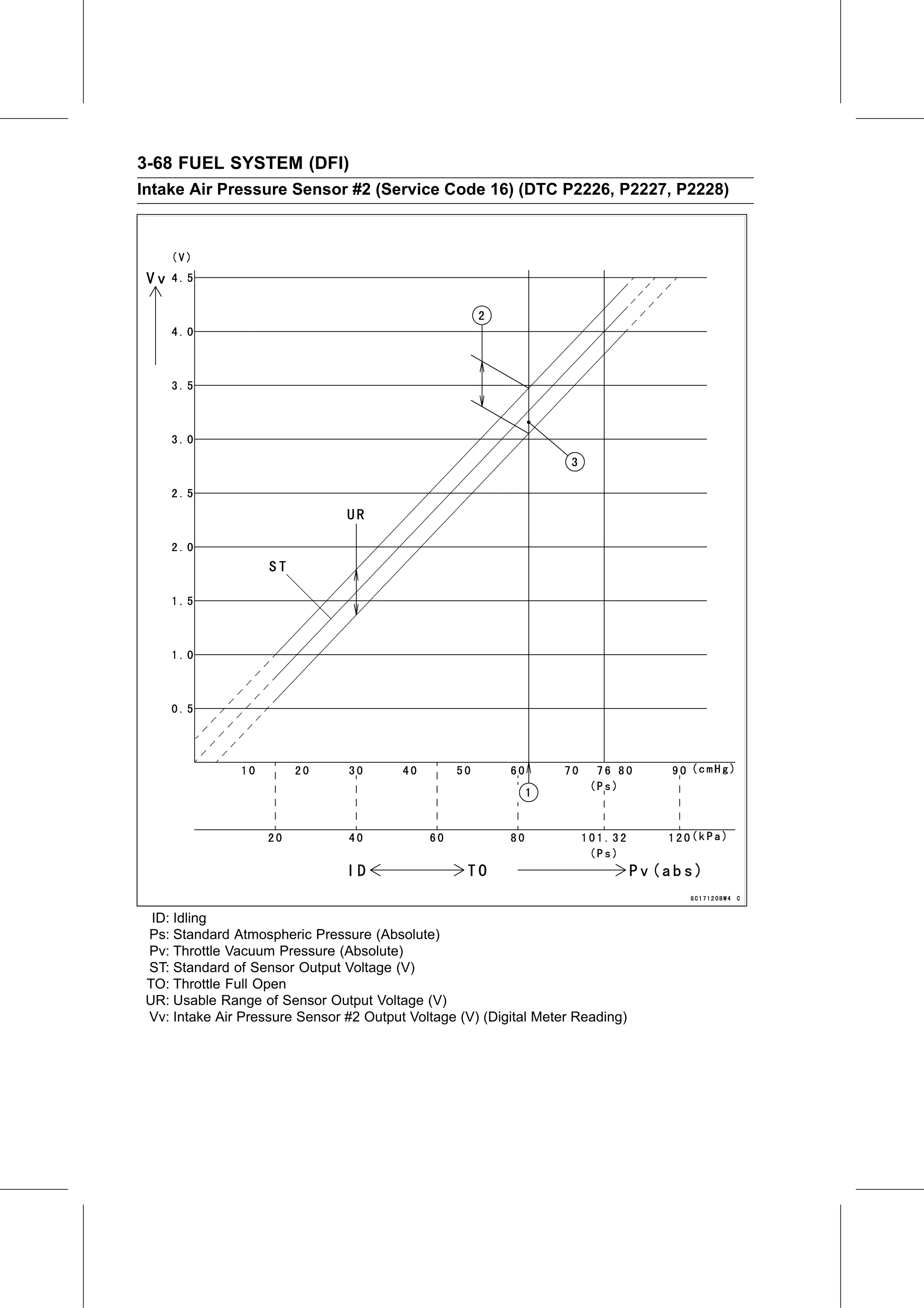

3-68 FUEL SYSTEM (DFI)
Intake Air Pressure Sensor #2 (Service Code 16) (DTC P2226, P2227, P2228)

  ID: Idling
 Ps: Standard Atmospheric Pressure (Absolute)
 Pv: Throttle Vacuum Pressure (Absolute)
 ST: Standard of Sensor Output Voltage (V)
 TO: Throttle Full Open
 UR: Usable Range of Sensor Output Voltage (V)
 Vv: Intake Air Pressure Sensor #2 Output Voltage (V) (Digital Meter Reading)
