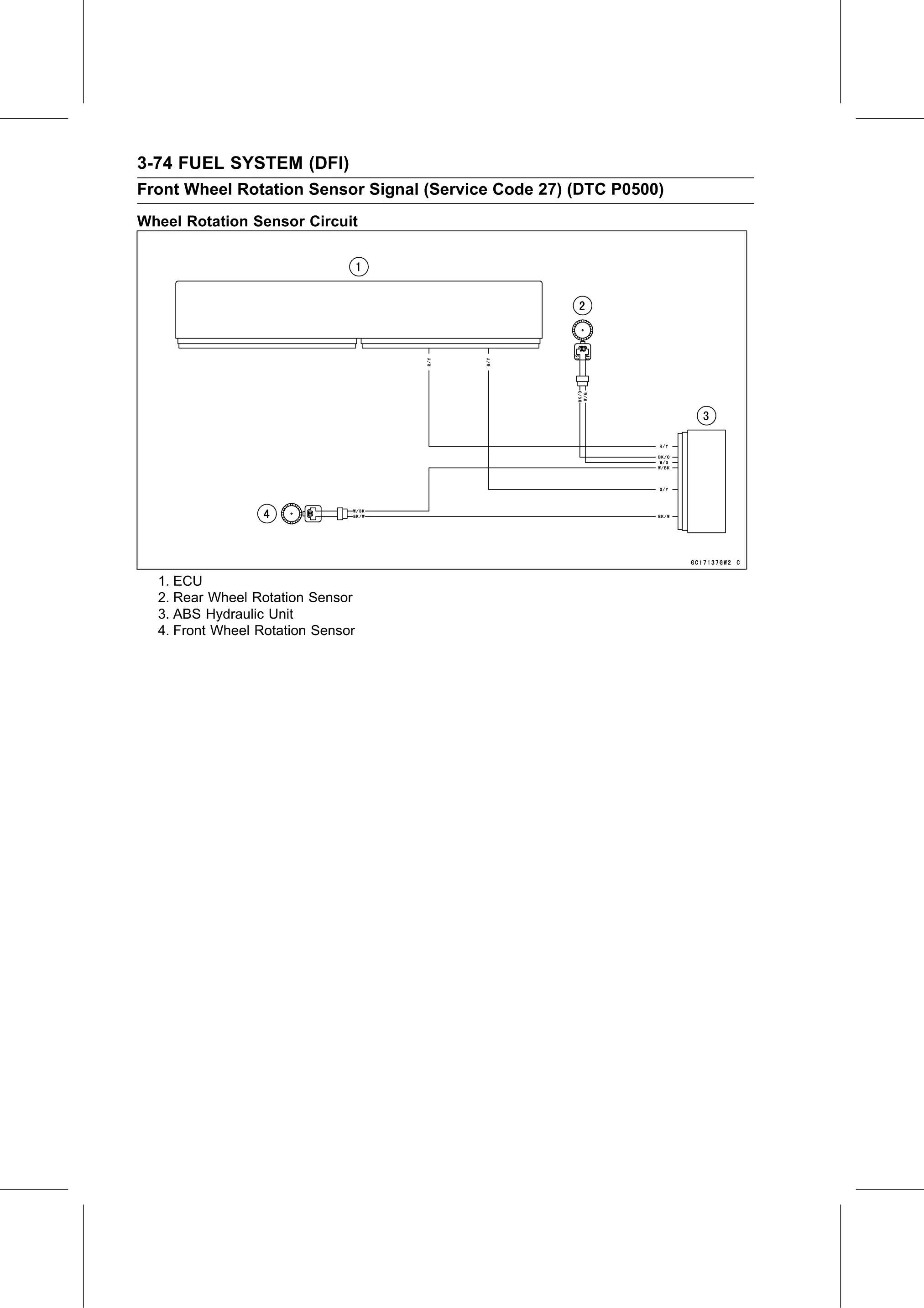

3-74 FUEL SYSTEM (DFI)
Front Wheel Rotation Sensor Signal (Service Code 27) (DTC P0500)
Wheel Rotation Sensor Circuit

  1. ECU
  2. Rear Wheel Rotation Sensor
  3. ABS Hydraulic Unit
  4. Front Wheel Rotation Sensor
