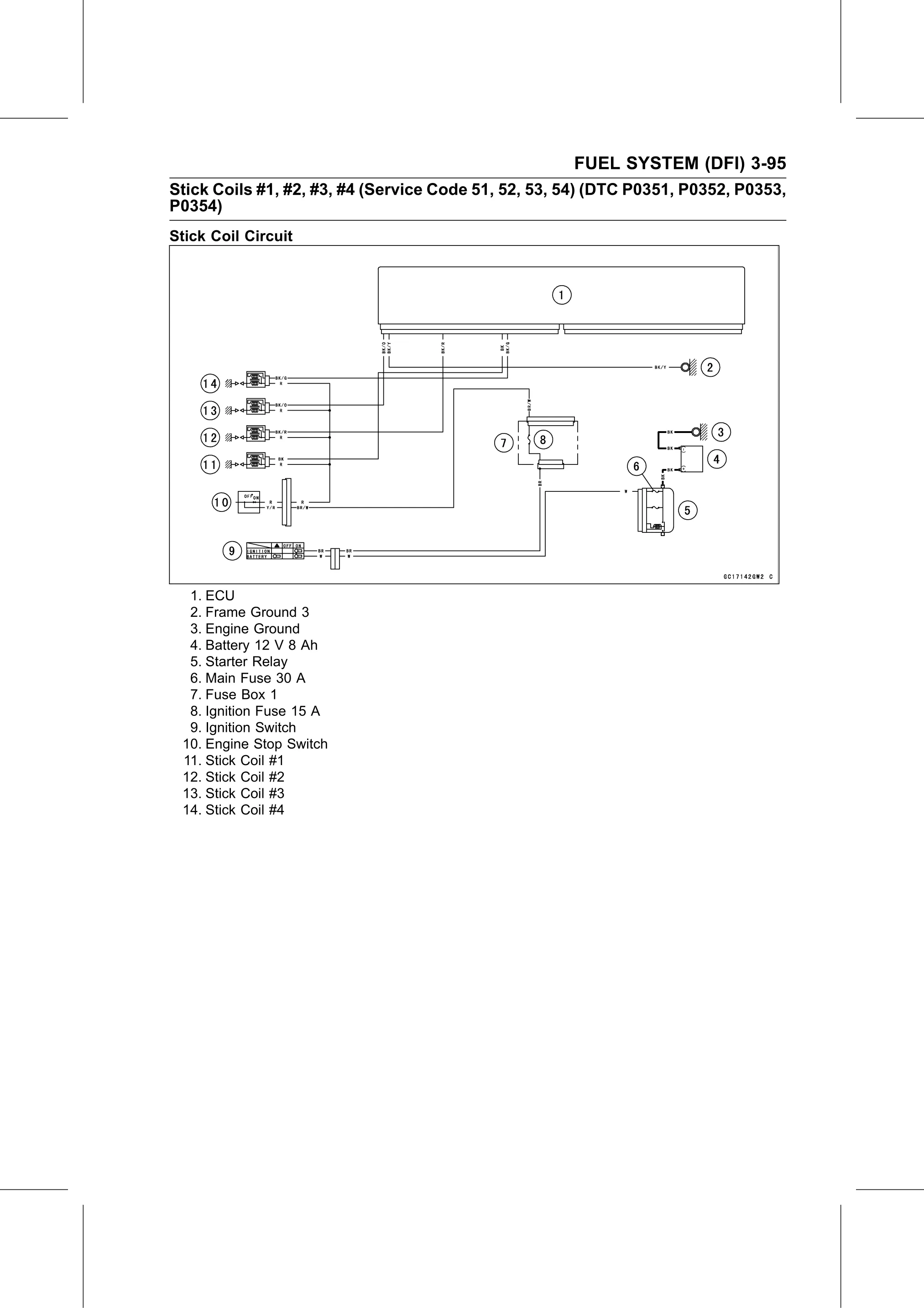

FUEL SYSTEM (DFI) 3-95
Stick Coils #1, #2, #3, #4 (Service Code 51, 52, 53, 54) (DTC P0351, P0352, P0353,
P0354)
Stick Coil Circuit

  1. ECU
  2. Frame Ground 3
  3. Engine Ground
  4. Battery 12 V 8 Ah
  5. Starter Relay
  6. Main Fuse 30 A
  7. Fuse Box 1
  8. Ignition Fuse 15 A
  9. Ignition Switch
 10. Engine Stop Switch
 11. Stick Coil #1
 12. Stick Coil #2
 13. Stick Coil #3
 14. Stick Coil #4
