3-110 FUEL SYSTEM (DFI)
ECU

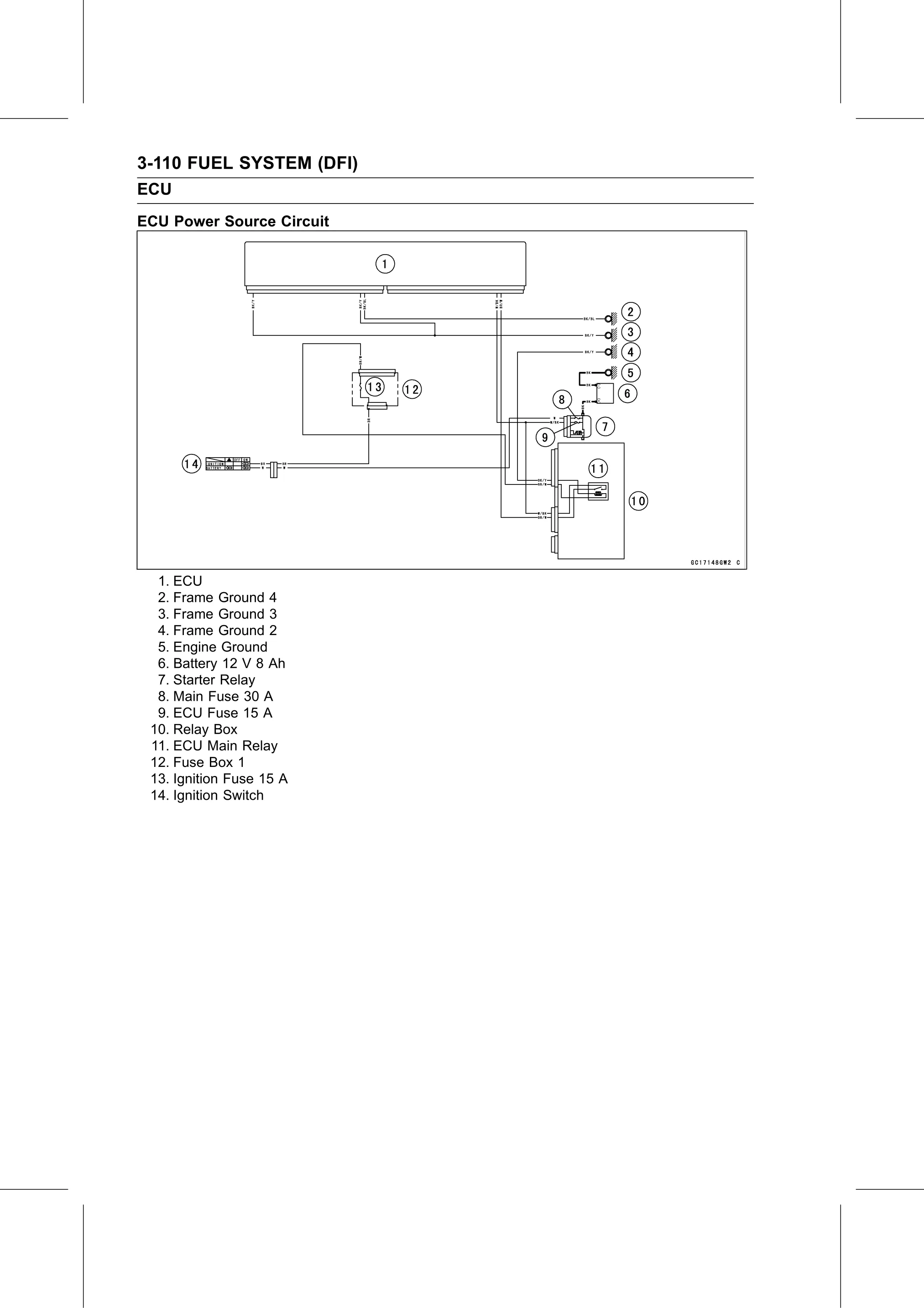

ECU Power Source Circuit

  1. ECU
  2. Frame Ground 4
  3. Frame Ground 3
  4. Frame Ground 2
  5. Engine Ground
  6. Battery 12 V 8 Ah
  7. Starter Relay
  8. Main Fuse 30 A
  9. ECU Fuse 15 A
 10. Relay Box
 11. ECU Main Relay
 12. Fuse Box 1
 13. Ignition Fuse 15 A
 14. Ignition Switch
