3-120 FUEL SYSTEM (DFI)
Fuel Pump

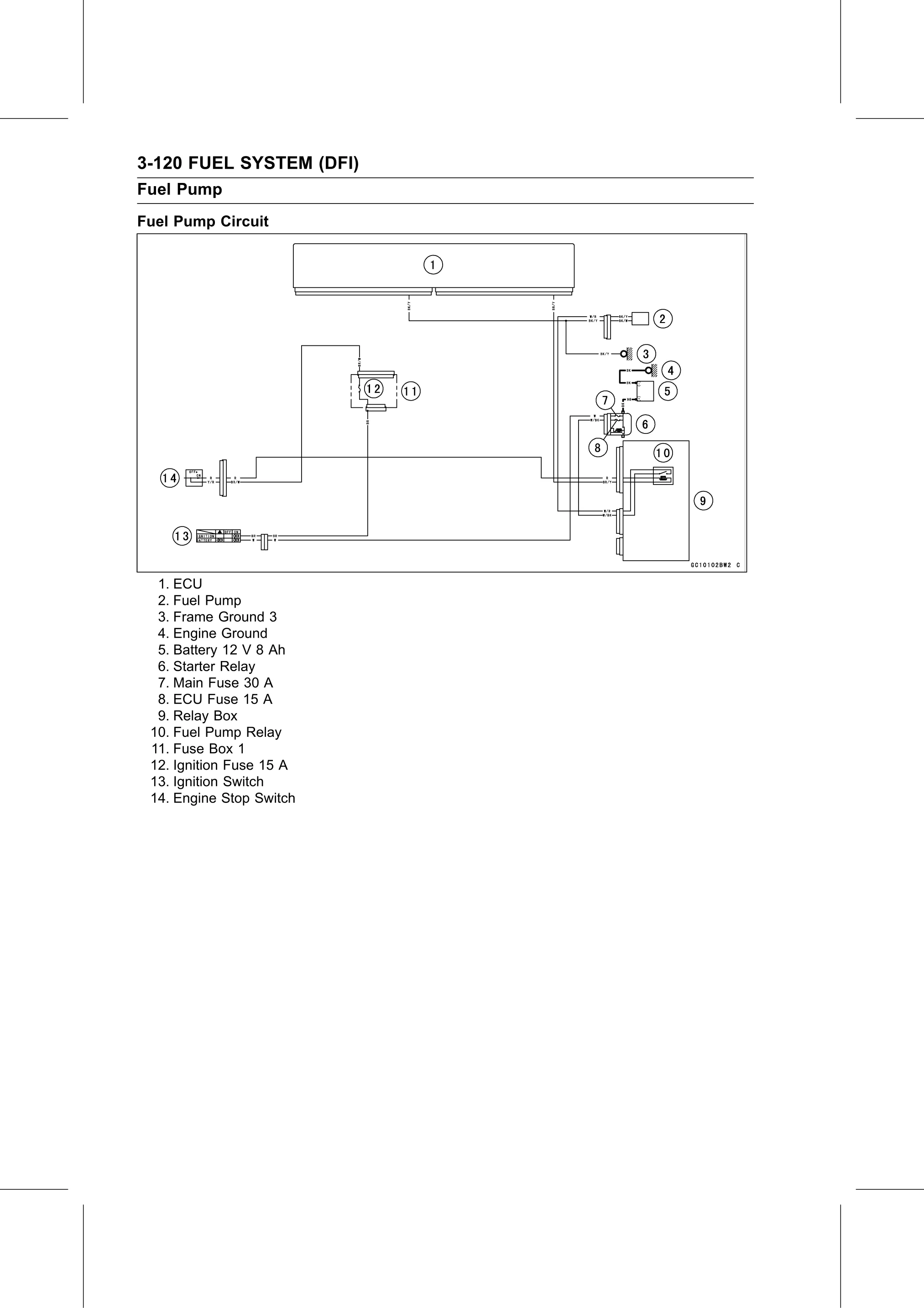

Fuel Pump Circuit

  1. ECU
  2. Fuel Pump
  3. Frame Ground 3
  4. Engine Ground
  5. Battery 12 V 8 Ah
  6. Starter Relay
  7. Main Fuse 30 A
  8. ECU Fuse 15 A
  9. Relay Box
 10. Fuel Pump Relay
 11. Fuse Box 1
 12. Ignition Fuse 15 A
 13. Ignition Switch
 14. Engine Stop Switch
