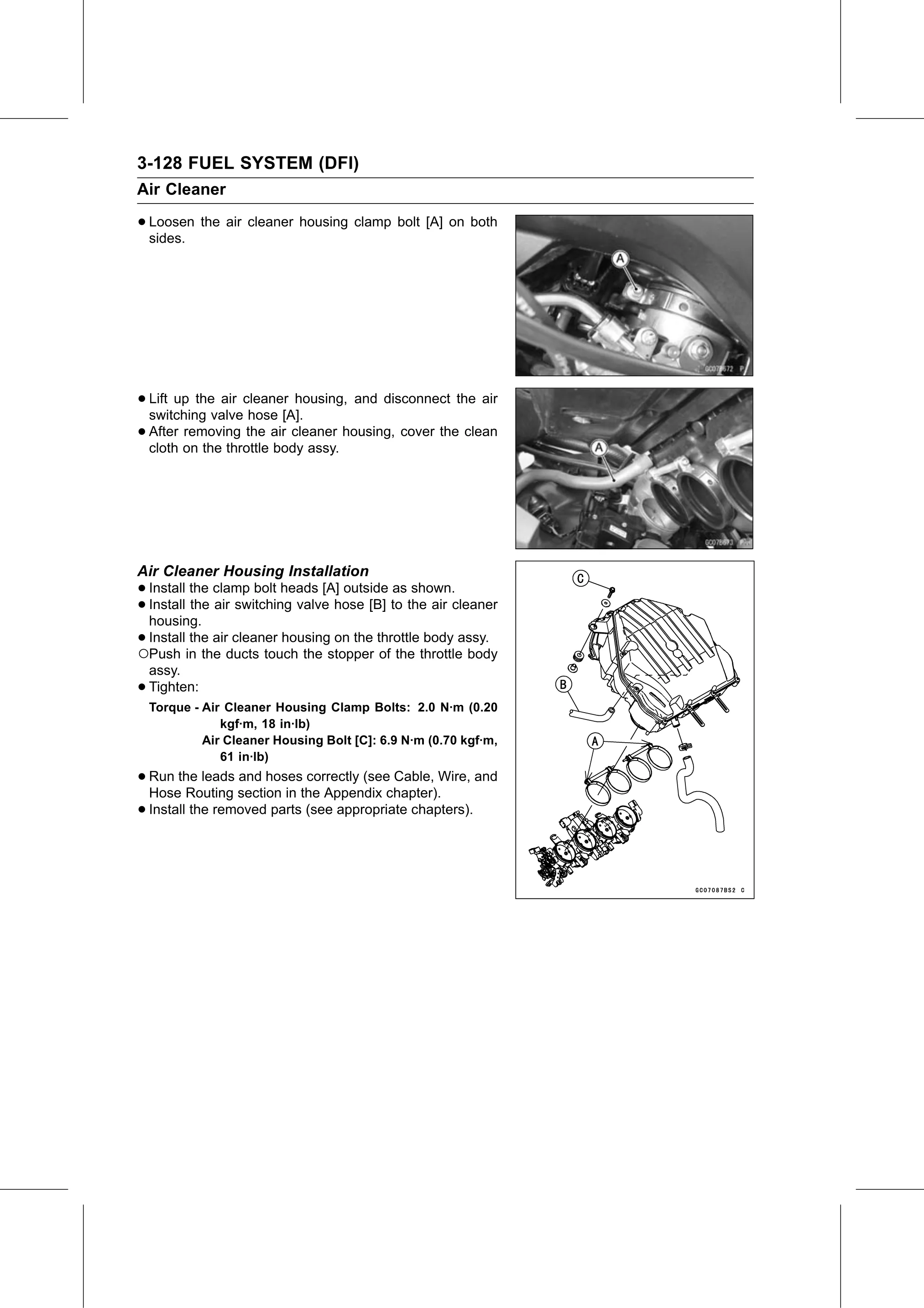

3-128 FUEL SYSTEM (DFI)
Air Cleaner

• Loosen
  sides.
         the air cleaner housing clamp bolt [A] on both

• Lift up the air cleaner housing, and disconnect the air
  switching valve hose [A].
• After removing the air cleaner housing, cover the clean
  cloth on the throttle body assy.

Air Cleaner Housing Installation
• Install the clamp bolt heads [A] outside as shown.
• Install
  housing.
          the air switching valve hose [B] to the air cleaner

•○Install the air cleaner housing on the throttle body assy.
  Push in the ducts touch the stopper of the throttle body
    assy.
•   Tighten:
    Torque - Air Cleaner Housing Clamp Bolts: 2.0 N·m (0.20
                kgf·m, 18 in·lb)
             Air Cleaner Housing Bolt [C]: 6.9 N·m (0.70 kgf·m,
                61 in·lb)
• Run  the leads and hoses correctly (see Cable, Wire, and
  Hose Routing section in the Appendix chapter).
• Install the removed parts (see appropriate chapters).
