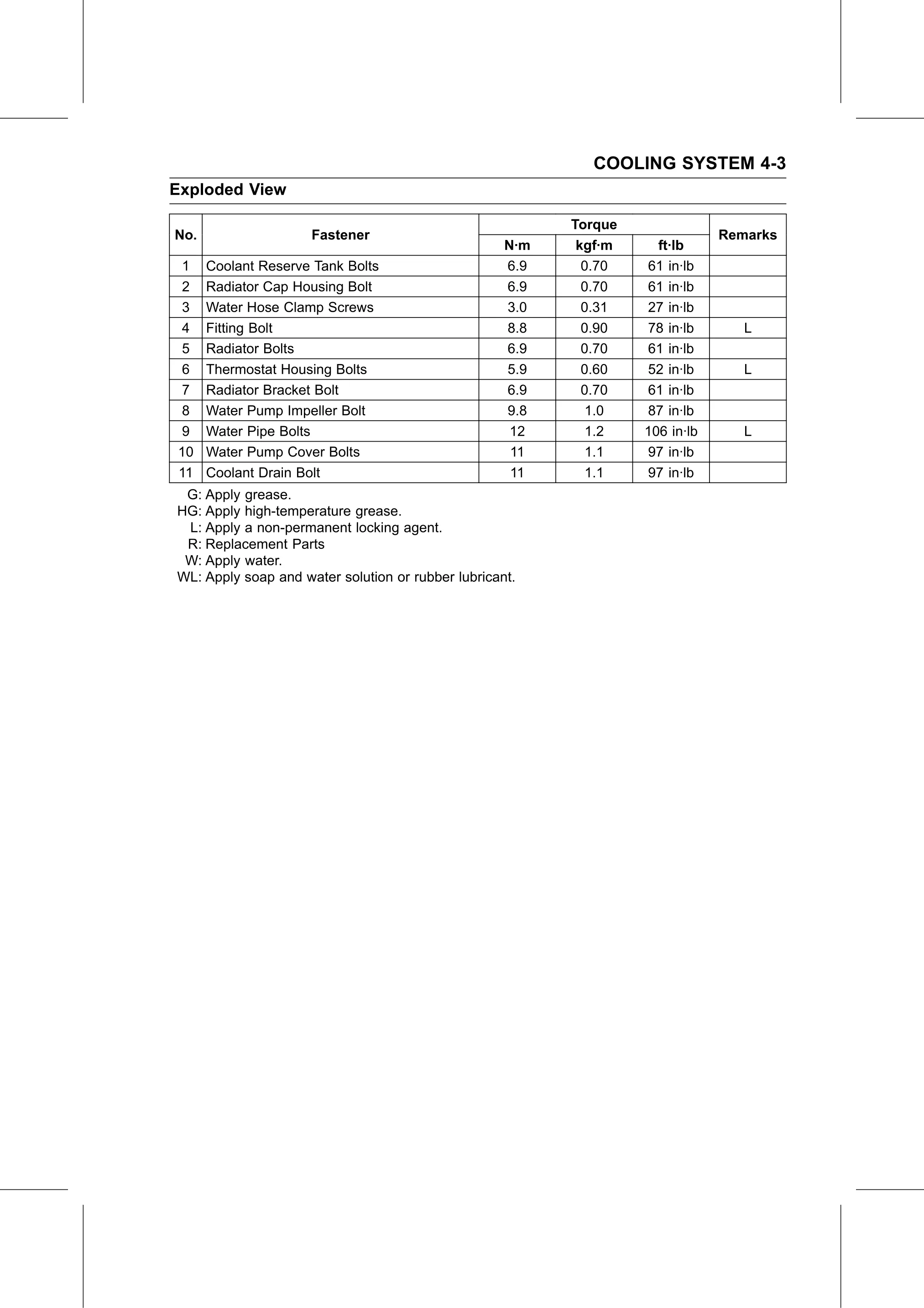

COOLING SYSTEM 4-3
Exploded View

                                                          Torque
No.                  Fastener                                                  Remarks
                                                    N·m    kgf·m     ft·lb
 1    Coolant Reserve Tank Bolts                    6.9     0.70   61 in·lb
 2    Radiator Cap Housing Bolt                     6.9     0.70   61 in·lb
 3    Water Hose Clamp Screws                       3.0     0.31   27 in·lb
 4    Fitting Bolt                                  8.8     0.90   78 in·lb       L
 5    Radiator Bolts                                6.9     0.70   61 in·lb
 6    Thermostat Housing Bolts                      5.9     0.60   52 in·lb       L
 7    Radiator Bracket Bolt                         6.9     0.70   61 in·lb
 8    Water Pump Impeller Bolt                      9.8      1.0   87 in·lb
 9    Water Pipe Bolts                               12      1.2   106 in·lb      L
10    Water Pump Cover Bolts                         11      1.1   97 in·lb
11    Coolant Drain Bolt                             11      1.1   97 in·lb
 G: Apply grease.
HG: Apply high-temperature grease.
 L: Apply a non-permanent locking agent.
 R: Replacement Parts
 W: Apply water.
WL: Apply soap and water solution or rubber lubricant.
