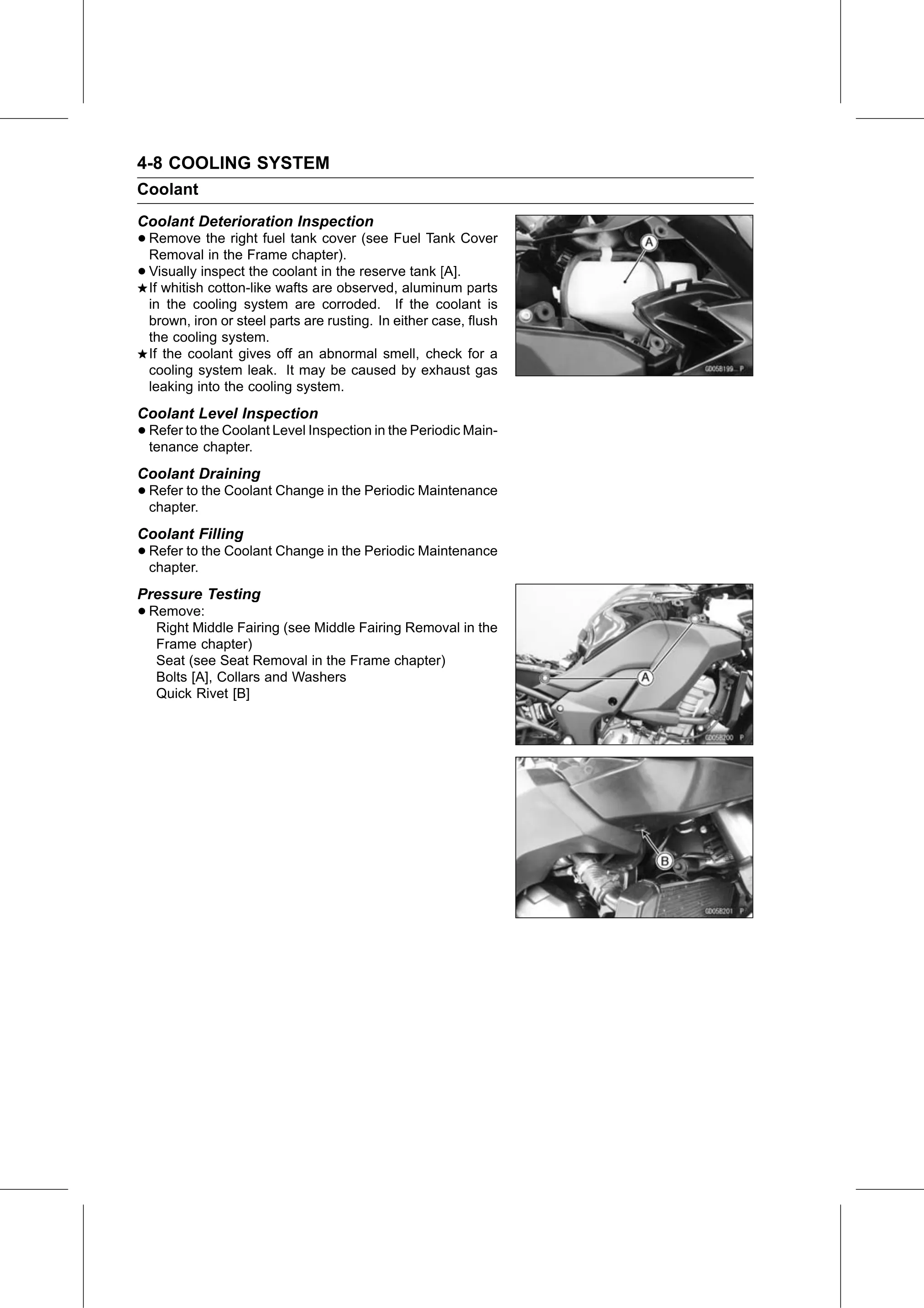

4-8 COOLING SYSTEM
Coolant
Coolant Deterioration Inspection
• Remove     the right fuel tank cover (see Fuel Tank Cover
  Removal in the Frame chapter).
• Visually  inspect the coolant in the reserve tank [A].
  If whitish cotton-like wafts are observed, aluminum parts
  in the cooling system are corroded. If the coolant is
  brown, iron or steel parts are rusting. In either case, flush
  the cooling system.
  If the coolant gives off an abnormal smell, check for a
  cooling system leak. It may be caused by exhaust gas
  leaking into the cooling system.
Coolant Level Inspection
• Refer to the Coolant Level Inspection in the Periodic Main-
  tenance chapter.
Coolant Draining
• Refer to the Coolant Change in the Periodic Maintenance
  chapter.
Coolant Filling
• Refer to the Coolant Change in the Periodic Maintenance
  chapter.
Pressure Testing
• Remove:
   Right Middle Fairing (see Middle Fairing Removal in the
   Frame chapter)
   Seat (see Seat Removal in the Frame chapter)
   Bolts [A], Collars and Washers
   Quick Rivet [B]
