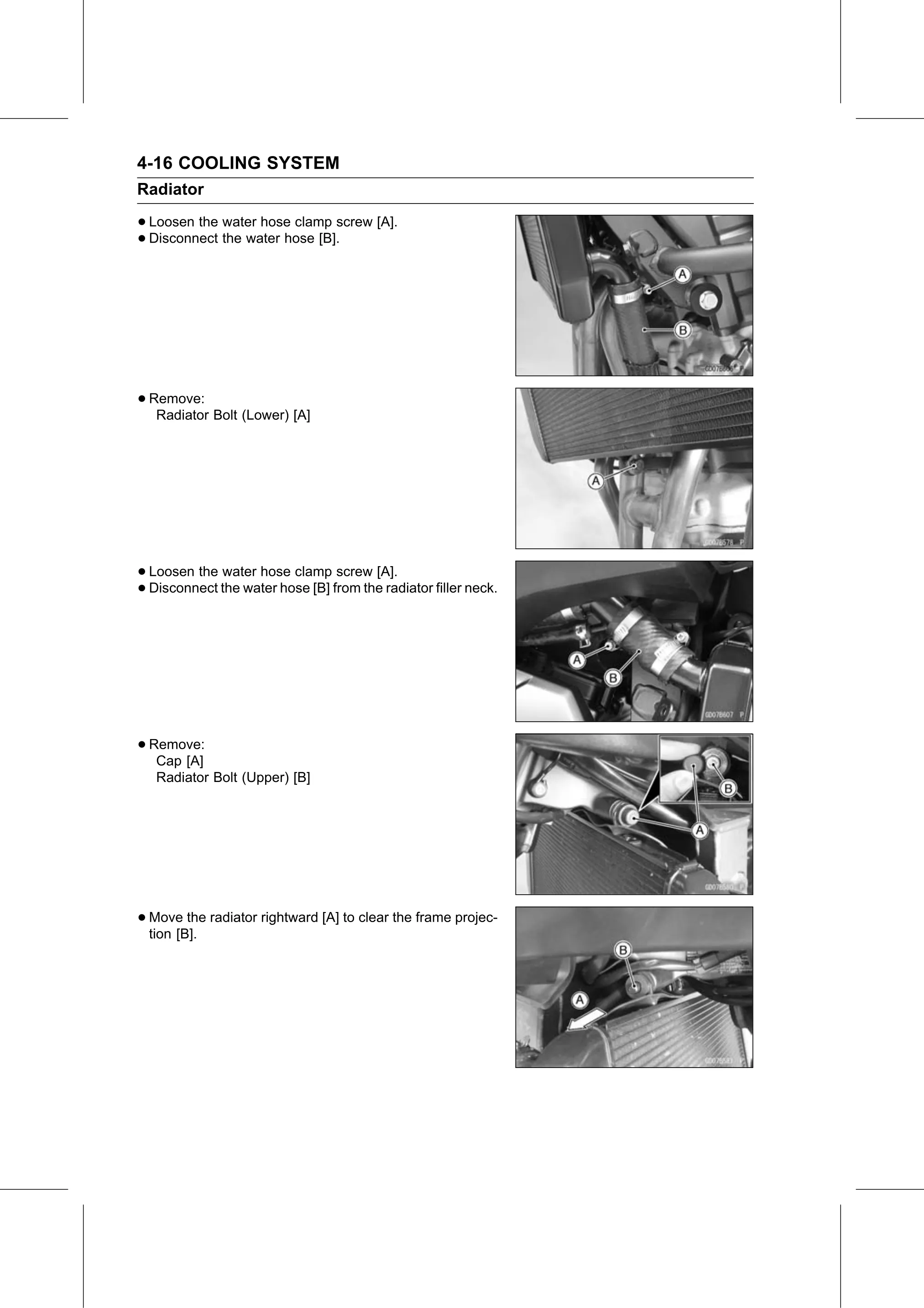

4-16 COOLING SYSTEM
Radiator

• Loosen the water hose clamp screw [A].
• Disconnect the water hose [B].

• Remove:
   Radiator Bolt (Lower) [A]

• Loosen the water hose clamp screw [A].
• Disconnect the water hose [B] from the radiator filler neck.

• Remove:
   Cap [A]
   Radiator Bolt (Upper) [B]

• Move   the radiator rightward [A] to clear the frame projec-
  tion [B].
