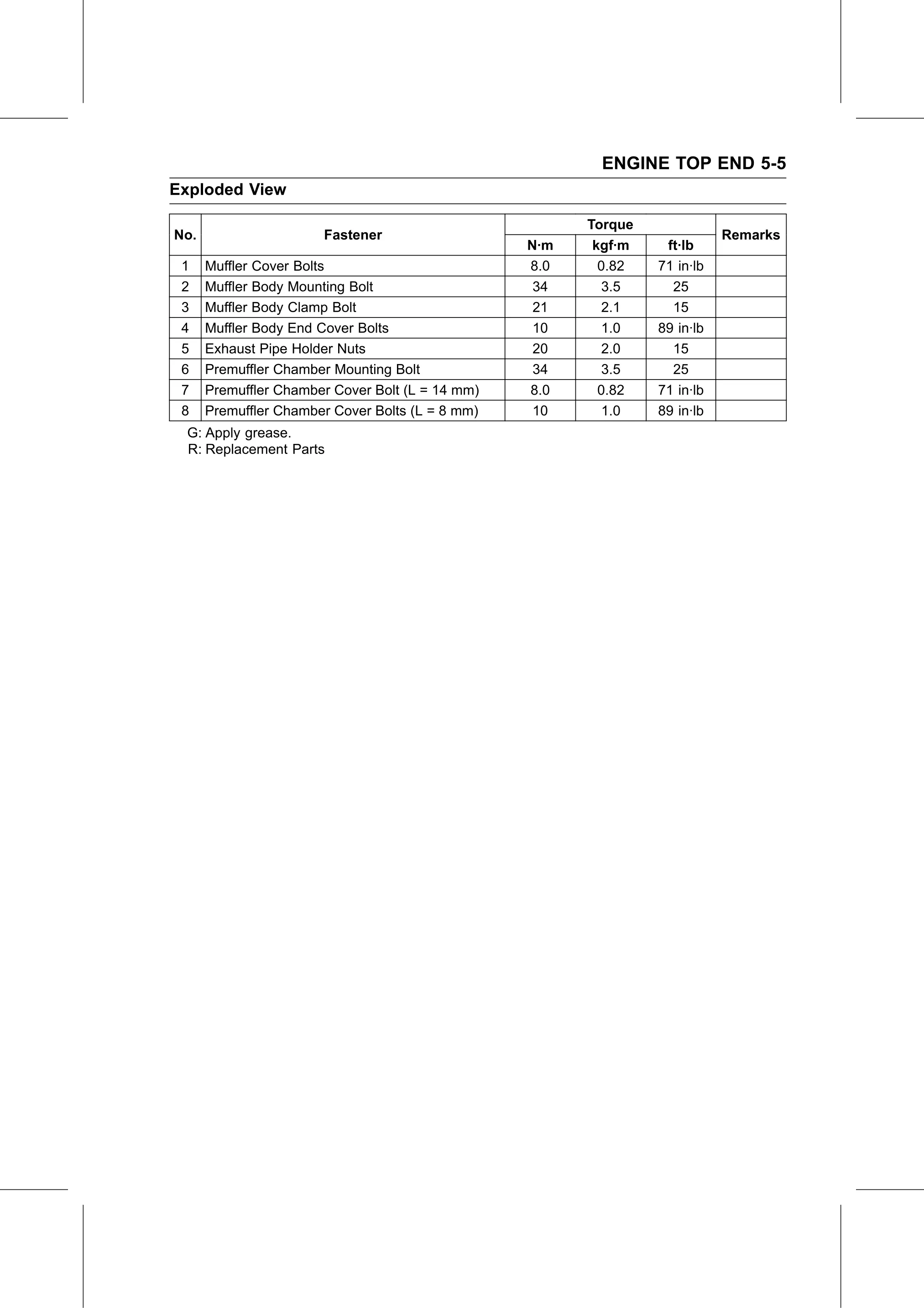

ENGINE TOP END 5-5
Exploded View

                                                        Torque
No.                    Fastener                                             Remarks
                                                  N·m    kgf·m    ft·lb
 1    Muffler Cover Bolts                         8.0     0.82   71 in·lb
 2    Muffler Body Mounting Bolt                   34      3.5     25
 3    Muffler Body Clamp Bolt                      21      2.1     15
 4    Muffler Body End Cover Bolts                 10      1.0   89 in·lb
 5    Exhaust Pipe Holder Nuts                     20      2.0     15
 6    Premuffler Chamber Mounting Bolt             34      3.5     25
 7    Premuffler Chamber Cover Bolt (L = 14 mm)   8.0     0.82   71 in·lb
 8    Premuffler Chamber Cover Bolts (L = 8 mm)    10      1.0   89 in·lb
 G: Apply grease.
 R: Replacement Parts
