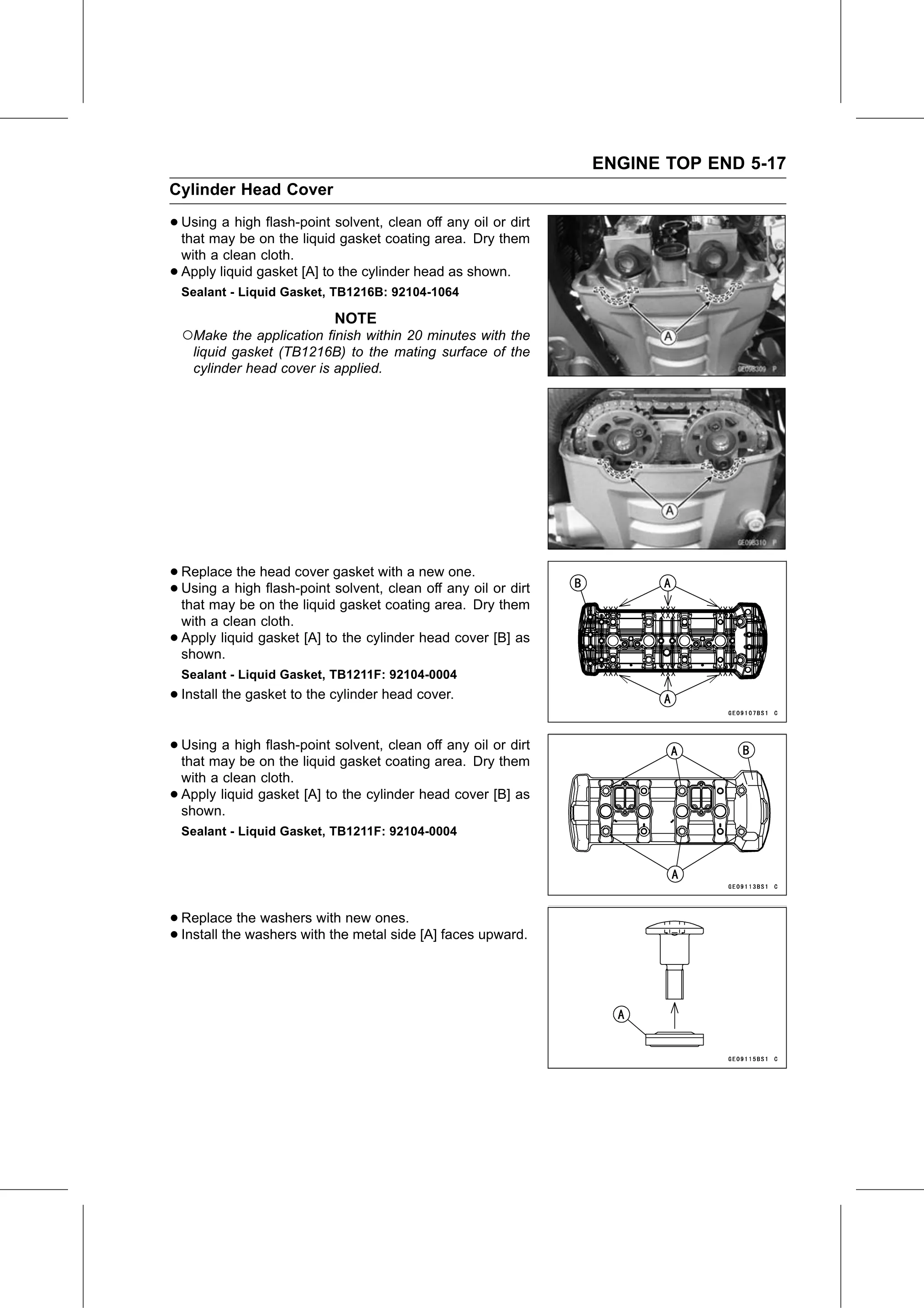

ENGINE TOP END 5-17
Cylinder Head Cover

• Using a high flash-point solvent, clean off any oil or dirt
  that may be on the liquid gasket coating area. Dry them
    with a clean cloth.
•   Apply liquid gasket [A] to the cylinder head as shown.
    Sealant - Liquid Gasket, TB1216B: 92104-1064

                             NOTE
    ○Make the application finish within 20 minutes with the
     liquid gasket (TB1216B) to the mating surface of the
     cylinder head cover is applied.

• Replace the head cover gasket with a new one.
• that may be onflash-point
  Using a high               solvent, clean off any oil or dirt
                   the liquid gasket coating area. Dry them
    with a clean cloth.
•   Apply liquid gasket [A] to the cylinder head cover [B] as
    shown.
    Sealant - Liquid Gasket, TB1211F: 92104-0004
• Install the gasket to the cylinder head cover.
• Using a high flash-point solvent, clean off any oil or dirt
  that may be on the liquid gasket coating area. Dry them
    with a clean cloth.
•   Apply liquid gasket [A] to the cylinder head cover [B] as
    shown.
    Sealant - Liquid Gasket, TB1211F: 92104-0004

• Replace   the washers with new ones.
• Install the washers with the metal side [A] faces upward.
