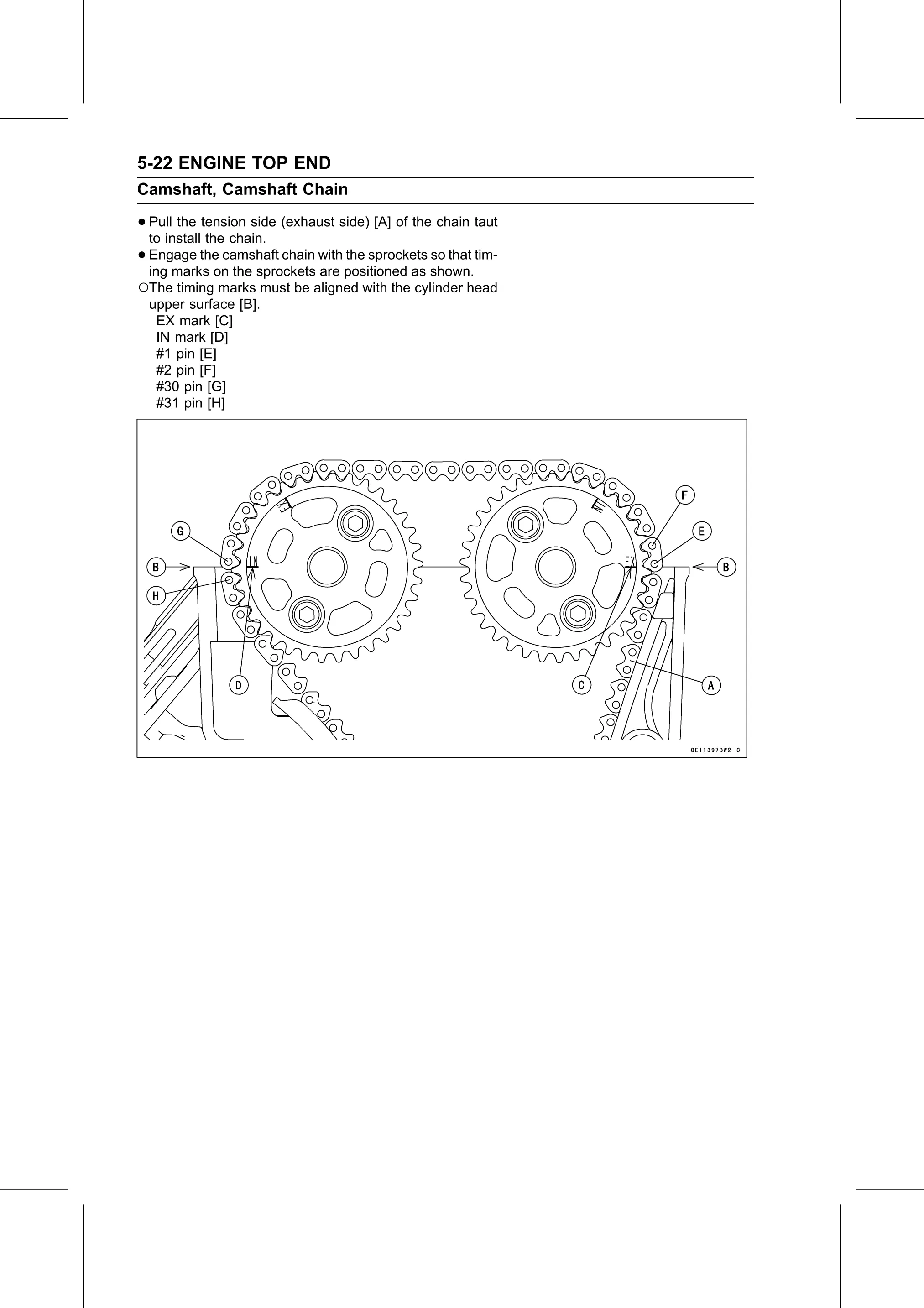

5-22 ENGINE TOP END
Camshaft, Camshaft Chain

• Pull the tension side (exhaust side) [A] of the chain taut
  to install the chain.
• Engage    the camshaft chain with the sprockets so that tim-
  ing marks on the sprockets are positioned as shown.
○The timing marks must be aligned with the cylinder head
  upper surface [B].
   EX mark [C]
   IN mark [D]
   #1 pin [E]
   #2 pin [F]
   #30 pin [G]
   #31 pin [H]
