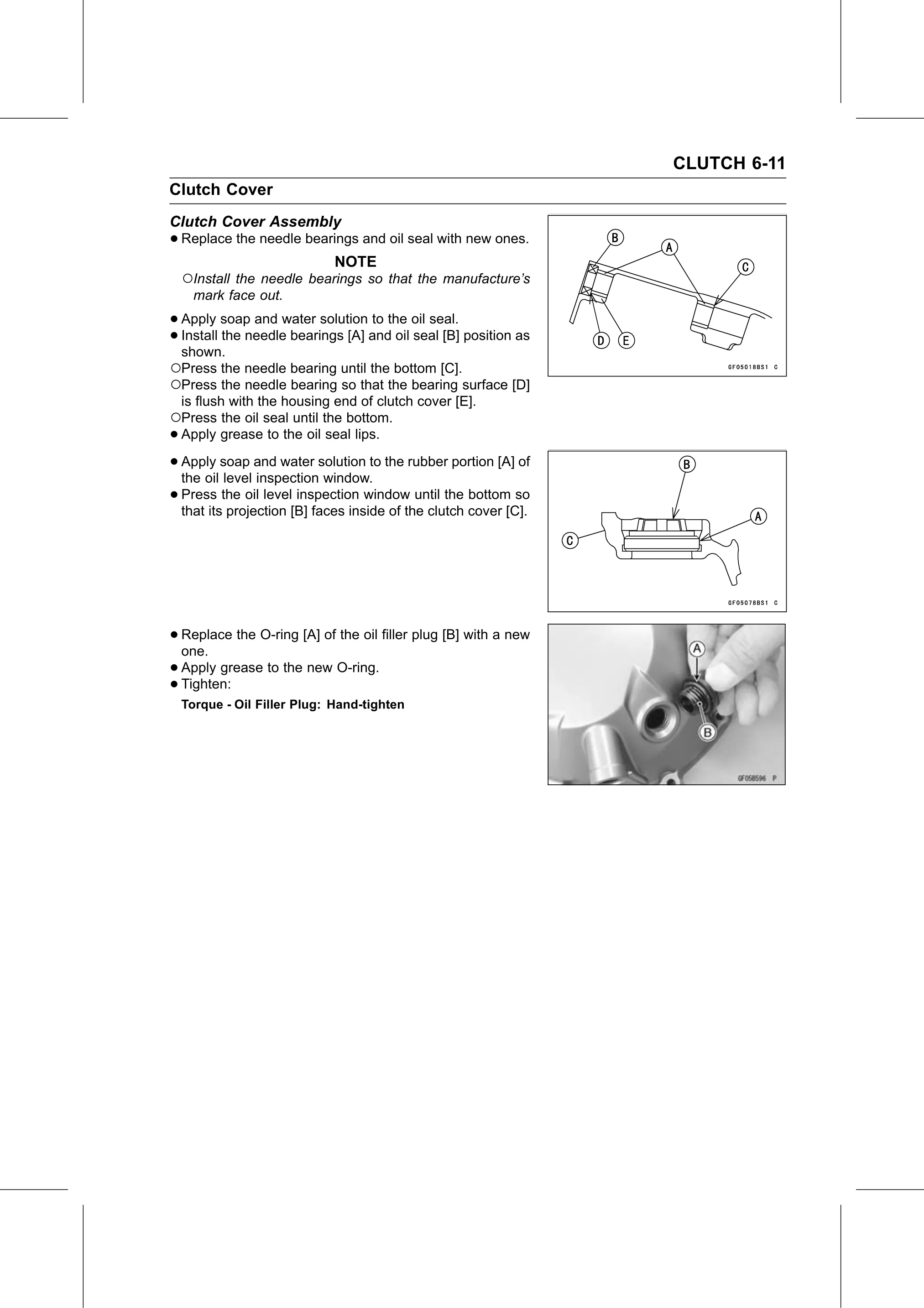

CLUTCH 6-11
Clutch Cover
Clutch Cover Assembly
• Replace the needle bearings and oil seal with new ones.
                            NOTE
  ○Install the needle bearings so that the manufacture’s
   mark face out.

• Apply   soap and water solution to the oil seal.
• Install
  shown.
          the needle bearings [A] and oil seal [B] position as

○Press the needle bearing until the bottom [C].
○Press the needle bearing so that the bearing surface [D]
  is flush with the housing end of clutch cover [E].
○Press the oil seal until the bottom.
• Apply grease to the oil seal lips.
• Apply   soap and water solution to the rubber portion [A] of
  the oil level inspection window.
• Press   the oil level inspection window until the bottom so
  that its projection [B] faces inside of the clutch cover [C].

• Replace
  one.
           the O-ring [A] of the oil filler plug [B] with a new

• Apply grease to the new O-ring.
• Tighten:
  Torque - Oil Filler Plug: Hand-tighten
